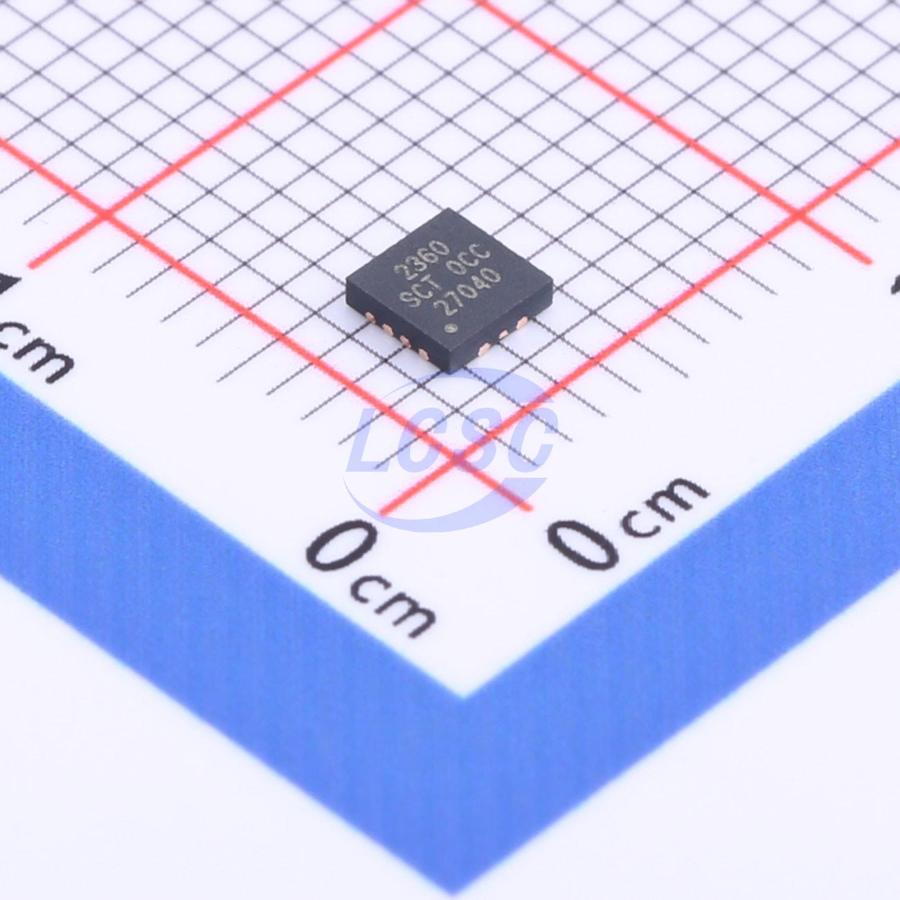

SCT2360FPBR

The SCT2360 is a high efficiency synchronous stepdown 6A DC-DC converter with 4V-28V input voltage range and adjustable output voltage down to 0.6V. The device fully integrates high-side and low-side power MOSFETs with 36mΩ/16mΩ on-resistance to minimize the conduction loss. The SCT2360 adopts a Constant On-Time (COT) control to provide fast transient response and easy loop stabilization. The switching clock frequency can be selected from 400KHz, 800KHz and 1.2MHz for optimization of the filter size and output voltage ripple. The device offers fixed 1ms soft start to prevent inrush current during the startup of output voltage ramping. Power Good with open drain output signals that the output voltage is within regulation. The SCT2360 has the MODE pin to select Pulse Frequency Modulation (PFM) operation mode to achieve the light load power save, or Ultrasonic Mode (USM) to keep the switching frequency above audible frequency areas during light-load or no-load conditions, or the PWM mode to achieve the small output ripple. Full protection includes over current protection, undervoltage protection, and thermal shutdown. The converter requires a minimum number of external components and is available in a QFN-12 (3mmx3mm) package.

Applications

• Auto
• DTV, Monitor/LCD Display
• Printer, Charging Station
• Industry PC

Key features

• Wide 4V-28V Input Voltage Range
• 0.6V-14V Output Voltage Range
• 6A Continuous Output Current
• Integrated 36mΩ/16mΩ Rdson of HS/LS Power MOSFETs
• Fixed 1ms Soft-start Time
• Selectable 400KHz, 800KHz, 1.2MHz Switching Frequencies
• Selectable PWM, PFM and USM Operation Modes
• Cycle-by-Cycle Current Limiting
• Output Over-Voltage Protection
• Over-Temperature Protection
• Available in a QFN 12-leads 3mmx3mm Package
