SCTDatasheet (PDF)

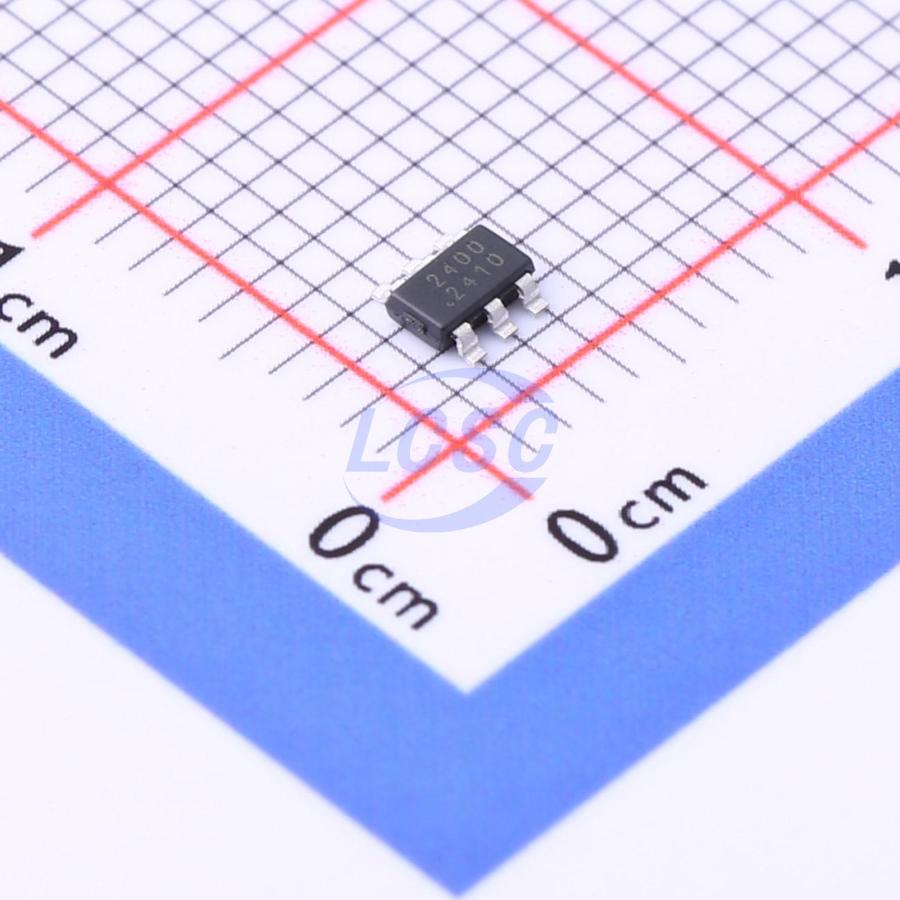

SCT2400TVBR
2MHz Step-down type Adjustable 600mA TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS CompliantActive
4.5V-40V Input, 600mA Synchronous Step-down DC-DC Converter
- Manufacturer
- SCT
- Manufacturer part #
- SCT2400TVBR
- Store part #
- C2693819
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,915 in stock
#C2693819
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.19 | ₹210.95 |
| 50+ | ₹32.55 | ₹1,627.50 |
| 150+ | ₹28.40 | ₹4,260.00 |
| 500+ | ₹23.25 | ₹11,625.00 |
| 3,000+ | ₹22.44 | ₹67,320.00 |
| 6,000+ | ₹21.05 | ₹1,26,300.00 |
5 × ₹42.19
₹210.95
excl. GST
₹248.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SCT2400TVBR
₹210.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 90uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
A high frequency, up to 600mA continuous output synchronous buck converter. It has wide input voltage rating from 4.5V to 40V, which integrates a 600mΩ high-side MOSFET and a 300mΩ low-side MOSFET. It adopts the peak current mode control with built-in loop compensation to make the chip easy to use. It features fixed 2MHz switching frequency, which minimizes the external off chip passive components size and reduces the output ripple to be lower than 0.1% of output when the output is 12V. With a minimum 80ns on-time of high-side MOSFET, it allows power conversion from high input voltage to low output voltage. It supports the Pulse Skipping Modulation (PSM) with typical 90uA low quiescent current. It achieves 85% power efficiency at 10mA light load condition. It offers cycle-by-cycle current limit, thermal shutdown protection and input voltage undervoltage protection. The device is available in a 6-pin small profile TSOT23-6 package.
Applications
- Industrial 24V Distributed Power Bus
- Power meter
- Elevator, PLC, Servo
- Automatic Control
- Automotive
Key features
- Wide Input Range: 4.5V - 40V
- Up to 600mA Continuous Output Current
- Less than 0.1% Output Ripple at 12V Output
- 0.81V ±2.5% Feedback Reference Voltage
- Integrated 600mΩ High-Side and 300mΩ Low-Side Power MOSFETs
- Fixed Frequency 2MHz
- Pulse Skipping Mode (PSM) at Light Load
- 90uA Quiescent Current in Sleep Mode
- 80ns Minimum On-time
- 1ms Internal Soft-start Time
- Over-Temperature Protection
- Available in an TSOT23-6 Package
