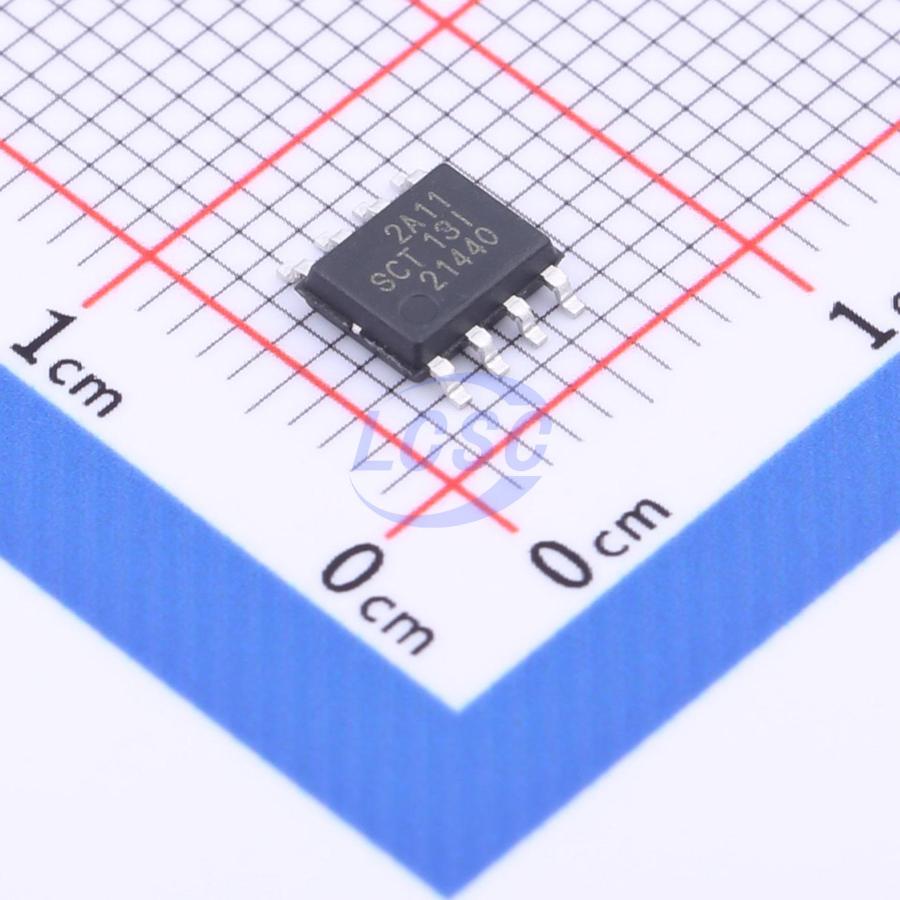

SCT2A11STER
300kHz~800kHz Step-down type Adjustable 800mV~24V 600mA ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
4.5V-100V Input, 0.6A Output, High Efficiency Synchronous Buck Converter
- Manufacturer
- SCT
- Manufacturer part #
- SCT2A11STER
- Store part #
- C2846062
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,766 in stock
#C2846062
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹216.67 | ₹216.67 |
| 10+ | ₹182.57 | ₹1,825.70 |
| 30+ | ₹161.09 | ₹4,832.70 |
| 100+ | ₹139.38 | ₹13,938.00 |
| 500+ | ₹129.39 | ₹64,695.00 |
| 1,000+ | ₹125.05 | ₹1,25,050.00 |
1 × ₹216.67
₹216.67
excl. GST
₹255.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SCT2A11STER
₹216.67 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 300kHz~800kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.5V~100V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~24V
- Output Current
- 600mA
- Quiescent Current
- 130uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The SCT2A11 is 0.6A synchronous buck converters with wide input voltage, ranging from 4.5V to 100V, which integrates an 750mΩ high-side MOSFET and a 500mΩ low-side MOSFET. The SCT2A11, adopting the constant-on time (COT) mode control, supports the Force Pulse Width Modulation (FPWM) Mode to achieve the small output ripple at light load condition. The SCT2A11 features programmable switching frequency from 300kHz to 800kHz, which provides the flexibility to optimize either efficiency or external component size. The SCT2A11 offers cycle-by-cycle current limit and hiccup over current protection, thermal shutdown protection, output over-voltage protection and input voltage under-voltage protection. The device is available in an 8-pin thermally enhanced SOP-8 package.
Applications
- E-Tools
- E-bike, Scooter
- GPS Tracker
Key features
- Wide Input Range: 4.5V - 100V
- 0.6A Continuous Output Current
- 0.8V ±1% Feedback Reference Voltage
- Integrated 750mΩ High-Side and 500mΩ Low-Side Power MOSFETs
- Force Pulse Width Modulation (FPWM) Mode
- 4ms Internal Soft-start Time
- Adjustable Frequency 300KHz to 800KHz
- Precision Enable Threshold for Programmable Input Voltage
- Under-voltage Lock Out Protection (UVLO) Threshold and Hysteresis
- Cycle-by-Cycle Current Limiting
- Over-Voltage Protection
- Over-Temperature Protection
- Available in an ESOP-8 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SCT2A10ASTER#C2916528SCT · ESOP-8 | SCT | ESOP-8 | 3,010 | ₹382.70 · 3,010 in stock | View |
 | SCT2A10STER#C509053SCT · ESOP-8 | SCT | ESOP-8 | 4,605 | ₹216.83 · 4,605 in stock | View |
