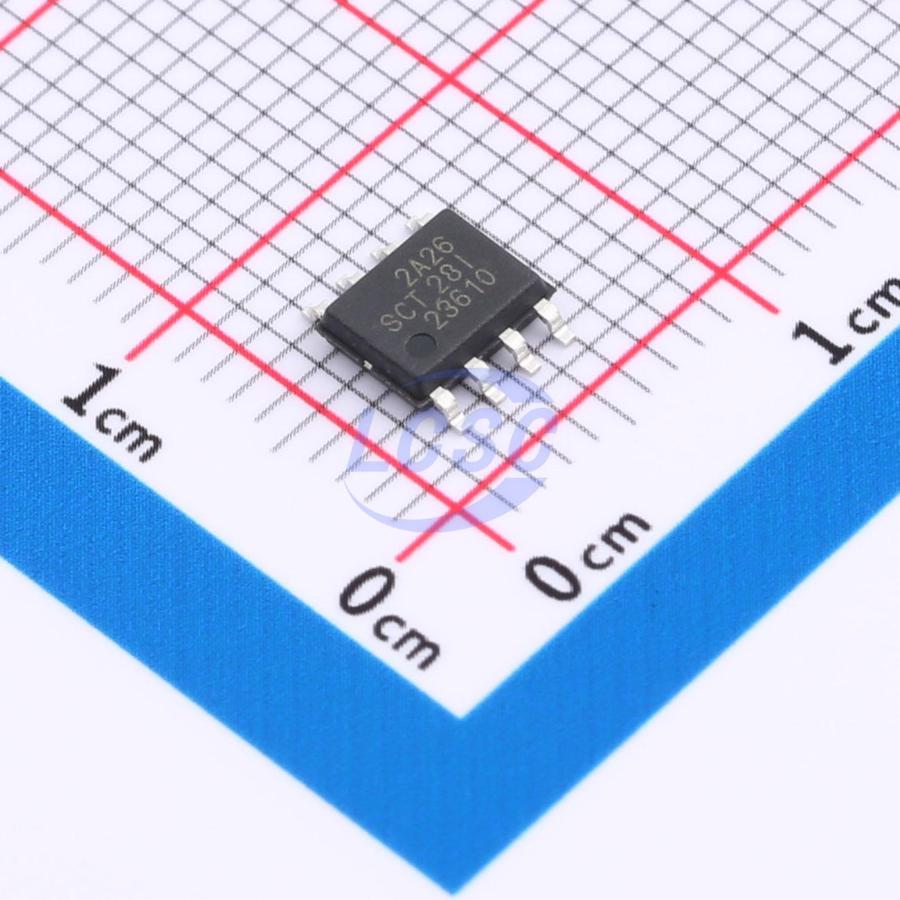

SCT2A26STER

An asynchronous buck converter with wide input voltage ranging from 5.5V to 100V which accommodates a variety of step - down applications, making it ideal for automotive, industry, and lighting applications. Integrates an 500mΩ high - side MOSFET and has 4A peak output current limit to support high peak current application in GPS tracker with 4G Module. Adopting the constant - on time (COT) mode control with integrated loop compensation greatly simplifies the converter off - chip configuration. Features Pulse Frequency Modulation (PFM) mode at light load with typical 140uA low quiescent current, which enables the converter to achieve the high - power efficiency during light - load or no - load conditions. Offers cycle - by - cycle current limit, thermal shutdown protection, output over - voltage protection and input voltage under - voltage protection. The device is available in an 8 - pin thermally enhanced SOP - 8 package.

Applications

• GPS Tracker
• E - bike, Scooter
• Moto Drives, Drones
• 48V Industry Power Bus System

Key features

• Wide Input Range: 5.5V - 100V
• Maximum Output Voltage: 30V
• 2A Continuous Output Current
• 4A Peak Current Limit
• Integrated 500mΩ High - Side Power MOSFET
• 140uA Quiescent Current
• 1.2V ±1% Feedback Reference Voltage
• 4ms Internal Soft - start Time
• Fixed Switching Frequency at 300KHz
• COT Control Mode with Integrated Loop Compensation
• Precision Enable Threshold for Programmable Input Voltage Under - voltage Lock Out Protection (UVLO) Threshold and Hysteresis
• Cycle - by - Cycle Current Limiting
• Over - Voltage Protection
• Over - Temperature Protection
• Available in an ESOP - 8 Package
