SCTDatasheet (PDF)

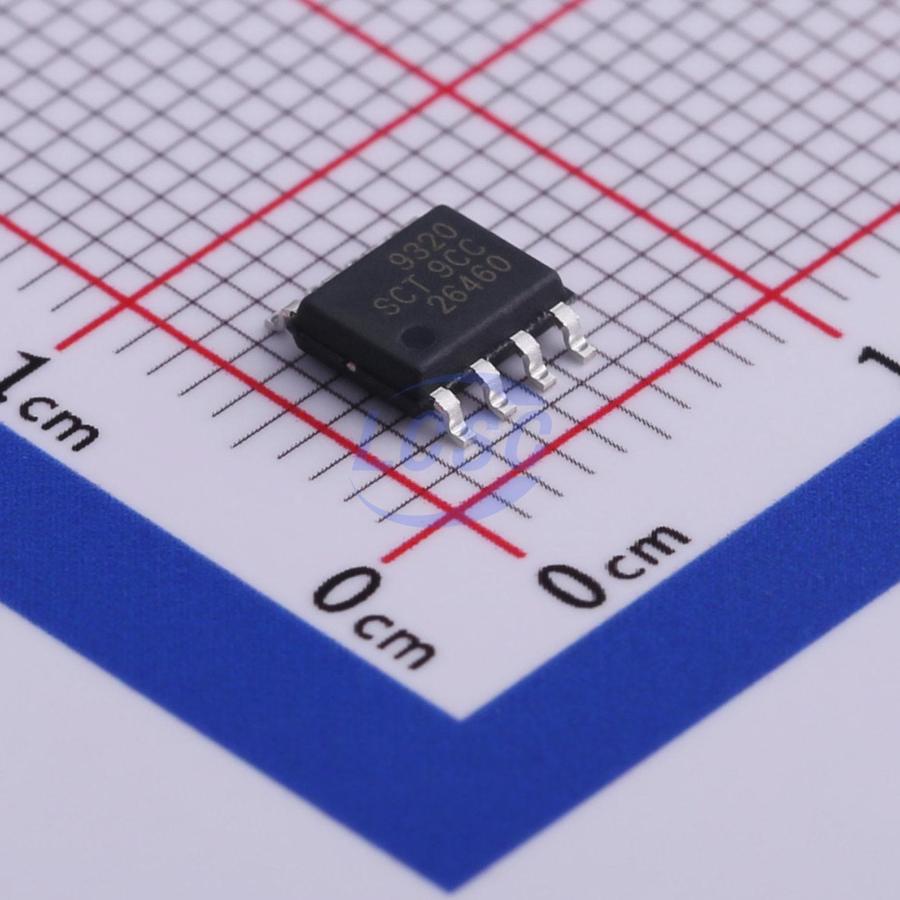

SCT9320STDR
Step-down type 500kHz Adjustable 2A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS CompliantActive
3.8V-32V Input, 2A Synchronous Step-down DC-DC Converter
- Manufacturer
- SCT
- Manufacturer part #
- SCT9320STDR
- Store part #
- C509065
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,306 in stock
#C509065
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.25 | ₹121.25 |
| 10+ | ₹97.97 | ₹979.70 |
| 30+ | ₹86.43 | ₹2,592.90 |
| 100+ | ₹74.90 | ₹7,490.00 |
| 500+ | ₹60.53 | ₹30,265.00 |
| 1,000+ | ₹57.03 | ₹57,030.00 |
1 × ₹121.25
₹121.25
excl. GST
₹143.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SCT9320STDR
₹121.25 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;EMI optimization (spread spectrum);Light load efficient mode;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 3.8V~32V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.189 g
Overview
The SCT9320 is 2A synchronous buck converters with up to 32V wide input voltage range, which fully integrates a 130mΩ high-side MOSFET and a 70mΩ low-side MOSFET to provide high efficiency stepdown DCDC conversion. The SCT9320 adopts peak current mode control with the integrated compensation network, which makes SCT9320 easily to be used by minimizing the off-chip component count. The SCT9320 supports the Pulse Skipping Modulation (PSM) with typical 20uA Ultra-Low Quiescent and achieves more than 85% efficient at 1mA and 89% at 5mA light load conditions. The SCT9320 is an Electromagnetic Interference (EMI) friendly buck converter with implementing optimized design for EMI reduction. The SCT9320 features Frequency Spread Spectrum FSS with ±6% jittering span of the 500kHz switching frequency and modulation rate 1/512 of switching frequency to reduce the conducted EMI. The converter has proprietary designed gate driver scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off time, which further erases high frequency radiation EMI noise caused by the MOSFETs hard switching. The SCT9320 offers output over-voltage protection, cycle-by-cycle peak current limit, and thermal shutdown protection. The device is available in a lowprofile SOP-8L package.
Applications
- White Goods, Home Appliance
- Surveillance
- Audio, WiFi Speaker
- Printer, Charging Station
- DTV, STB, Monitor/LCD Display
Key features
- EMI Reduction with Switching Node Ringing-free
- 500kHz Switching Frequency with ±6% Frequency Spread Spectrum FSS
- Pulse Skipping Mode PSM with 20uA Quiescent Current in Light Load Condition
- 3.8V - 32V Wide Input Voltage Range
- Up to 2A Continuous Output Load Current
- 0.8V ±1% Feedback Reference Voltage
- Fully Integrated 130mΩ Rdson High Side MOSFET and 70mΩ Rdson Low Side MOSFET
- 1uA Shut-down Current
- 80ns Minimum On-time
- Precision Enable Threshold for Programmable UVLO Threshold and Hysteresis
- Low Dropout Mode Operation
- 4ms Built-in Soft Start Time
- Output Over Voltage Protection
- Thermal Shutdown Protection at 160°C
- Available in SOP-8L Package
