STDatasheet (PDF)

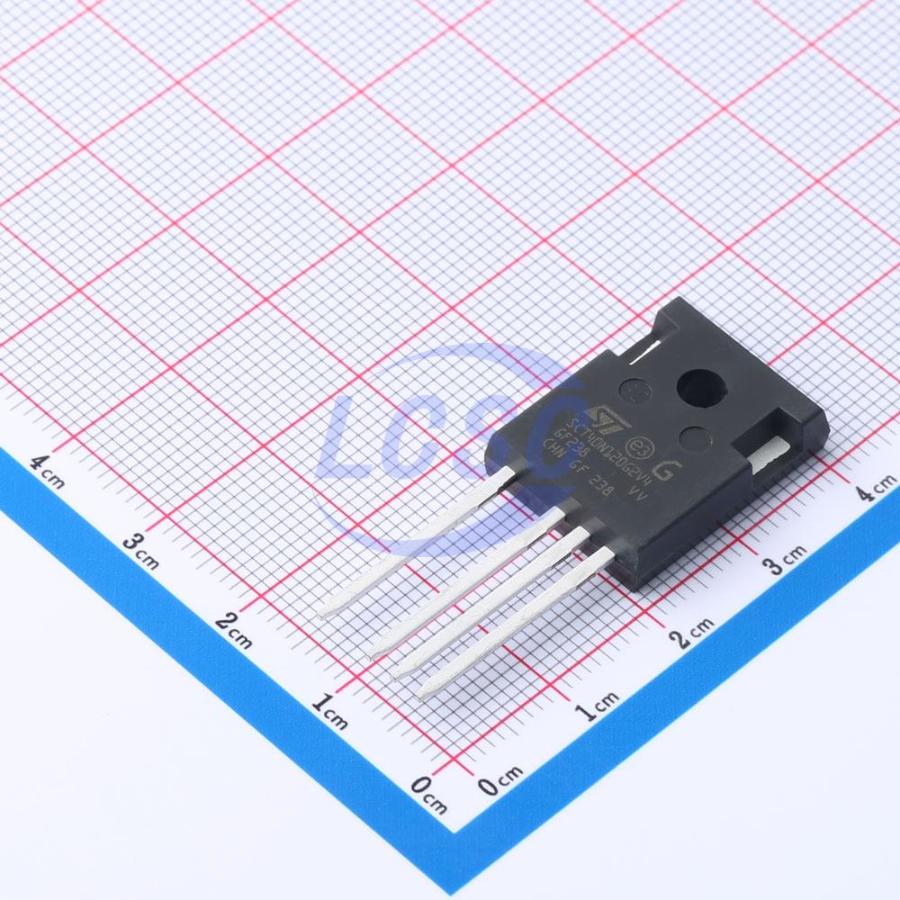

SCTWA40N120G2V-4
1.2kV 36A 277W 100mΩ 1 N-channel N-Channel HiP-247-4 Single FETs, MOSFETs RoHS
HiP-247-4ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- SCTWA40N120G2V-4
- Store part #
- C5268807
- Package / case
- HiP-247-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5268807
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,907.05 | ₹1,907.05 |
| 10+ | ₹1,880.75 | ₹18,807.50 |
| 30+ | ₹1,835.05 | ₹55,051.50 |
| 90+ | ₹1,795.39 | ₹1,61,585.10 |
1 × ₹1,907.05
₹1,907.05
excl. GST
₹2,250.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
SCTWA40N120G2V-4
₹1,907.05 for 1 + GST
Specifications
- Drain to Source Voltage
- 1.2kV
- Operating Temperature
- -55℃~+200℃
- Output Capacitance(Coss)
- 56pF
- Current - Continuous Drain(Id)
- 36A
- Ciss-Input Capacitance
- 1.233nF
- Pd - Power Dissipation
- 277W
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 100mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 2.45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.1 g
Overview
Responding to environmental changes, motor control is rapidly evolving toward improving the efficiency of motors and drives. At the same time, higher levels of integration at the lowest possible cost are required to support market penetration of new technologies and enhance safety and reliability. STMicroelectronics (ST), with over 20 years of experience in motor control, was among the first to recognize these trends. ST addresses these changes through innovative products including intelligent power modules, system-in-package solutions, monolithic motor drivers, fast and efficient power switches, voltage transient protection TRIACs, and robust, functionally safe microcontrollers. Regardless of the motor technology used, ST provides the right electronics and a complete ecosystem — including evaluation boards, reference designs, firmware, and development tools — to simplify and accelerate the design cycle. Permanent magnet synchronous motors and brushless DC motors are increasingly replacing brushed DC motors in many applications due to their high efficiency, quiet operation, and reliability. Three-phase induction motors are brushless motors commonly used in high-power applications. Stepper motors are widely used in holding and positioning applications across computing, security, and industrial automation. Brushed DC motors are commonly used in industrial applications such as robotics, valves, and medical equipment. Universal motors can operate on either AC or DC power and are commonly used in home appliances such as blenders, fans, and vacuum cleaners.
Applications
- Computer
- Security
- Industrial Automation
- Home Appliances
- Medical Equipment
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSC080SMA120B#C5127757MICROCHIP · TO-247 | MICROCHIP | TO-247 | 6 | ₹2,795.75 · 6 in stock | View |
 | GC3M0032120D#C7435042SUPSiC · TO-247-3 | SUPSiC | TO-247-3 | 105 | ₹1,030.64 · 105 in stock | View |
 | G3R75MT12D#C25836782Navitas · TO-247-3 | Navitas | TO-247-3 | 6 | ₹858.38 · 6 in stock | View |
 | SCTWA30N120#C472656ST · HiP-247 | ST | HiP-247 | 3 | ₹4,599.37 · 3 in stock | View |
 | S2M0080120D#C5904995SMC · TO-247AD | SMC | TO-247AD | 23 | ₹1,206.17 · 23 in stock | View |
