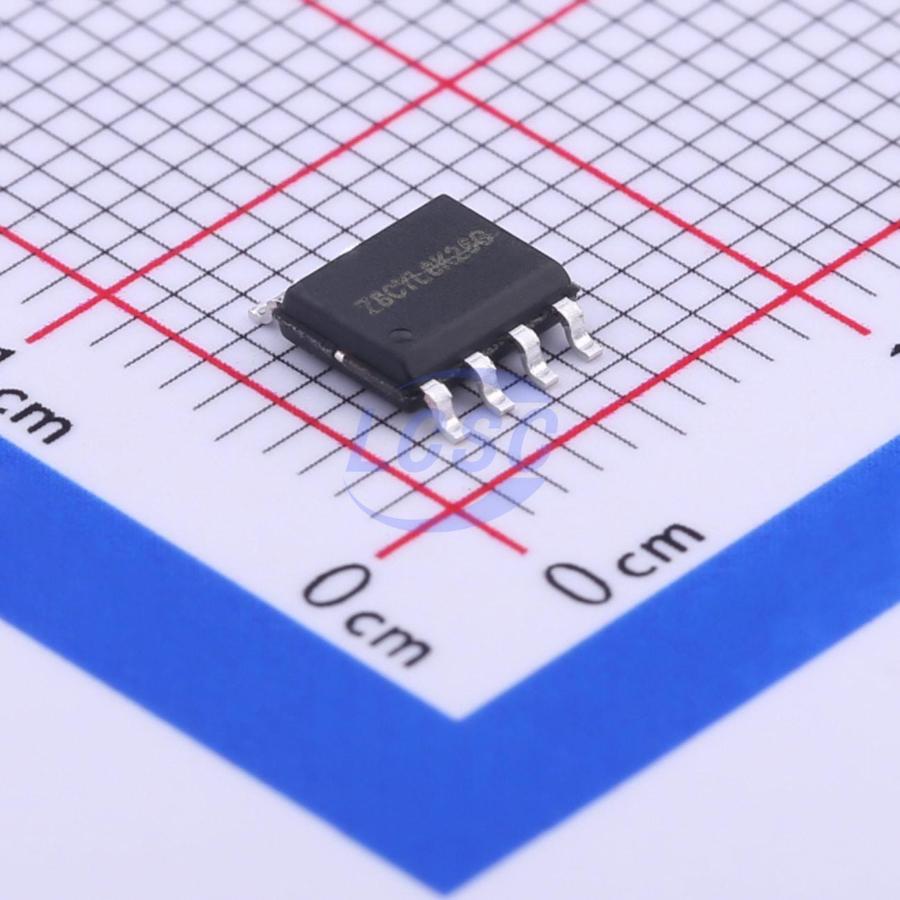

Hangzhou Silan Microelectronics

SD6800BC

Flyback 1 9V~18V SOP-8 LED Drivers ICs

SOP-8RoHSActive

SINGLE STAGE PRIMARY SIDE REGULATION PFC CONTROLLER FOR LED DRIVER

Manufacturer: Hangzhou Silan Microelectronics
Manufacturer part #: SD6800BC
Store part #: C403832
Package / case: SOP-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,090 in stock

#C403832

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹39.89	₹199.45
50+	₹31.55	₹1,577.50
150+	₹27.98	₹4,197.00
500+	₹23.52	₹11,760.00
2,500+	₹21.54	₹53,850.00
4,000+	₹20.35	₹81,400.00

Quantity (min 5, multiples of 5)

5 × ₹39.89

₹199.45

excl. GST

₹235.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SD6800BC

₹199.45 for 5 + GST

Specifications

Features: Over Voltage Protection;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): External
Operating temperature: -40℃~+150℃
Topology: Flyback
Number of Channels: 1
Voltage - Input(DC): 9V~18V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.161 g

Overview

The SD6800 is a single stage primary side regulation (PSR) power factor correction (PFC) controller, specially designed for LED driver. The Device adopts constant on time operation to achieve high power factor. The SD6800 provides accurate constant current control and operates in boundary conduction mode (BCM) with high efficiency. The Device adopts primary side regulation eliminating the opto-couple, secondary feedback control and loop compensation for reducing design and cost. The SD6800 provides completed protections such as short LED protection, open LED protection and over temperature protection, etc.
