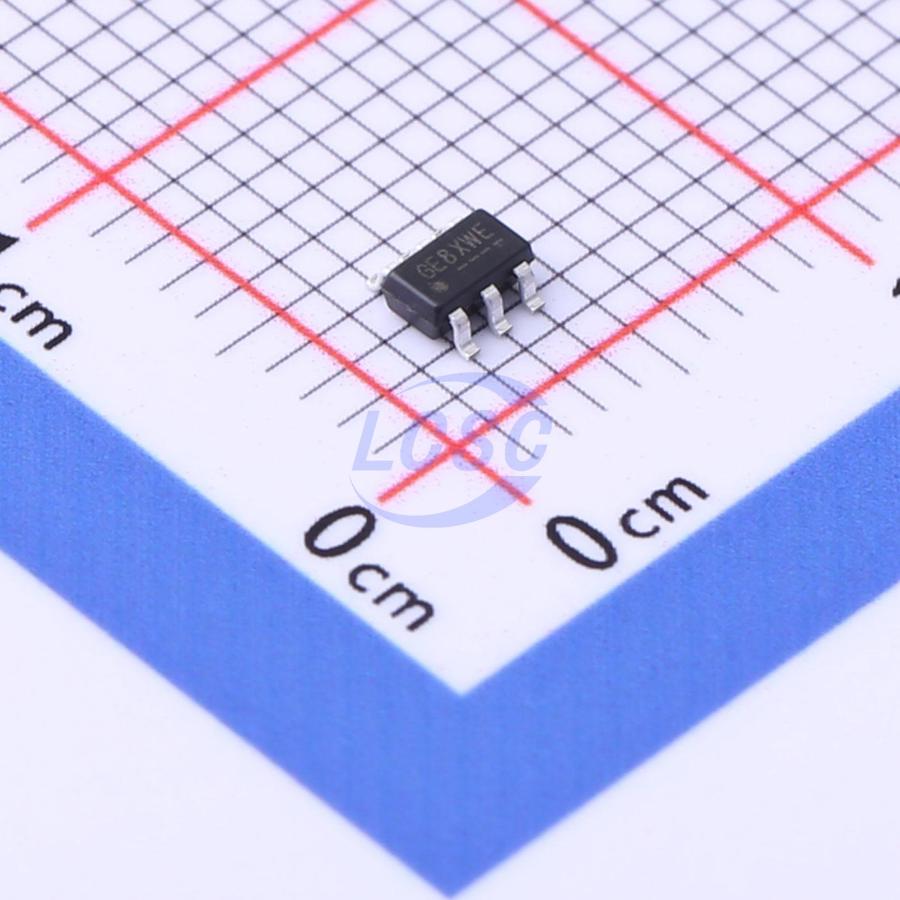

SHOUDING

SD8910G

Step-down type 850kHz Adjustable 600mV~8V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSSold out at source

21V, 2A Synchronous Step-Down DC/DC Converter

Manufacturer: SHOUDING
Manufacturer part #: SD8910G
Store part #: C2926464
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,795 in stock

#C2926464

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹35.96	₹179.80
50+	₹31.54	₹1,577.00
150+	₹29.65	₹4,447.50
500+	₹27.29	₹13,645.00
3,000+	₹26.24	₹78,720.00
6,000+	₹25.61	₹1,53,660.00

Quantity (min 5, multiples of 5)

5 × ₹35.96

₹179.80

excl. GST

₹212.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SD8910G

₹179.80 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 850kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~21V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~8V
Output Current: 2A
Quiescent Current: 300uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.147 g

Overview

The SD8910G is a synchronous step-down DC/DC converter with fast constant on time (FCOT) mode control. It has integrated high-side (145mΩ, typ) and low-side (90mΩ, typ) power switches, and provides 2A continuous load current. It regulates input voltage from 4.5V to 21V and down to an output voltage as low as 0.6V. Using FCOT control scheme provides fast transient response, which can minimize the component size without additional external compensation network.
