Hangzhou Silan MicroelectronicsDatasheet (PDF)

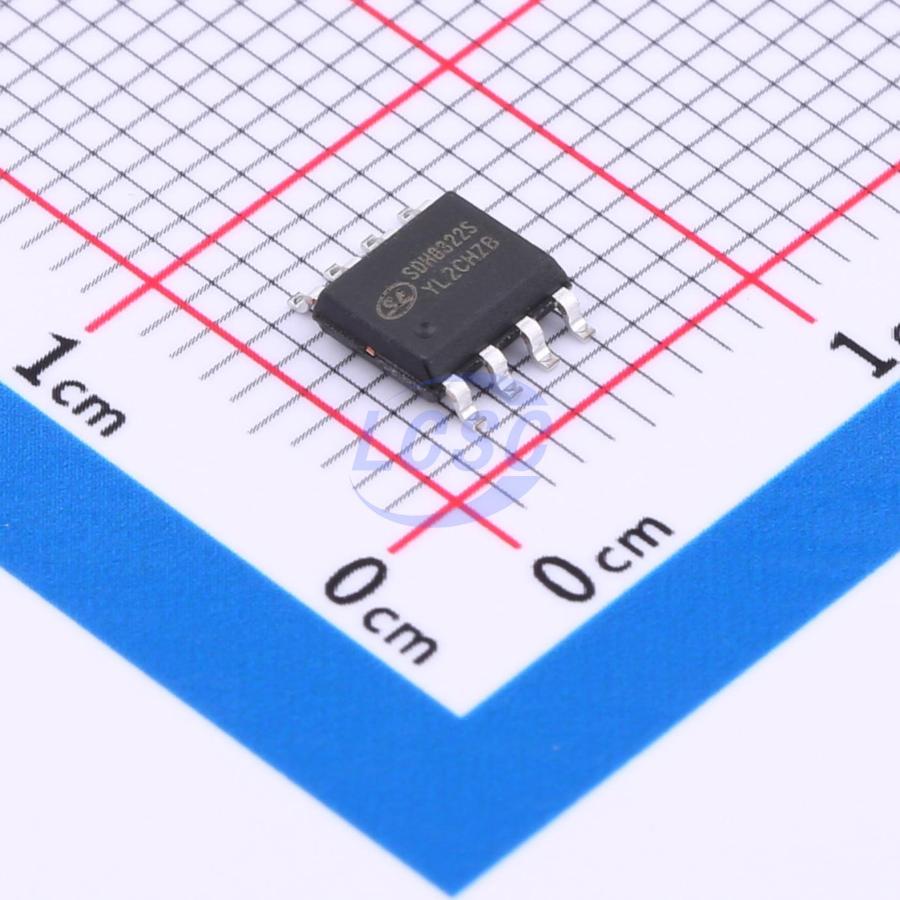

SDH8322STR
nan
SOP-8ROHS CompliantActive
Current-mode PWM controller
- Manufacturer
- Hangzhou Silan Microelectronics
- Manufacturer part #
- SDH8322STR
- Store part #
- C601603
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,790 in stock
#C601603
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.70 | ₹173.50 |
| 50+ | ₹27.54 | ₹1,377.00 |
| 150+ | ₹24.48 | ₹3,672.00 |
| 500+ | ₹20.65 | ₹10,325.00 |
| 2,500+ | ₹17.52 | ₹43,800.00 |
| 4,000+ | ₹16.50 | ₹66,000.00 |
5 × ₹34.70
₹173.50
excl. GST
₹204.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SDH8322STR
₹173.50 for 5 + GST
Specifications
- Function
- Buck-Boost
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck;Boost
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 12V;15V;18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
SDH8322S is a current-mode PWM controller with an integrated high-voltage MOSFET for switching power supplies. The SDH8322S features a built-in high-voltage startup circuit. Under light load conditions, it enters hiccup mode to effectively reduce system standby power consumption. A frequency reduction function further optimizes conversion efficiency under light load. A soft-start function reduces device stress and prevents transformer saturation. The SDH8322S also integrates protection functions for various fault conditions, including: VDD undervoltage protection, VDD overvoltage protection, leading-edge blanking, overcurrent protection, overtemperature protection, and more. Once protection is triggered, the circuit automatically restarts repeatedly until the system returns to normal operation.
Applications
- Offline switching power supplies
- Non-isolated buck-boost converters
- Small home appliances
Key features
- Output voltage adjustable in three settings: 12V, 15V, 18V
- Hiccup frequency reduction under high-voltage startup light load
- Soft start
- VDD undervoltage protection
- VDD overvoltage protection
- Leading edge blanking
- Overcurrent protection
- Overtemperature protection
