Seaward ElecDatasheet (PDF)

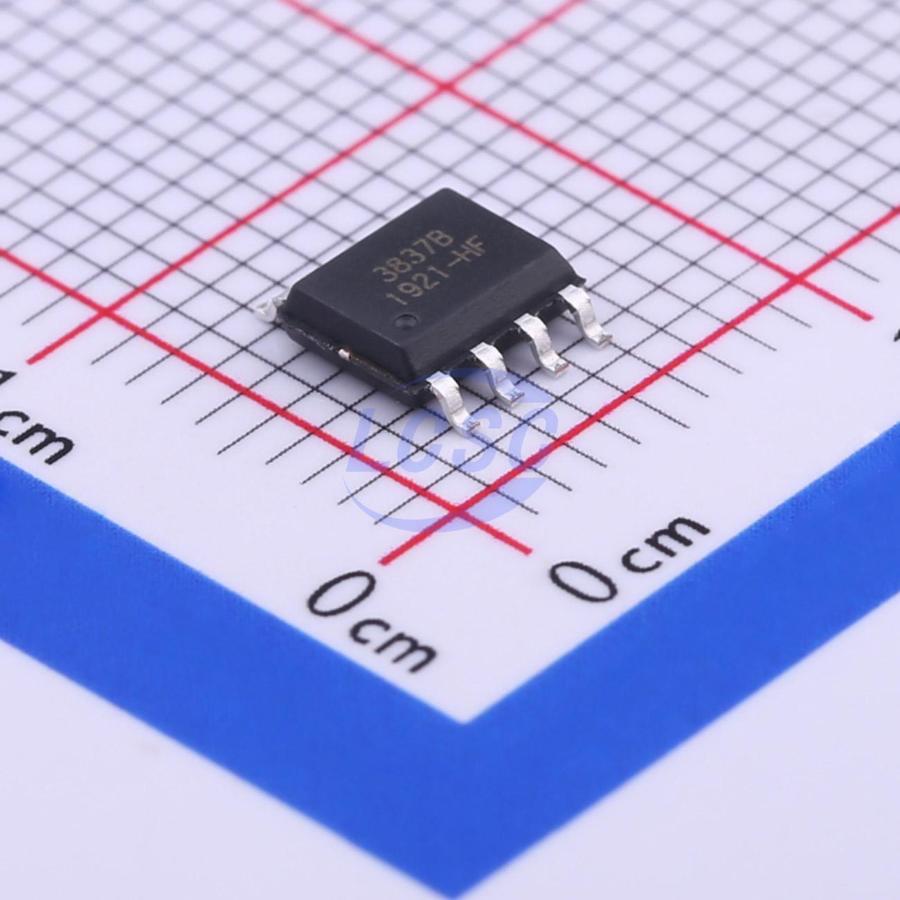

SE3837B
Buck Switching Regulator IC Adjustable 1 Output SOP-8
SOP-8RoHSActive
High Efficiency Synchronous Buck IC
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE3837B
- Store part #
- C415996
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,001 in stock
#C415996
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.36 | ₹61.36 |
| 10+ | ₹48.36 | ₹483.60 |
| 30+ | ₹42.72 | ₹1,281.60 |
| 100+ | ₹35.56 | ₹3,556.00 |
| 500+ | ₹32.31 | ₹16,155.00 |
| 1,000+ | ₹30.36 | ₹30,360.00 |
1 × ₹61.36
₹61.36
excl. GST
₹72.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SE3837B
₹61.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Number of Outputs
- 1
- Frequency - Switching
- 200kHz
- Function
- Step-down type
- Features
- Adjustable current limiting;EMI optimization (spread spectrum);Cable compensation;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~13V
- Output Current
- 3.5A
- Quiescent Current
- 3mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
SE3837B is a synchronous step-down DC-DC converter with an input voltage withstand rating up to 40V, normal operation across a 4.5–40V input voltage range, and the capability to achieve precise constant-current and constant-voltage control. The SE3837B requires no external compensation, relying on its built-in stable loop to realize CC/CV control. The output voltage is adjustable, and the output current can be set via an external resistor. The SE3837B is a fully featured, extremely easy-to-use CC/CV step-down DC-DC converter that combines application flexibility and versatility with high performance and an outstanding price-to-performance ratio.
Applications
- In-vehicle charger
- Dash cam
- Desktop multi-port charger
- Multi-port travel charger USB power strip
Key features
- Input voltage rating up to 40V
- Wide input range: 4.5 – 40V
- No external compensation required
- Adjustable constant current
- 200kHz fixed switching frequency
- Built-in frequency dithering for easy EMC compliance
- Up to 300mV line voltage compensation
- Short-circuit, over-temperature, over-voltage, and under-voltage protection
- SOP8 package, 100% duty cycle
