SESD1004Q4UG-0020-090

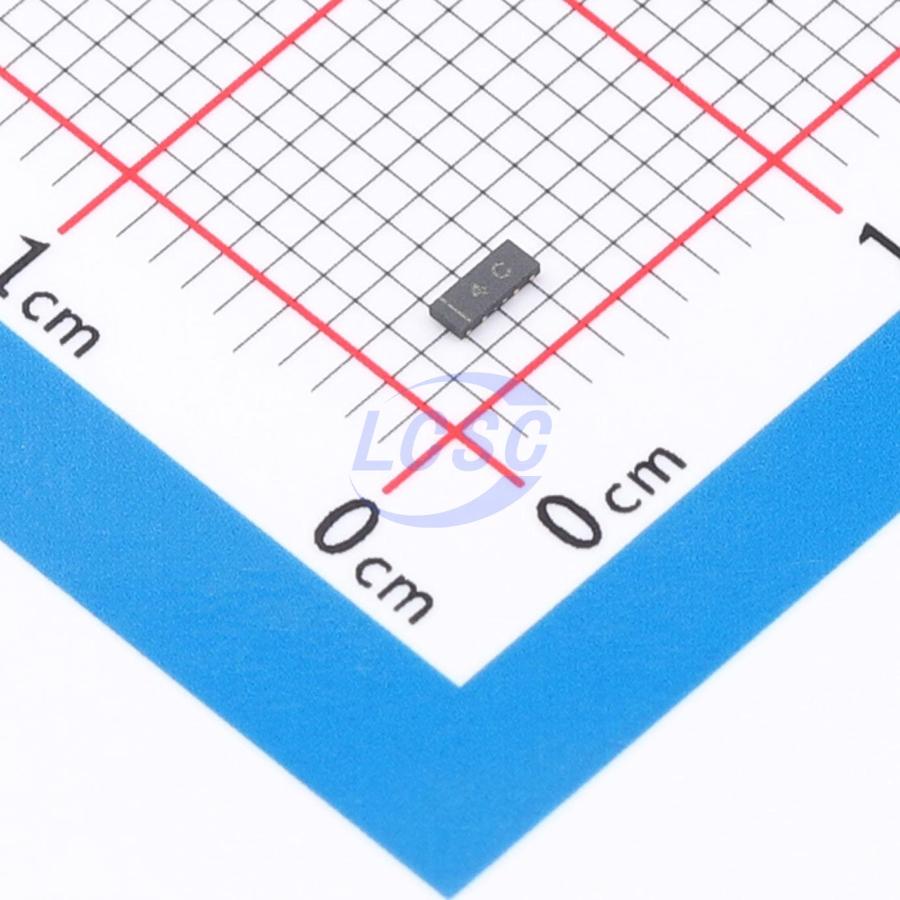

9.2V 2A@8/20us 9V Unidirectional 7V UDFN-10(1x2.5) TVS Diodes RoHS
- Manufacturer
- Littelfuse
- Manufacturer part #
- SESD1004Q4UG-0020-090
- Store part #
- C1975560
- Package / case
- UDFN-10(1x2.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
560 in stock
#C1975560
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.08 | ₹120.40 |
| 50+ | ₹23.67 | ₹1,183.50 |
| 150+ | ₹23.40 | ₹3,510.00 |
| 500+ | ₹23.14 | ₹11,570.00 |
5 × ₹24.08
₹120.40
excl. GST
₹142.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25,000 per reel
SESD1004Q4UG-0020-090
₹120.40 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Voltage - Breakdown
- 9V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 25,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
The SESD series Ultra Low Capacitance Diode Arrays provides signal integrity-preserving unidirectional ESD protection for high speed serial interfaces. Compelling packaging options including the standard 1004 DFN 2.5 mm× 1.0 mm layout, and the board space-friendly 1103 DFN minimize trace layout complexity, and save significant PCB space. The 0402 DFN provides the most flexibility for PCB layout purposes. This series is rated in excess of 20 kV contact ESD protection (IEC 61000-4-2) while maintaining extremely low leakage and dynamic resistance, and is offered in progressive and popular footprints. The SESD series sets higher standards for signal integrity and usability.
Applications
- Tablet PC and external storage with high speed interfaces
- Applications requiring high ESD performance in small packages
- Automotive applications
- USB 3.1, 3.0, 2.0
- HDMI 2.0, 1.4a, 1.3
- DisplayPort
- V-by-One
- Thunderbolt
- LVDS interfaces
- Consumer, mobile and portable electronics
Key features
- AEC-Q101 qualifed
- Moisture Sensitivity Level(MSL-1)
- ELV Compliant
- RoHS Compliant and Lead Free
- PPAP capable
- 0.20pF TYP capacitance
- ESD, IEC 61000-4-2, ±20 kV contact, ±20 kV air
- Low clamping voltage of 9.2V @ |PP = 2.0 A (tP = 8/20 μs)
- Low profile DFN array packages
- Facilitates excellent signal integrity
