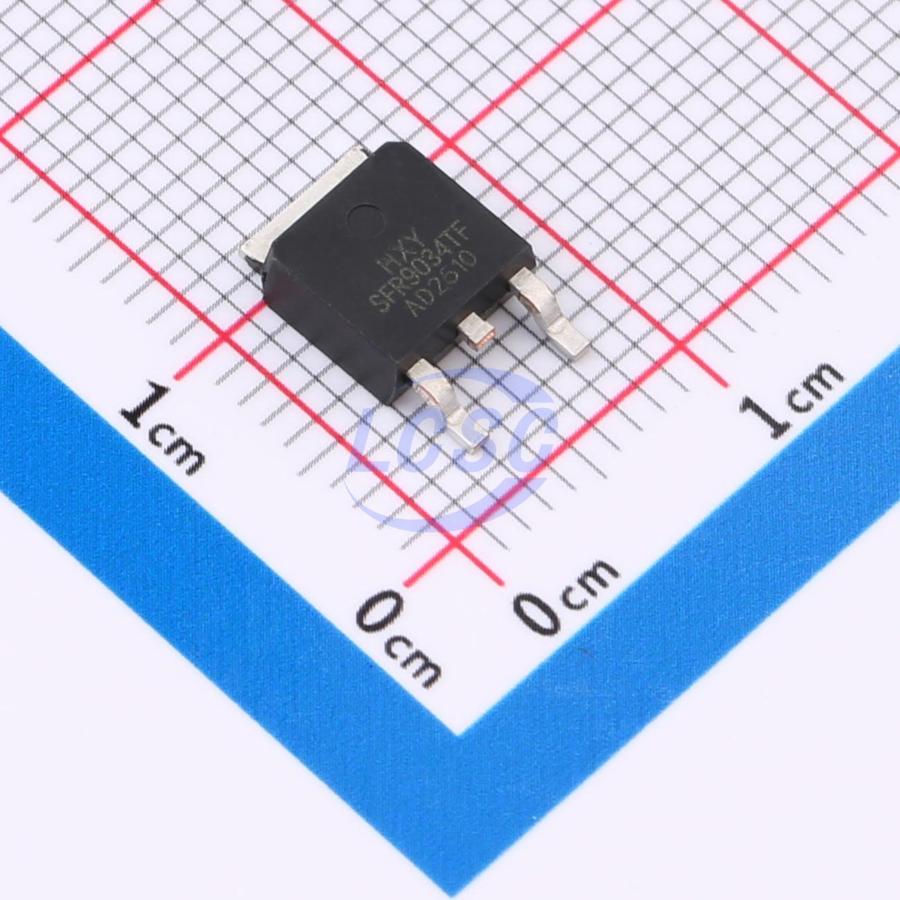

SFR9034TF-HXY
P-Channel 60V 10A 31.3W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET P-CH 60V 10A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SFR9034TF-HXY
- Store part #
- C48972169
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C48972169
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.94 | ₹194.70 |
| 50+ | ₹31.18 | ₹1,559.00 |
| 150+ | ₹27.86 | ₹4,179.00 |
| 500+ | ₹23.72 | ₹11,860.00 |
| 2,500+ | ₹21.87 | ₹54,675.00 |
| 5,000+ | ₹20.77 | ₹1,03,850.00 |
5 × ₹38.94
₹194.70
excl. GST
₹229.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SFR9034TF-HXY
₹194.70 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 51pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 715pF
- Pd - Power Dissipation
- 25W
- Reverse Transfer Capacitance (Crss)
- 34pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.85nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.391 g
