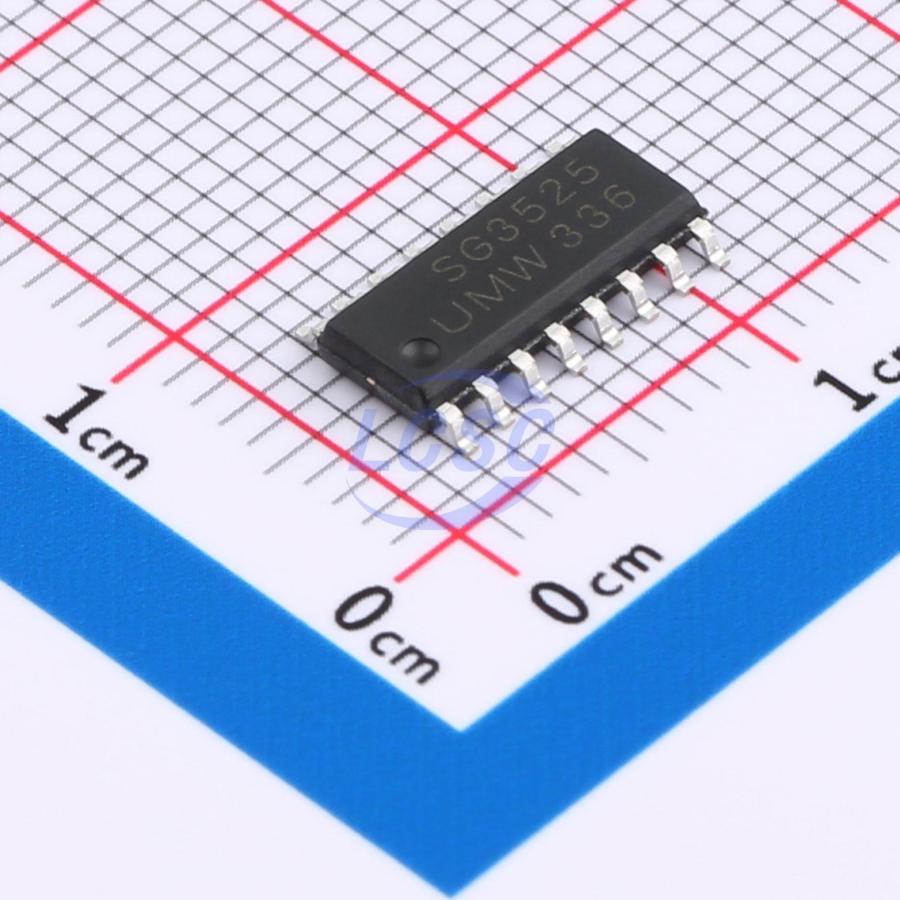

SG3525AP(UMW)
100Hz~500kHz 400mA 5.1V SOP-16 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-16ROHS CompliantActive
Functions and features of the 3525 chip
- Manufacturer
- UMW
- Manufacturer part #
- SG3525AP(UMW)
- Store part #
- C7598682
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,415 in stock
#C7598682
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.22 | ₹121.10 |
| 50+ | ₹18.52 | ₹926.00 |
| 150+ | ₹16.07 | ₹2,410.50 |
| 500+ | ₹13.03 | ₹6,515.00 |
| 2,500+ | ₹11.67 | ₹29,175.00 |
| 5,000+ | ₹10.85 | ₹54,250.00 |
5 × ₹24.22
₹121.10
excl. GST
₹142.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SG3525AP(UMW)
₹121.10 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Frequency - Switching
- 100Hz~500kHz
- Features
- Frequency synchronization
- Operating Voltage
- 8V~35V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 400mA
- Output Voltage
- 5.1V
- Quiescent Current
- 12uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.313 g
Overview
The chip features a +5.1V reference voltage with 1% accuracy. Since the reference voltage falls within the input common-mode range of the error amplifier, no external resistors are required. The UMW 3525 can operate in master-slave mode and supports synchronization with an external clock. Dead time is adjustable via a resistor connected between CT and the discharge pin. Additional internal functional circuits include soft-start, shutdown, and undervoltage protection. The output stage of this control IC features a high-power totem-pole output with both source and sink currents exceeding 150mA, providing NOR logic levels and a low level in the "shutdown" state.
Key features
- Operating voltage range: 8~35V
- 5.1V reference voltage, 1% accuracy
- Oscillator frequency range: 100Hz~500KHz
- Oscillator synchronization signal input
- Adjustable dead time
- Built-in soft-start circuit
- Pulse-by-pulse current limiting
- Input UVLO with hysteresis
- PWM latch function for multi-pulse inhibition
