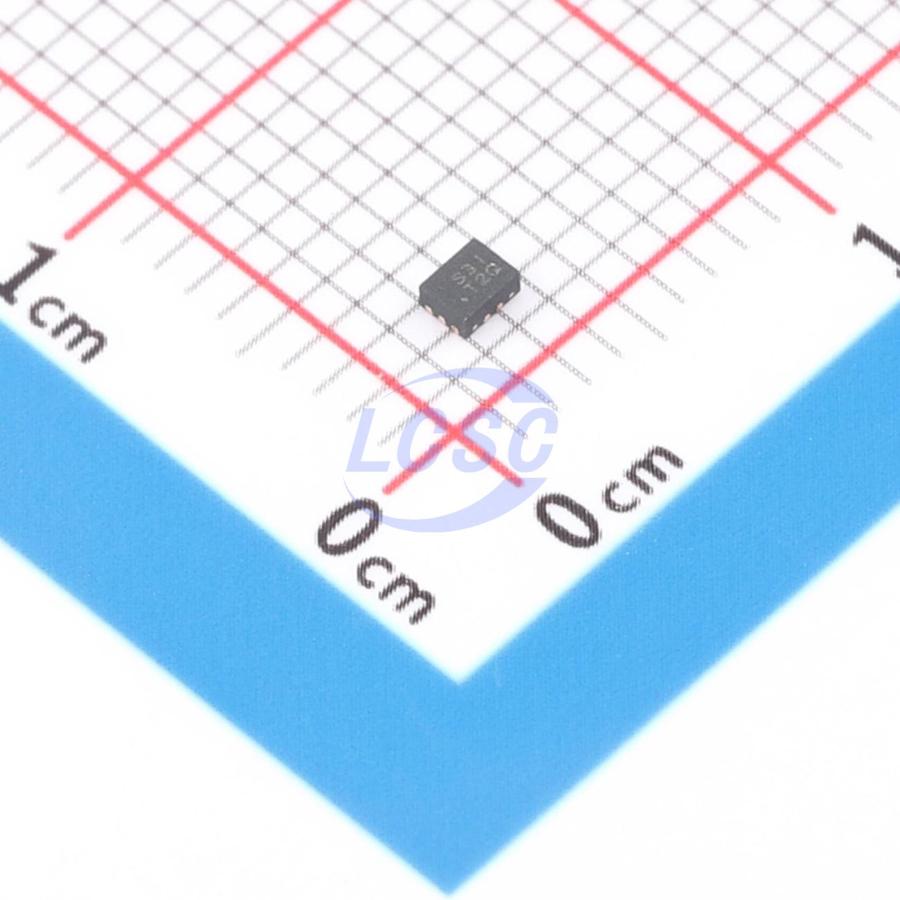

SGM2058XWQ10G/TR
1.875MHz Inverted 265mA -5.5V~-2.3V TQFN-10L(1.4x1.8) Voltage Regulators - DC DC Switching Regulators
TQFN-10L(1.4x1.8)RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2058XWQ10G/TR
- Store part #
- C5152626
- Package / case
- TQFN-10L(1.4x1.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,731 in stock
#C5152626
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹230.39 | ₹230.39 |
| 10+ | ₹183.92 | ₹1,839.20 |
| 30+ | ₹158.42 | ₹4,752.60 |
| 100+ | ₹129.46 | ₹12,946.00 |
1 × ₹230.39
₹230.39
excl. GST
₹271.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2058XWQ10G/TR
₹230.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.875MHz
- Function
- Inverted
- Features
- Soft-start;Adaptive switching frequency;Overcurrent Protection
- Operating Voltage
- 2.3V~5.5V
- Output Current
- 265mA
- Output Voltage
- -5.5V~-2.3V
- Quiescent Current
- 170uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The SGM2058 is a negative-output charge pump with an internal adjustable regulator. The input voltage range is 2.3V to 5.5V, and the unregulated output equals -VIN. For the regulated output of the SGM2058, it equals -VCTL, ranging from 0V to -VIN. The SGM2058's internal soft-start circuit reduces inrush current. For the application, four ceramic capacitors are required with no inductors needed, suitable for powering optical modules, RF amplifier biasing, and sensors. The SGM2058 is available in a Green TQFN-1.8×1.4-10L package with an operating temperature range of -40°C to +125°C.
Applications
- Optical applications
- RF amplifier biasing
- Sensor power supply in portable devices
Key features
- Input voltage range: 2.3V to 5.5V
- Dual outputs:
- VOUT1: -VIN (unregulated negative charge pump output)
- VOUT2: -VCTL regulated between 0V and -VIN
- Output current limit: 265mA (typical)
- Stable operation with small ceramic capacitors
- Thermal shutdown protection
- No inrush current at startup
- Operating temperature range: -40℃ to +125℃
- Green TQFN-1.8×1.4-10L package
