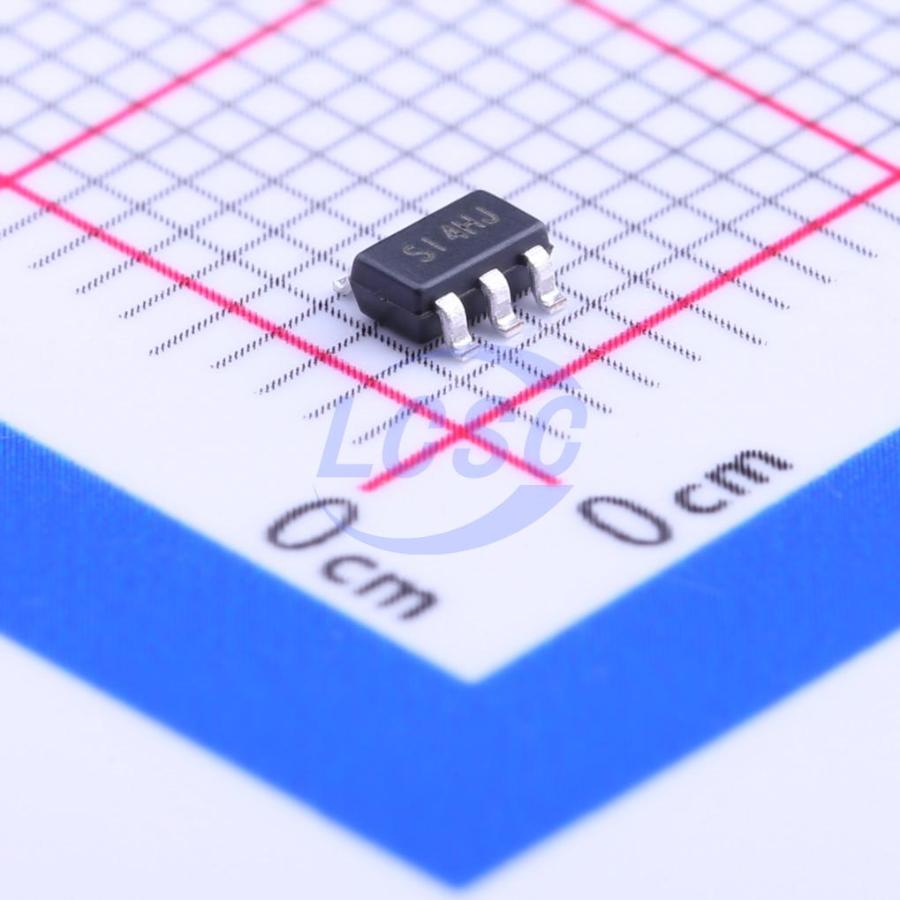

SGM2554AYN5G/TR

The SGM2554 is a single-channel power distribution switch. The switch operates over a wide supply voltage range of 2.2V to 5.5V and is controlled by the EN pin. It can be used in USB power distribution applications. The device integrates an N-MOSFET with an on-resistance of 95mΩ. The small size and low quiescent current make the device ideal for space-constrained battery-powered applications. The device features multiple protection functions, including soft-start, 1.85A current limiting, and thermal shutdown. The internal reverse voltage protection function protects devices on the switch input side. The SGM2554 is available in a RoHS-compliant SOT-23-5 package and operates over a temperature range of -40℃ to +85℃.

Applications

• Digital TV
• Set-top box
• Portable medical devices
• Battery-powered devices
• Hot-swap power supplies

Key features

• Input voltage range: 2.2V to 5.5V
• On-resistance: 95mΩ (typical)
• Continuous current: 1.1A
• Current limit: 1.85A
• Quiescent current: 19μA (typical)
• Shutdown current: 1μA (maximum)
• Full suite of protection features
• Soft-start
• Input undervoltage lockout
• No reverse leakage current
• Thermal shutdown
• Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC, Test Procedure 1 with CB report
• RoHS-compliant SOT-23-5 package
