SGMICRO

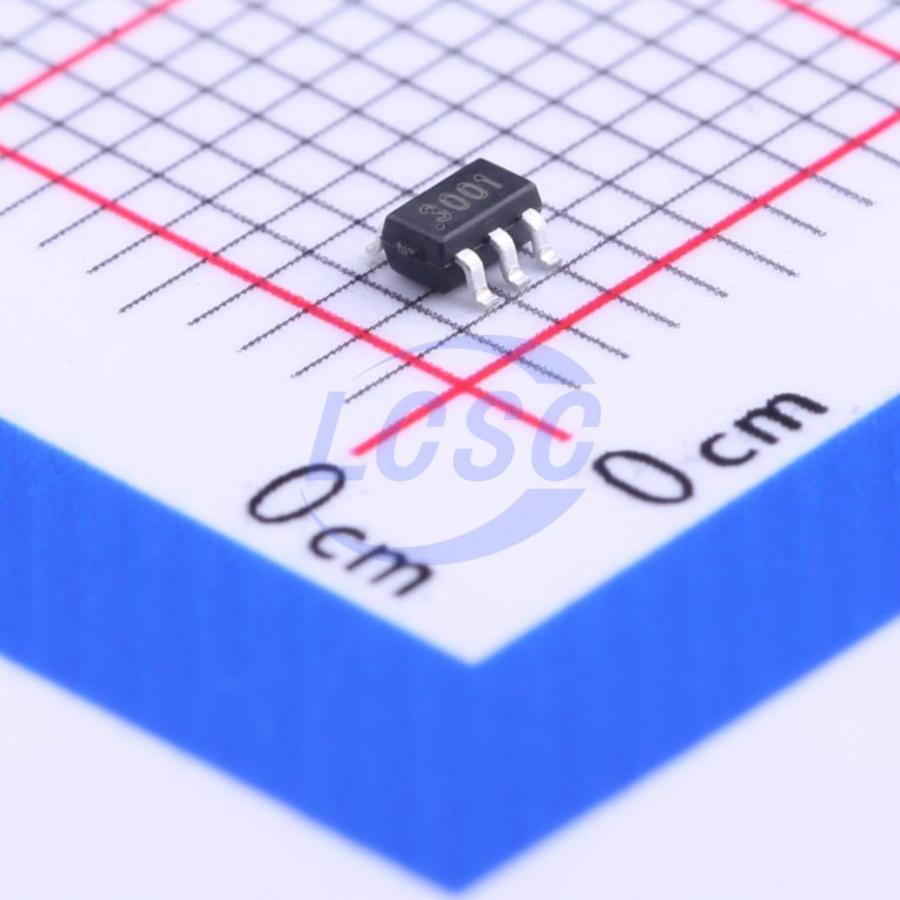

SGM3001XC6/TR

2.5Ω 1 1.8V~5.5V SC70-6 Analog Switches, Multiplexers, Demultiplexers

SC70-6RoHSActive

Low ON-Resistance, Low Voltage, SPDT Analog Switch

Manufacturer: SGMICRO
Manufacturer part #: SGM3001XC6/TR
Store part #: C79910
Package / case: SC70-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,697 in stock

#C79910

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹77.77	₹77.77
10+	₹58.00	₹580.00
30+	₹49.53	₹1,485.90
100+	₹39.11	₹3,911.00

Quantity (min 1)

1 × ₹77.77

₹77.77

excl. GST

₹91.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM3001XC6/TR

₹77.77 for 1 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+125℃
Ron: 2.5Ω
Number of Channels: 1
Voltage - Supply: 1.8V~5.5V
Con: 53pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.031 g

Overview

The SGM3001 (single) and SGM3002 (dual) are bidirectional, low on-resistance, low voltage, single-pole/double-throw (SPDT) CMOS analog switches designed to operate from a single +1.8V to +5.5V supply. Targeted applications include battery powered equipment that benefit from low RON (2.5Ω) and fast switching speeds SGM3001 (tON = 11ns, tOFF = 30ns) and SGM3002 (tON = 11ns, tOFF = 8ns).
