SGMICRO

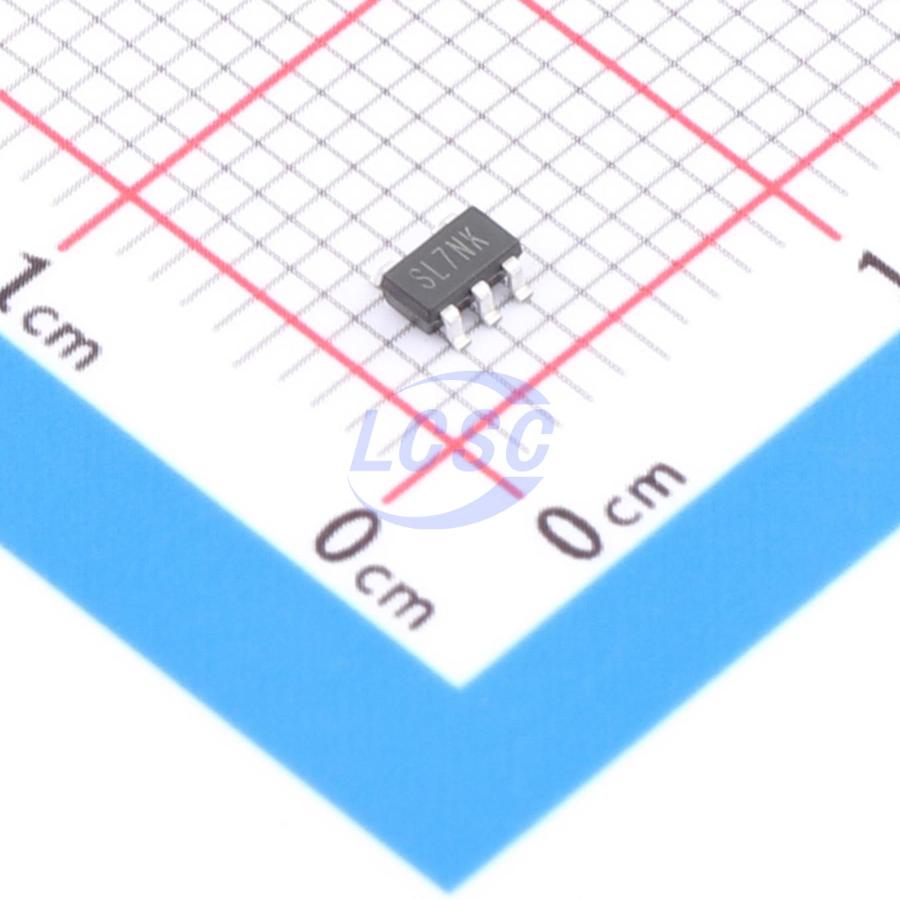

SGM3206YN5G/TR

Inverted 47kHz -5.5V~-1.4V 60mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

Unregulated 60mA Charge Pump Voltage Inverter

Manufacturer: SGMICRO
Manufacturer part #: SGM3206YN5G/TR
Store part #: C4153153
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,053 in stock

#C4153153

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
1+	₹160.57	₹160.57
10+	₹123.41	₹1,234.10
30+	₹104.82	₹3,144.60
100+	₹86.23	₹8,623.00

Quantity (min 1)

1 × ₹160.57

₹160.57

excl. GST

₹189.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM3206YN5G/TR

₹160.57 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Inverted
Frequency - Switching: 47kHz
Features: Charge pump / inverting topology switching
Operating Voltage: 1.4V~5.5V
Output Voltage: -5.5V~-1.4V
Output Current: 60mA
Quiescent Current: 166uA
Energy Efficiency: 85%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.097 g

Overview
