SGMICRO

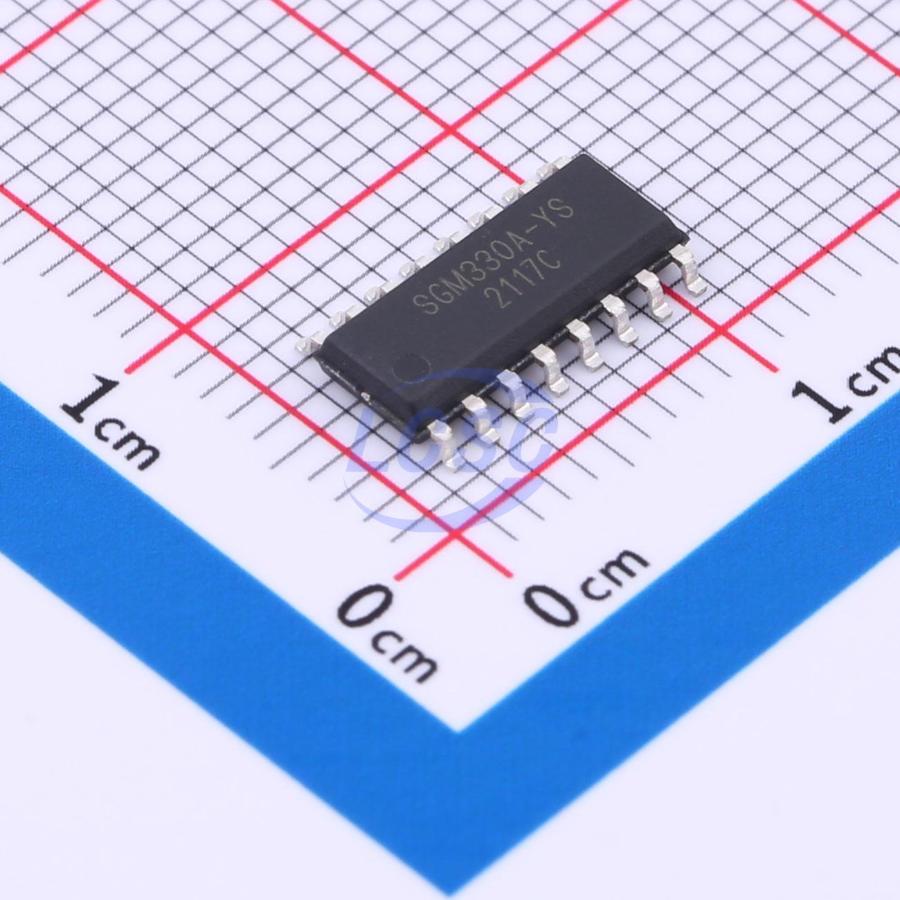

SGM330A-YS/TR

2.7V~5.5V 12Ω 4 SOIC-16 Analog Switches, Multiplexers, Demultiplexers

SOIC-16RoHSActive

Quad, Wide-Bandwidth SPDT Video Analog Switch

Manufacturer: SGMICRO
Manufacturer part #: SGM330A-YS/TR
Store part #: C700204
Package / case: SOIC-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,016 in stock

#C700204

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹80.66	₹80.66
10+	₹62.01	₹620.10
30+	₹52.70	₹1,581.00
100+	₹43.37	₹4,337.00

Quantity (min 1)

1 × ₹80.66

₹80.66

excl. GST

₹95.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SGM330A-YS/TR

₹80.66 for 1 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.7V~5.5V
Ron: 12Ω
Number of Channels: 4
Con: 8pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.35 g

Overview

The SGM330A is a quad, bidirectional, single-pole/double-throw (SPDT), TTL/CMOS compatible video analog switch. It operates from a 2.7V to 5.5V single power supply. The SGM330A features low crosstalk, low on-resistance and fast switching times. The SGM330A also has the advantages of high current and wide bandwidth (500MHz). The high performances make it very suitable for high frequency applications, such as video editors, audio and video signal routing, etc. In addition, low cost is also one of the important reasons that make the SGM330A a good choice. The SGM330A is available in Green SOIC-16, TSSOP-16 and SSOP-16 packages. It operates over an ambient temperature range of -40°C to +85°C.
