SGMICRODatasheet (PDF)

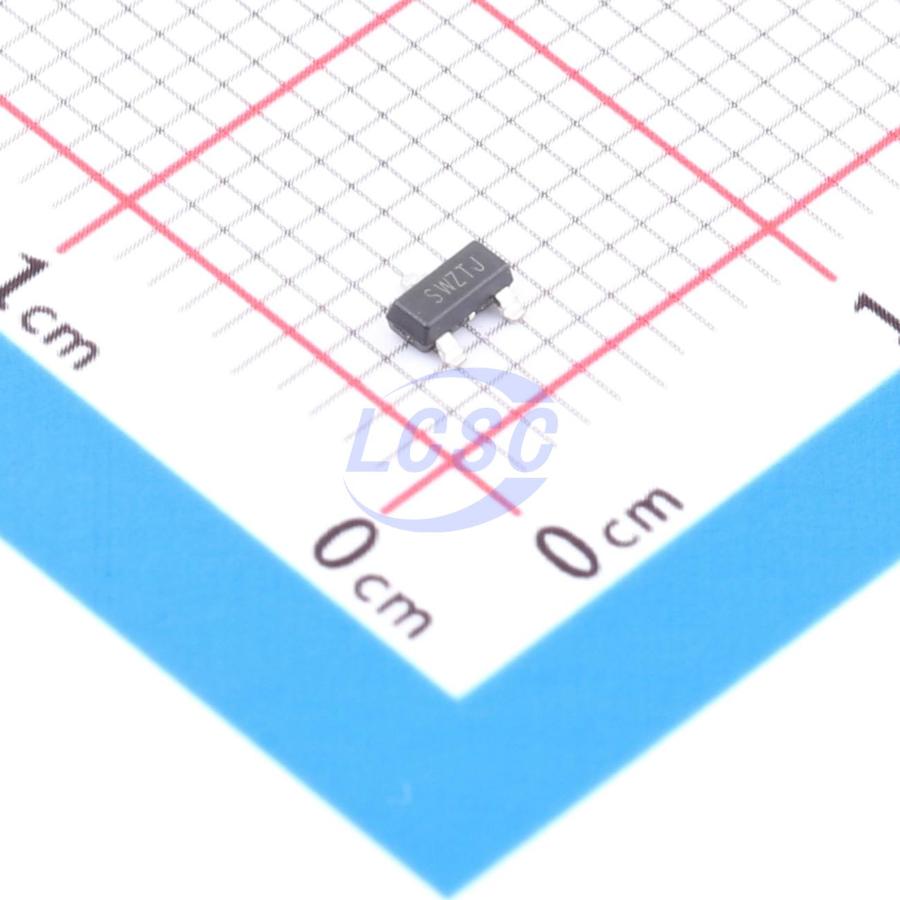

SGM4027-2.5XN3LG/TR
2.5V ±0.1% 2.7V~5.5V 10mA Fixed SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM4027-2.5XN3LG/TR
- Store part #
- C5152066
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,833 in stock
#C5152066
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹235.79 | ₹235.79 |
| 10+ | ₹193.65 | ₹1,936.50 |
| 30+ | ₹167.28 | ₹5,018.40 |
| 100+ | ₹140.26 | ₹14,026.00 |
1 × ₹235.79
₹235.79
excl. GST
₹278.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM4027-2.5XN3LG/TR
₹235.79 for 1 + GST
Specifications
- Quiescent Current
- 245uA
- Output Voltage
- 2.5V
- Tolerance
- ±0.1%
- Voltage - Supply
- 2.7V~5.5V
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Noise - 10Hz to 10kHz
- 29.8uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The SGM4027 is a precision, low power, low noise and low dropout voltage reference, which is designed to offer low temperature drift and high initial accuracy while consuming only 245μA (TYP) quiescent current.
Applications
- Temperature and Pressure Transmitters
- Handheld Test Equipment
- Precision Data-Acquisition Systems
- Portable Devices
- Battery-Powered Equipment
- Medical Instrumentation
Key features
- Low Dropout Voltage: 0.2V (MAX)
- High Output Current: 10mA (MAX)
- Limited Output Current: 25mA
- Stable Output CLoad Range: 2μF to 22μF
- High Initial Accuracy: 0.1% (MAX)
- Low Temperature Drift: 35ppm/℃ (MAX) from -40°C to +125°C
- Low Quiescent Current: 245μA (TYP)
- -40°C to +125°C Operating Temperature Range
- Available in a Green SOT-23 Package
