SGMICRODatasheet (PDF)

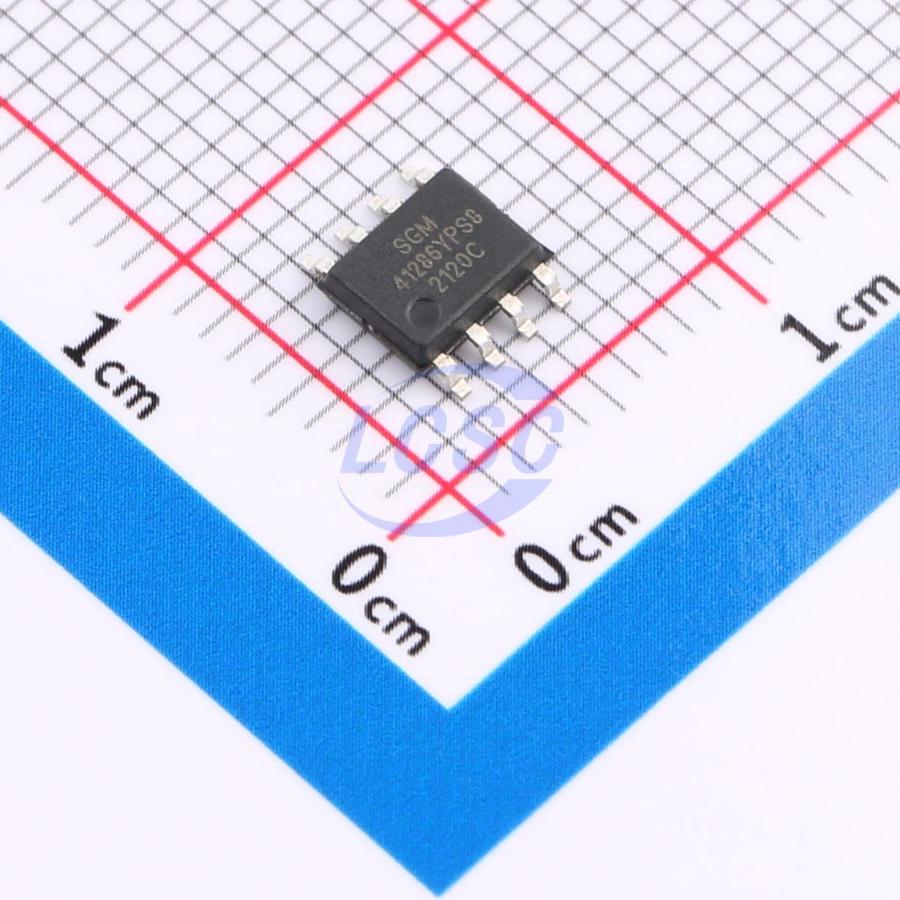

SGM41286YPS8G/TR
Boost Fixed 500mA SOIC-8-EP Voltage Regulators - DC DC Switching Regulators
SOIC-8-EPRoHSActive
High Efficiency Boost Power Supply and Linear Regulator
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM41286YPS8G/TR
- Store part #
- C699540
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,878 in stock
#C699540
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.81 | ₹128.81 |
| 10+ | ₹96.18 | ₹961.80 |
| 30+ | ₹82.13 | ₹2,463.90 |
| 100+ | ₹64.84 | ₹6,484.00 |
1 × ₹128.81
₹128.81
excl. GST
₹152.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM41286YPS8G/TR
₹128.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Boost
- Frequency - Switching
- 22kHz;1.41MHz
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 7V~14V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 14V;19V
- Output Current
- 500mA
- Quiescent Current
- 60uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
This device is a high efficiency boost power supply which converts 12V nominal input to 14V/19V nominal output, plus a linear regulation stage for tone signal transmission. It can repeat the external 22kHz tone input symmetrically or synthesize a 22kHz tone signal upon external on/off control. Pulsing on its EN initiates -1V/+0.4V drop compensation, making it suitable for where external surge absorbing devices are used at the output and for long cable installation. The SGM41286 is available in Green TDFN-3x3-8L and SOIC-8 (Exposed Pad) packages. It operates over an ambient temperature range of -40°C to +85°C.
Applications
- STB Satellite Receiver
- TV Satellite Receiver
- PC Card Satellite Receiver
Key features
- 7V to 14V Input Voltage
- 500mA 14V/19V Output
- DiSEqC 1.X Compatible
- Programmable -1V/+0.4V Drop Compensation
- High Efficiency Low Head Room Architecture
- Acoustic Noise Free Low Power Operation
- Automatic Tone Repeater or Tone Synthesizer
- LDO Output and Low Out-of-Band Noise
- Internal Short-Safe Over-Current Protection
- Internal Over-Temperature Protection
- 200ms Current Limit Loading Surge Window
- Available in Green TDFN-3x3-8L and SOIC-8 (Exposed Pad) Packages
- -40°C to ±85°C Operating Temperature Range
