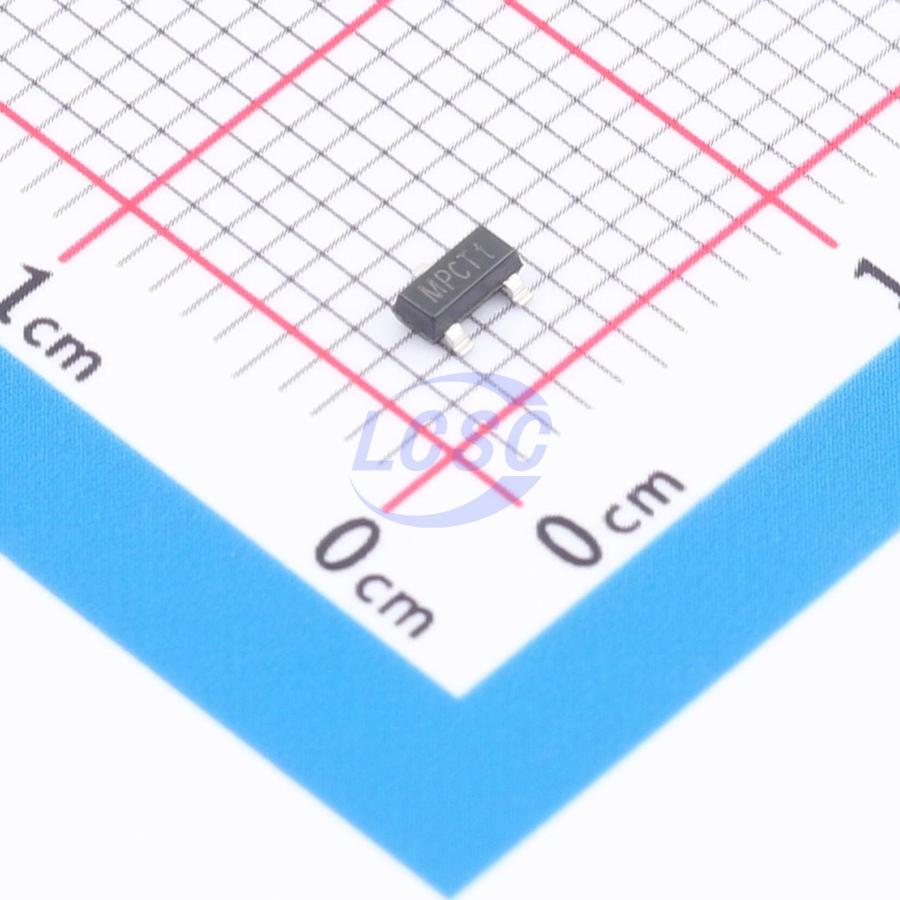

SGM431XN3LG/TR
2.5V~36V ±1% 2.5V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
SGM431x Precision Programmable Shunt Voltage Reference
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM431XN3LG/TR
- Store part #
- C700146
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C700146
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.53 | ₹142.65 |
| 50+ | ₹21.31 | ₹1,065.50 |
| 150+ | ₹18.20 | ₹2,730.00 |
| 500+ | ₹14.34 | ₹7,170.00 |
5 × ₹28.53
₹142.65
excl. GST
₹168.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM431XN3LG/TR
₹142.65 for 5 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
The SGM431x is a precision programmable shunt voltage reference that can be used in many applications. It is a three - terminal adjustable - output device that can keep stable under all capacitive loads. It requires two external capacitors in application to set the output voltage is to any value between VREF and 36V. All versions have a maximum operating current of 100mA. The SGM431x features low dynamic impedance, low noise, and low temperature coefficient to ensure a stable output voltage over a wide range of operating temperatures and currents. These high performances make it very suitable for multiple applications, such as precision audio components and flyback switching power supplies.
Applications
- Portable, Battery - Powered Equipment
- Voltage Monitoring
- Flyback Switching Power Supplies
- Instrumentation
- Product Testing
- Precision Audio Components
Key features
- Adjustable Output Voltage: VREF to 36V
- Sink - Current Capability: 1mA to 100mA
- Reference Voltage Tolerance at ±25°C:
- SGM431: 1% (Standard Grade)
- SGM431B: 0.5% (B Grade)
- Output Impedance: 0.1Ω (TYP)
- Temperature Drift: 5mV (TYP)
- High Stability under Capacitive Load
- Low Output Noise
- -40°C to +125°C Operating Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGM431BXN3LG/TR#C5152078SGMICRO · SOT-23 | SGMICRO | SOT-23 | 4,040 | ₹28.71 · 4,040 in stock | View |
