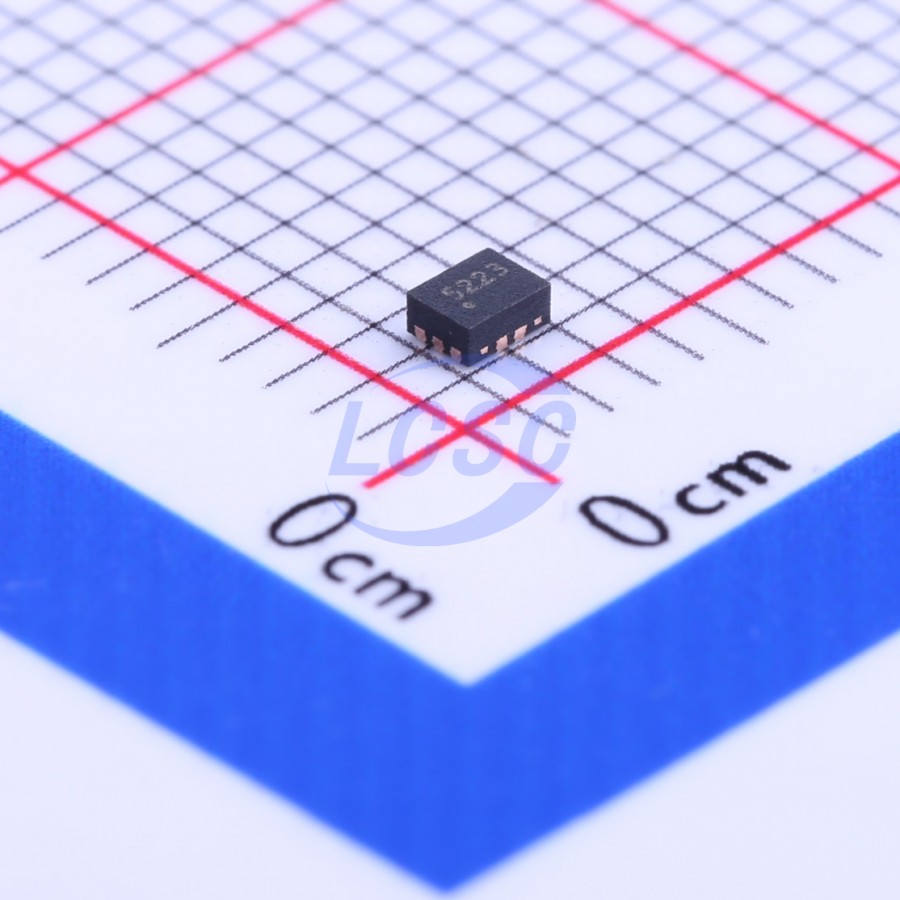

SGM5223YWQ10/TR

The SGM5223 is a dual single-pole double-throw (SPDT) analog switch. It operates from a 1.8V to 4.2V single supply. The SGM5223 features ultra-low on-resistance, low voltage operation, and fast switching time. These high-performance characteristics make it well-suited for a variety of applications, such as portable devices, audio and video signal routing. Additionally, with two normally-open and two normally-closed switches, the SGM5223 can be used as a dual 2-to-1 multiplexer. Low power consumption is another key factor that makes it an ideal choice. The SGM5223 is available in a Green TQFN-1.8×1.4-10L package and operates over a temperature range of -40°C to +85°C.

Applications

• Mobile phones
• Medical devices
• Computer peripherals
• Portable devices
• Audio and video signal routing

Key features

• Supply voltage range: 1.8V to 4.2V
• Ultra-low on-resistance: 0.5Ω typical at 4.2V
• Fast switching times at V₊ = 4.2V: turn-on time 17ns, turn-off time 27.5ns
• High off-isolation: -58dB at 1MHz
• Low crosstalk: -104dB at 1MHz
• Logic-compatible control: 1.8V
• Break-before-make switching
• Rail-to-rail input and output operation
• Operating temperature range: -40°C to +85°C
• Green TQFN-1.8×1.4-10L package
