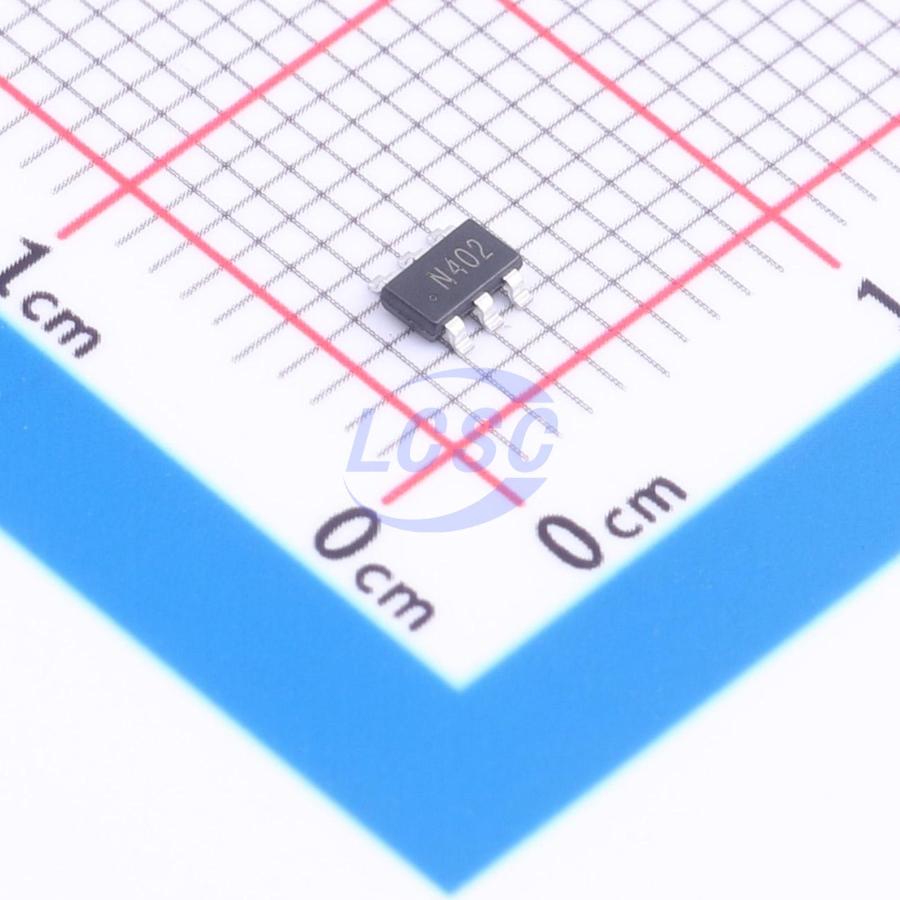

SGM61230XTN(TOKMAS)
500kHz Step-down type Adjustable TSOT-23-6 Voltage Regulators - DC DC Switching Regulators
TSOT-23-6RoHSActive
- Manufacturer
- Tokmas
- Manufacturer part #
- SGM61230XTN(TOKMAS)
- Store part #
- C54582191
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,219 in stock
#C54582191
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.26 | ₹81.26 |
| 10+ | ₹64.83 | ₹648.30 |
| 30+ | ₹56.62 | ₹1,698.60 |
| 100+ | ₹48.62 | ₹4,862.00 |
| 500+ | ₹43.66 | ₹21,830.00 |
| 1,000+ | ₹41.28 | ₹41,280.00 |
1 × ₹81.26
₹81.26
excl. GST
₹95.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM61230XTN(TOKMAS)
₹81.26 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Overcurrent Protection;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~28V
- Switch tube (built-in/external)
- Built-in
- Quiescent Current
- 140uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The SGM61230 is a synchronous buck regulator IC that integrates COT control, high-side and low-side power switches on a single chip to minimize switching losses and conduction losses. With ultra-low RDS(ON) power switches and proprietary COT control, this regulator IC achieves both maximum efficiency and maximum switching frequency simultaneously, minimizing external inductor and capacitor sizes and thus the overall solution footprint. Due to the high integration of the SGM61230 IC, application circuits based on this regulator IC are straightforward. For a given target application specification, only the input capacitor CIN, output capacitor COUT, output inductor L, and feedback resistors (R1 and R2) need to be selected.
Applications
- Portable navigation devices
- Set-top boxes
- Portable televisions
- LCD TVs
Key features
- Internal switches (high-side/low-side) low R<sub>DS(ON)</sub>: 80mΩ/40mΩ, 3.0A
- Input voltage range: 4.5 - 28V
- High-efficiency synchronous mode
- Internal soft-start for inrush current limiting
- Overcurrent protection
- Output short-circuit protection with hiccup
- Thermal shutdown
- TSOT23-6 package
