SGMICRODatasheet (PDF)

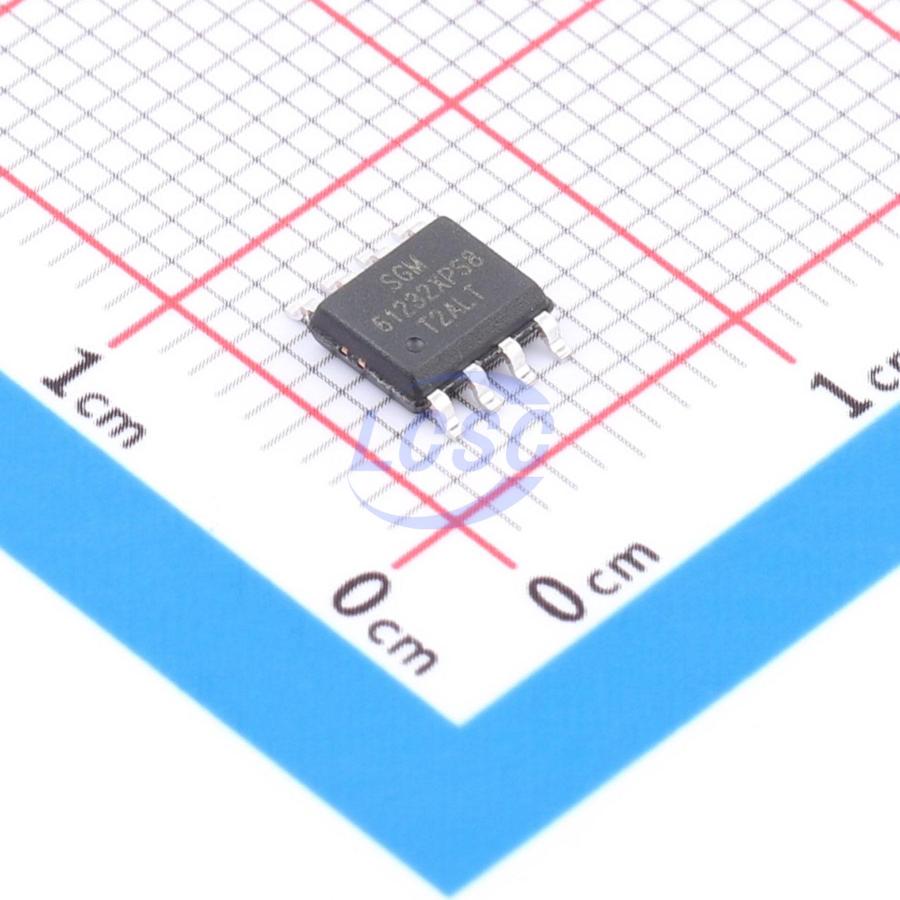

SGM61232XPS8G/TR
540kHz Step-down type Adjustable 800mV~25V 3A SOIC-8 Voltage Regulators - DC DC Switching Regulators
SOIC-8RoHSActive
28V 3A Buck DC/DC Converter
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM61232XPS8G/TR
- Store part #
- C5153620
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,824 in stock
#C5153620
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹230.39 | ₹230.39 |
| 10+ | ₹183.92 | ₹1,839.20 |
| 30+ | ₹158.42 | ₹4,752.60 |
| 100+ | ₹129.46 | ₹12,946.00 |
1 × ₹230.39
₹230.39
excl. GST
₹271.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM61232XPS8G/TR
₹230.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 540kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Light load efficient mode;Adjustable soft-start;Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~28V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~25V
- Output Current
- 3A
- Quiescent Current
- 120uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
The SGM61232 is a 28V Buck converter with integrated N-MOSFET power switch and 3A continuous output current capability. Using peak current mode control and operating at fixed PWM frequency, this device provides good line and load transient responses with reduced output capacitance and simple compensation. The minimum operating input voltage of the device is 4V and its nominal frequency is 540kHz. The output voltage can be set down to 0.8V (reference voltage). Typical no-load operating current is 120μA. It reduces to 1.2μA if the device is disabled. The low RDSON high-side switch
Applications
- Industrial Power Supplies
- Distributed Power Systems
- CPE Equipment
- Set-Top Boxes
- LCD Displays
- Battery Chargers
Key features
- 4V to 28V Input Voltage Range
- 0.8V Internal Voltage Reference
- 0.8V to 25V Adjustable Output Voltage Range
- Integrated 77mΩ High-side MOSFET Supports up to 3A Continuous Output Current
- Fixed 540kHz Switching Frequency
- Typical 1.2μA Shutdown Quiescent Current
- High Light Load Efficiency
- Adjustable Soft-Start to Limit Inrush Current
- Programmable UVLO Threshold
- Over-Voltage Transient Protection
- Cycle-by-Cycle Current Limit
- Frequency Fold-Back Protection
- Thermal Shutdown Protection
- Available in the Green SOIC-8 (Exposed Pad) and SOIC-8 Packages
