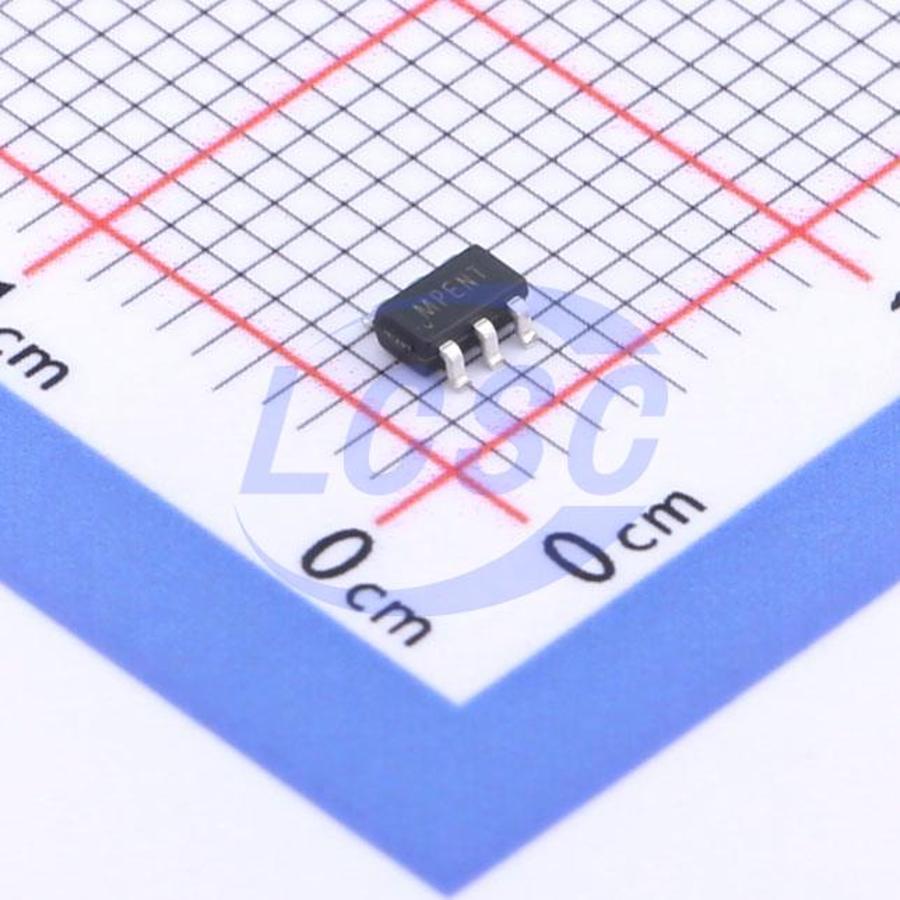

SGM61410XN6G/TR

The SGM61410 is a high frequency, synchronous step-down converter with integrated switches. It can deliver up to 600mA to the output over a wide input voltage range of 5V to 42V. It is suitable for various industrial or automotive applications with high input voltage or for power conditioning from unregulated sources. Moreover, the low 14μA quiescent current and ultra-low shutdown current of only 0.6μA make it a suitable choice for battery-powered applications. SGM61410 features high efficiency over a wide load range achieved by scaling down the switching frequency at light loads to reduce switching and gate driving losses. Other features include internal compensation, internal monotonic soft-start even with pre-biased output and fast loop response thanks to the peak-current mode controller. Switching at 1.2MHz, the SGM61410 can prevent EMI noise problems, such as the ones found in AM radio, ADSL and PLC applications. Protection features include current limiting and shortcircuit protection, thermal shutdown with auto recovery and output over-voltage protection. Frequency fold-back helps prevent inductor current runaway during startup. SGM61410 is available in a Green SOT-23-6 package. It operates over a wide ambient temperature range of -40°C to +125°C.

Applications

• High Voltage Power Conversions
• Automotive Systems
• Industrial Power Systems
• Distributed Power Systems
• Battery Powered Systems
• Power Meters

Key features

• Wide 5V to 42V Operating Input Voltage Range
• 0.8V Internal Reference
• Low Quiescent Current: 14μA (TYP)
• Shutdown Current: 0.6μA (TYP)
• Current Output up to 600mA
• 1.2MHz Switching Frequency
• Internal Compensation and Soft-Start Simple Design and Minimal External Components
• Up to 95% Efficiency at 12V/400mA
• 0.8V to 20V Adjustable Output Voltage
• Current Limit and Short-Circuit Protection
• Output Over-Voltage Protection and Thermal Shutdown
• Power-Save Mode and PWM Mode Operation
• Monotonic Startup with Pre-biased Output
• 90% Maximum Duty Cycle
• Available in a Green SOT-23-6 Package
• -40°C to +125°C Operating Temperature Range
