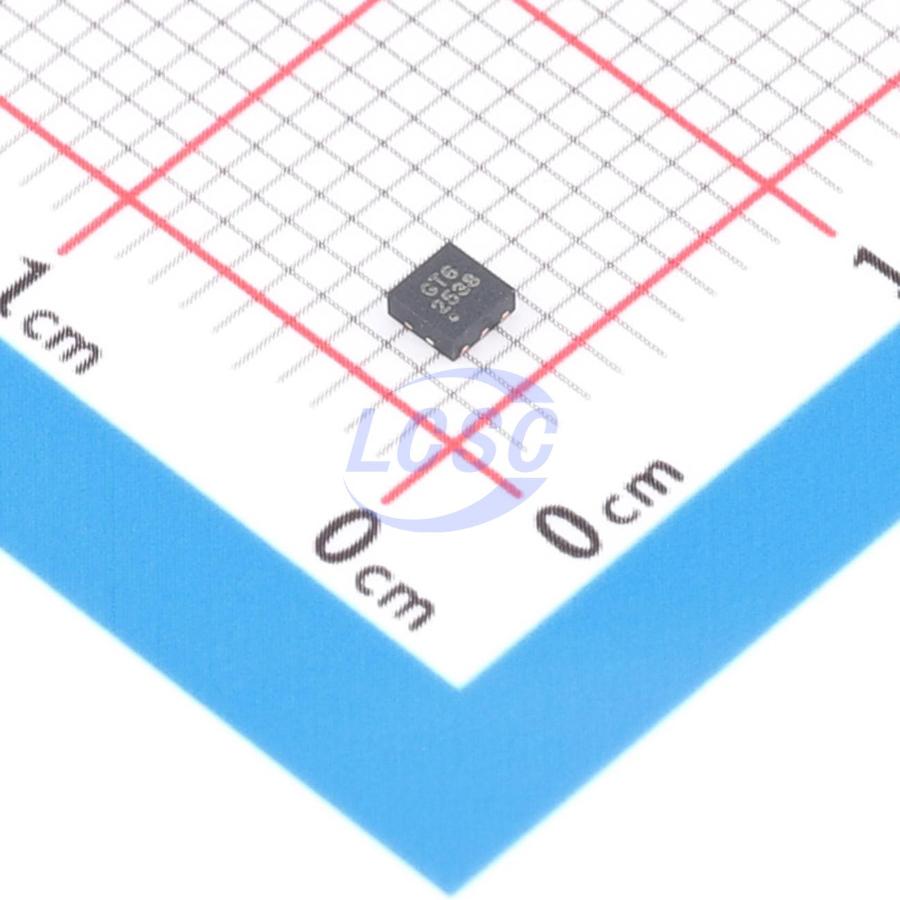

SGM6602-12YTDI6G/TR

The SGM6602 is a fully-integrated synchronous Boost converter which integrates a 20V main power switch and an input/output isolation switch. The isolation switch provides true load disconnection when SGM6602 is in shutdown mode. The SGM6602 is capable to start up from 1.8V to 5.5V input. The device can provide up to 20V output voltage which makes it an excellent choice for PMOLED panel bias and applications requiring high voltage in a small solution size. The SGM6602 has the internal fixed 9V or 12V (different ordering part) default output voltage setting by connecting the FB pin to the VIN pin. The SGM6602 has 900mA typical switch current limit. The package of SGM6602 is suitable to a tiny size solution. And small energy storage elements (inductor and capacitor) can be used since the high frequency (1.1MHz) switching converter. The SGM6602 implements various protection features to improve device robustness, such as short-circuit protection, output over-voltage protection and thermal shutdown. The SGM6602 is available in Green WLCSP-0.8×1.2–6B and TDFN-2×2-6AL packages.

Applications

• PMOLED and Sensor Power Supplies
• Wearable Devices
• Portable Medical Equipment

Key features

• 1.8V to 5.5V Operating Input Voltage Range
• Up to 20V Output Voltage
• Up to 85% Efficiency at 3.6V Input and 12V Output
• 900mA (TYP) Switch Current
• Internal 5ms Soft-Start Time
• Less than 1μμ Ultra-Low Shutdown Current
• Integrated Isolation Switch
• Power-Save Mode at Light Load
• Input and Output are Disconnected during Shutdown
• Output Short-Circuit and Over-Voltage Protections
• Thermal Shutdown
• Available in Green WLCSP-0.8×1.2-6B and TDFN-2×2-6AL Packages
