SGMICRODatasheet (PDF)

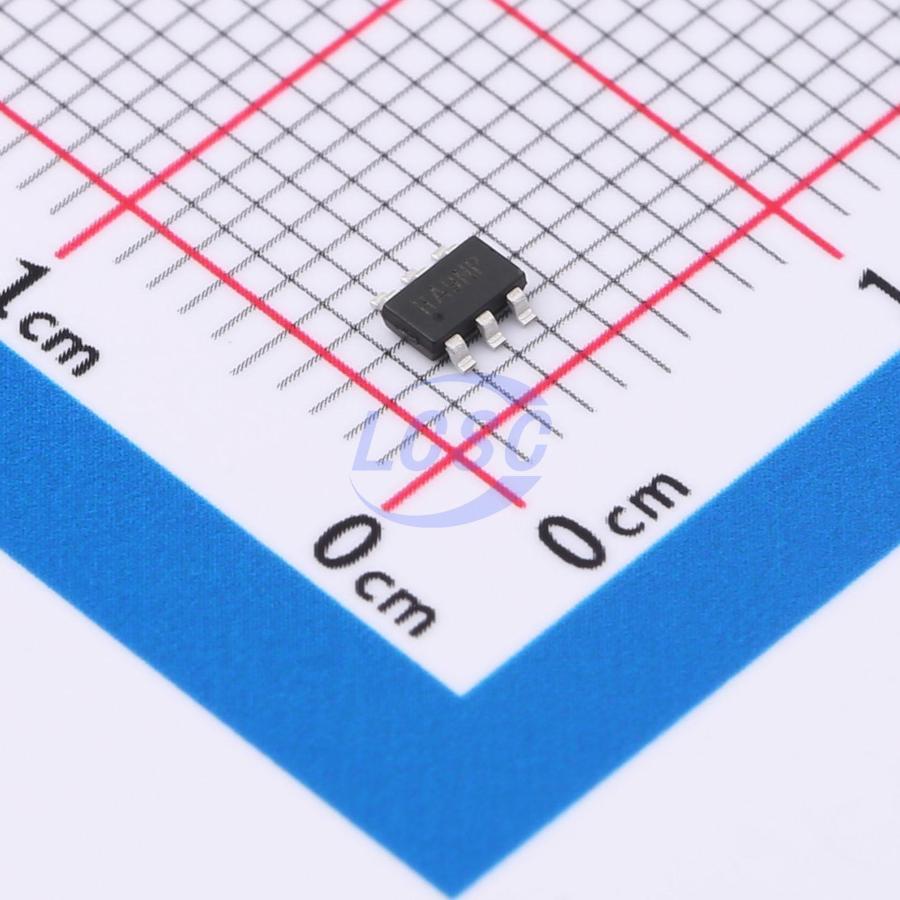

SGM6607AYTN6G/TR
1.1MHz Boost Adjustable 3.3V~38V 1.2A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators
TSOT-23-6RoHSActive
1.2A High Voltage Boost Converter
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM6607AYTN6G/TR
- Store part #
- C2978679
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,154 in stock
#C2978679
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.11 | ₹193.11 |
| 10+ | ₹154.01 | ₹1,540.10 |
| 30+ | ₹132.72 | ₹3,981.60 |
| 100+ | ₹108.39 | ₹10,839.00 |
1 × ₹193.11
₹193.11
excl. GST
₹227.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM6607AYTN6G/TR
₹193.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.1MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Cycle-by-cycle current limiting;External compensation;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost;SEPIC
- Operating Voltage
- 3V~20V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V~38V
- Output Current
- 1.2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
The SGM6607A is a monolithic high voltage switching regulator with integrated 1.2A, 40V power MOSFET. This device can be configured in several standard switching regulator topologies, including boost and SEPIC. The device has a wide input voltage range to support applications with input voltage from multi - cell batteries or regulated 5V, 12V power rails. The SGM6607A operates at a 1.1MHz switching frequency, allowing the use of low - profile inductors and low - value ceramic input and output capacitors. External loop compensation components give the user flexibility to optimize loop compensation and transient response. The device has built - in protection features, such as cycle - by - cycle over - current limit, soft - start and thermal shutdown. The SGM6607A is available in Green TDFN - 2x2 - 6AL and TSOT - 23 - 6 packages and is rated over the - 40℃ to + 85℃ temperature range.
Applications
- Cell Phones
- Portable Equipment
Key features
- 3V to 20V Input Voltage Range
- High Output Voltage: Up to 38V
- 1.2A Integrated Switch
- 1.1MHz Fixed Switching Frequency
- 12V at 300mA and 24V at 150mA from 5V Input
- Up to 93% Efficiency Skip - Switching for Light Load
- Built - in Soft - Start Function
- 500kΩ Pull - Down Resistor on EN Pin
- - 40°C to ±85°C Operating Temperature Range
- Available in Green TDFN - I×Q - 6AL and TSOT - 23 - 6 Packages
