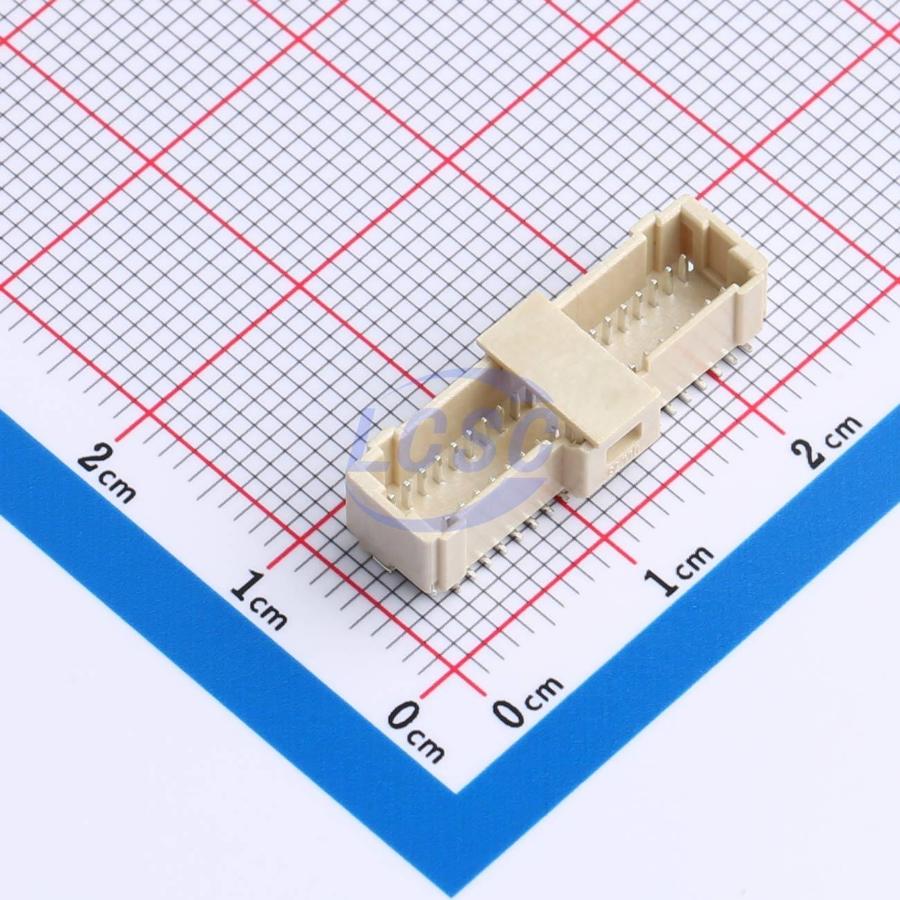

SHB-40AB-M DLL
DLL

SHB-40AB-M

Connector Header 1mm Pitch 1A Surface Mount,Vertical -35℃~+105℃

SMD,P=1mmROHS CompliantActive

CONN HEADER SMD 1mm

Manufacturer
DLL
Manufacturer part #
SHB-40AB-M
Store part #
C22370414
Package / case
SMD,P=1mm
Category
Headers, Male Pins
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

774 in stock

#C22370414

Stock & price checked 7 days ago

QuantityUnit pricePack price
1+₹128.25₹128.25
10+₹105.85₹1,058.50
30+₹93.58₹2,807.40
100+₹79.66₹7,966.00
500+₹73.34₹36,670.00
900+₹70.63₹63,567.00

1 × ₹128.25

₹128.25

excl. GST

₹151.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 900 per reel

SHB-40AB-M

₹128.25 for 1 + GST

Specifications

Connector Type
Surface Mount,Vertical
Reference Series
SHB
Voltage Rating (Max)
100V
Contact Material
Phosphor bronze
Number of PINs Per Row
20
Number of Rows
2
Pitch
1mm
Flame Retardant Rating
UL94V-0
Current Rating
1A
Supplementary Features
Auxiliary Solder Pin
Contact Plating
Tin
Number of PINs
40P
Operating Temperature
-35℃~+105℃
Plastic Material
LCP
Color
Beige
X-Length of Bottom Edge on Board (Spacing Line)
22.3mm
Row Spacing
2.66mm
Pin Structure
2x20P

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
900 / Reel
Sold per
Piece
Minimum order
1
Unit weight
1.132 g
