VISHAYDatasheet (PDF)

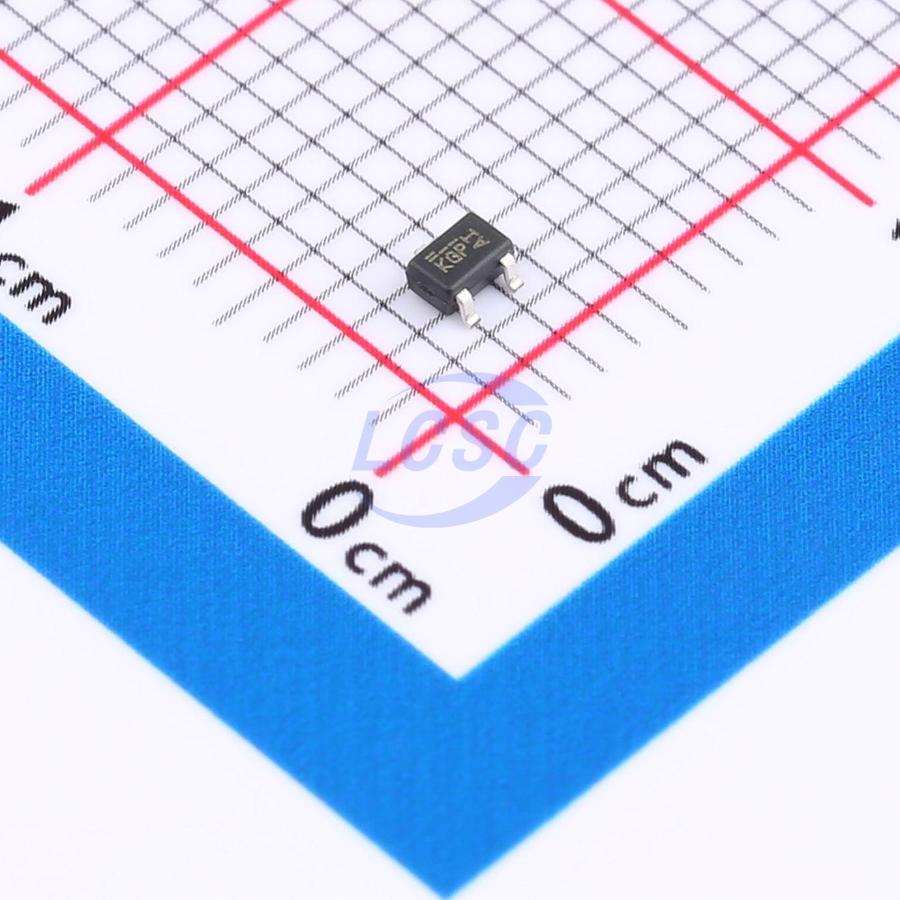

SI1308EDL-T1-BE3
N-Channel 30V 1.5A 0.5W Surface Mount SC-70-3
SC-70-3ROHS3 CompliantDiscontinued
MOSFET N-CH 30V 1.5A SC-70-3
- Manufacturer
- VISHAY
- Manufacturer part #
- SI1308EDL-T1-BE3
- Store part #
- C3289597
- Package / case
- SC-70-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
695 in stock
#C3289597
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.44 | ₹267.20 |
| 50+ | ₹43.26 | ₹2,163.00 |
| 150+ | ₹38.90 | ₹5,835.00 |
| 500+ | ₹33.46 | ₹16,730.00 |
| 3,000+ | ₹31.02 | ₹93,060.00 |
| 6,000+ | ₹29.57 | ₹1,77,420.00 |
5 × ₹53.44
₹267.20
excl. GST
₹315.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1308EDL-T1-BE3
₹267.20 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.5A
- Ciss-Input Capacitance
- 105pF
- Pd - Power Dissipation
- 500mW
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 132mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
These new Vishay Siliconix devices are intended for small - signal applications where a miniaturized package is needed and low levels of current (around 350 mA) need to be switched, either directly or by using a level shift configuration. Vishay provides these single devices with a range of on - resistance specifications and in both traditional 3 - pin and new 6 - pin versions. The new 6 - pin SC - 70 package enables improved on - resistance values and enhanced thermal performance compared to the 3 - pin package.
Applications
- Smart phones, tablet PC’s - DC/DC converters - Boost converters - Load switch, OVP switch
Key features
- TrenchFET power MOSFET
- 100 % Rg tested
- Typical ESD performance 1800 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI1308EDL-T1-GE3#C469327VISHAY · SOT-323 | VISHAY | SOT-323 | 38,820 | ₹38.38 · 38,820 in stock | View |
 | SI1308EDL#C7603347TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 6,830 | ₹11.34 · 6,830 in stock | View |
 | DMN3060LW-7#C6225376DIODES · SOT-323 | DIODES | SOT-323 | 50 | ₹16.35 · 50 in stock | View |
 | DMN3067LW-7#C212325DIODES · SOT-323 | DIODES | SOT-323 | 5,675 | ₹26.87 · 5,675 in stock | View |
 | DMN3067LW-13#C3280228DIODES · SOT-323 | DIODES | SOT-323 | 10 | ₹16.00 · 10 in stock | View |
