VBsemi ElecDatasheet (PDF)

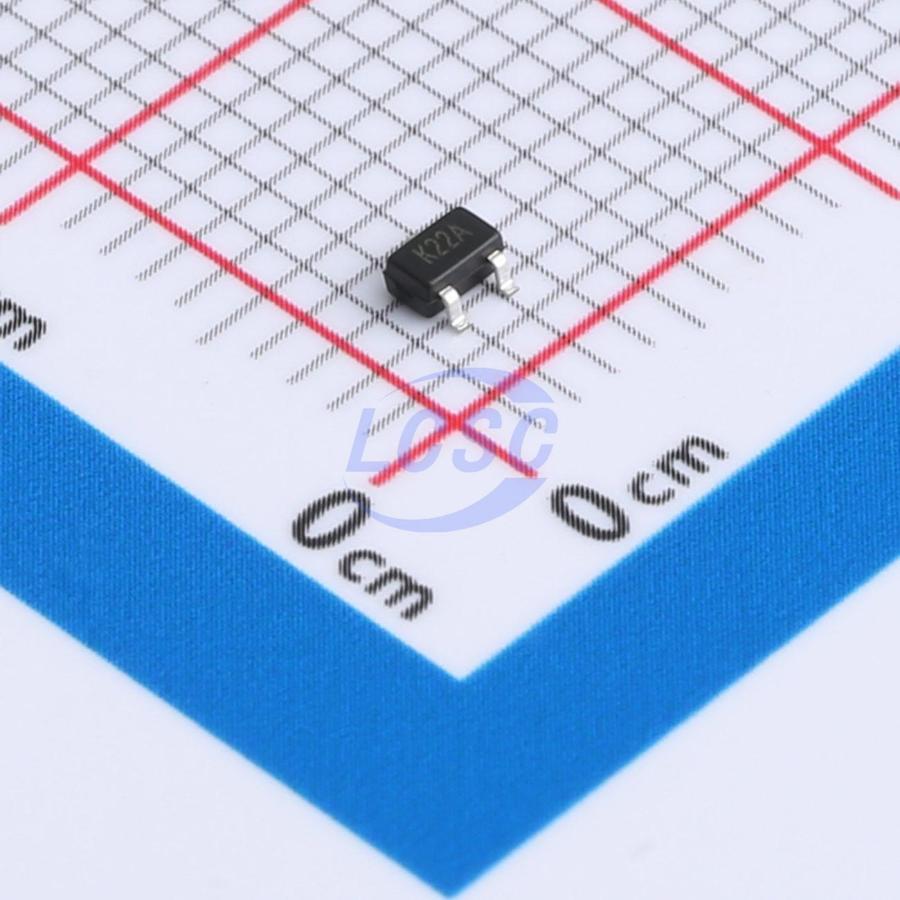

SI1315DL-T1-GE3-VB
P-Channel 20V 3.1A 0.5W Surface Mount SOT-323(SC-70)
SOT-323(SC-70)ROHS CompliantActive
MOSFET P-CH 20V 3.1A SOT-323(SC-70)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI1315DL-T1-GE3-VB
- Store part #
- C7568818
- Package / case
- SOT-323(SC-70)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7568818
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.47 | ₹77.35 |
| 50+ | ₹12.44 | ₹622.00 |
| 150+ | ₹10.93 | ₹1,639.50 |
| 500+ | ₹9.79 | ₹4,895.00 |
| 3,000+ | ₹7.87 | ₹23,610.00 |
| 6,000+ | ₹7.41 | ₹44,460.00 |
5 × ₹15.47
₹77.35
excl. GST
₹91.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1315DL-T1-GE3-VB
₹77.35 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 55pF
- Current - Continuous Drain(Id)
- 3.1A
- Ciss-Input Capacitance
- 272pF
- Pd - Power Dissipation
- 500mW
- Reverse Transfer Capacitance (Crss)
- 44pF
- RDS(on)
- 98mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 4.3nC@4.5V;2.7nC@2.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Load Switch - DC-DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
