VISHAYDatasheet (PDF)

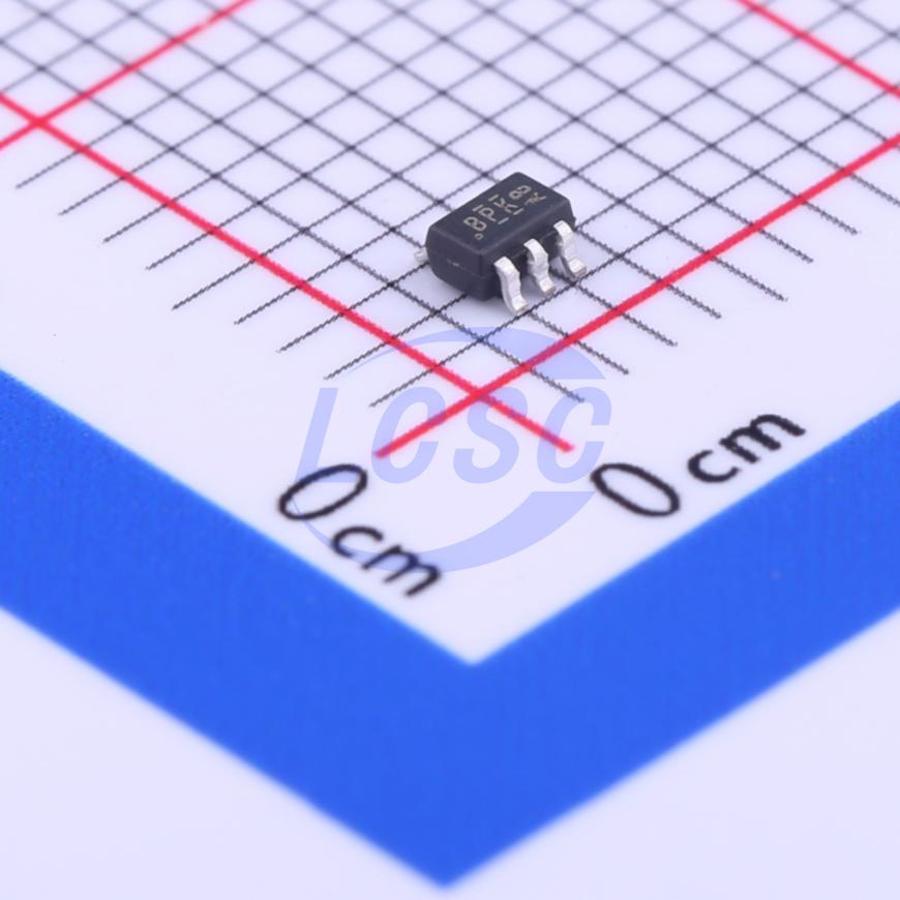

SI1401EDH-T1-GE3
12V 4A 2.8W 110mΩ@1.5V 1 P-Channel P-Channel SC-70-6(SOT-363) Single FETs, MOSFETs RoHS
SC-70-6(SOT-363)ROHS3 CompliantActive
MOSFET P-CH 12V 4A SC-70-6(SOT-363)
- Manufacturer
- VISHAY
- Manufacturer part #
- SI1401EDH-T1-GE3
- Store part #
- C183003
- Package / case
- SC-70-6(SOT-363)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C183003
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.61 | ₹67.61 |
| 10+ | ₹54.61 | ₹546.10 |
| 30+ | ₹49.19 | ₹1,475.70 |
| 100+ | ₹42.26 | ₹4,226.00 |
| 500+ | ₹39.23 | ₹19,615.00 |
| 1,000+ | ₹32.51 | ₹32,510.00 |
1 × ₹67.61
₹67.61
excl. GST
₹79.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1401EDH-T1-GE3
₹67.61 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 4A
- Pd - Power Dissipation
- 2.8W
- RDS(on)
- 110mΩ@1.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 14.1nC@8V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The new single-channel 6-pin SC-70 package with a copper lead frame delivers lower on-resistance and superior thermal performance compared to existing 3-pin and 6-pin packages using Alloy 42 lead frames. These devices are suited for small-to-medium load applications requiring miniaturized packaging. Multiple on-resistance values are available in this package, covering both N-channel and P-channel versions.
Applications
- Load switch, power amplifier switch, and battery switch for portable devices
- Mobile phones
- Digital SLR cameras
- Portable game consoles
- MP3
- GPS
Key features
- Halogen-free per IEC 61249-2-21
- TrenchFET power MOSFET
- Typical ESD performance: 1500 V
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDG316P-VB#C19188165VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 100 | ₹61.43 · 100 in stock | View |
 | SI1427EDH-T1-GE3-VB#C19188191VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 90 | ₹61.43 · 90 in stock | View |
 | NTJS3151PT1G-VB#C19711269VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 1 | ₹66.40 · 1 in stock | View |
 | SI1441EDH-T1-GE3-VB#C7494560VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 205 | ₹59.67 · 205 in stock | View |
 | PMN27UP-VB#C7494580VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 500 | ₹60.92 · 500 in stock | View |
