VISHAYDatasheet (PDF)

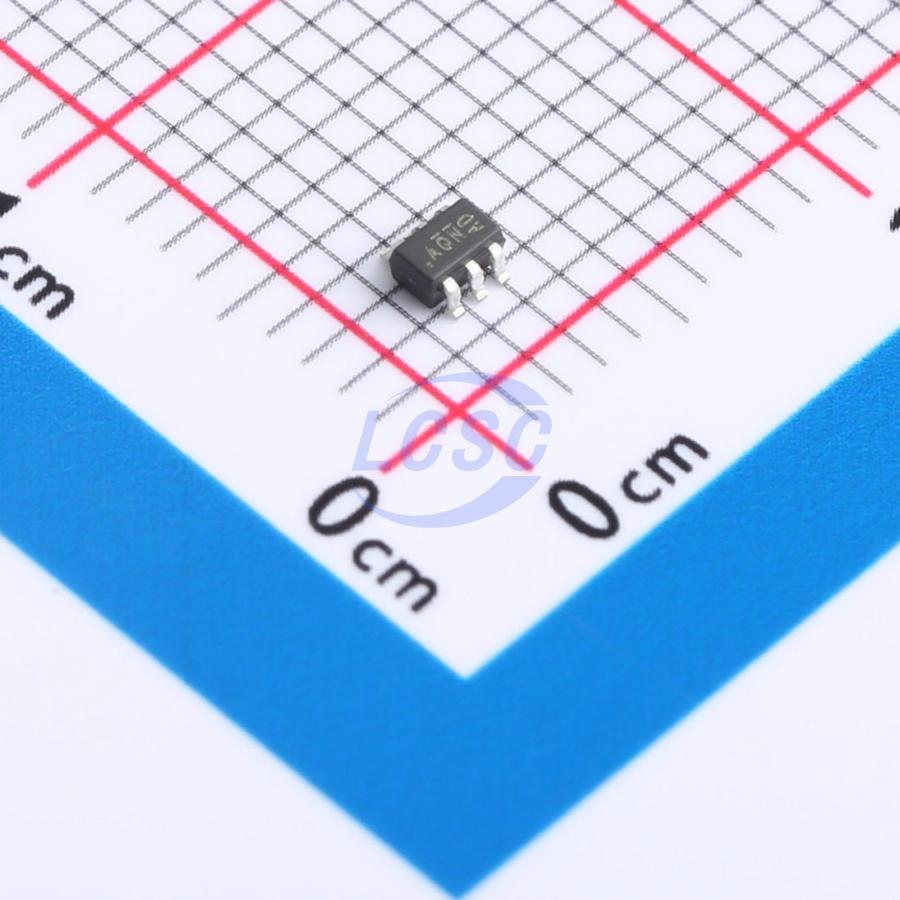

SI1424EDH-T1-GE3
N-Channel 20V 4A 1.56W Surface Mount SC-70-6
SC-70-6ROHS3 CompliantActive
MOSFET N-CH 20V 4A SC-70-6
- Manufacturer
- VISHAY
- Manufacturer part #
- SI1424EDH-T1-GE3
- Store part #
- C727284
- Package / case
- SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C727284
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹27.82 | ₹27.82 |
| 10+ | ₹26.95 | ₹269.50 |
| 30+ | ₹26.51 | ₹795.30 |
| 100+ | ₹26.08 | ₹2,608.00 |
1 × ₹27.82
₹27.82
excl. GST
₹32.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1424EDH-T1-GE3
₹27.82 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4A
- Pd - Power Dissipation
- 1.56W
- RDS(on)
- 33mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.017 g
Overview
The new single 6-pin SC-70 package with a copper leadframe enables improved on-resistance values and enhanced thermal performance as compared to the existing 3-pin and 6-pin packages with Alloy 42 leadframes. These devices are intended for small to medium load applications where a miniaturized package is required. Devices in this package come in a range of on-resistance values, in n-channel and p -channel versions.
Applications
- Portable devices - Load switch - Battery switch
Key features
- TrenchFET power MOSFET
- Typical ESD protection 4000 V
- 100 % Rg tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM20V2NC6#C48995596TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 175 | ₹13.45 · 175 in stock | View |
 | SQA410EJ-T1_GE3#C727351VISHAY · SC-70-6L | VISHAY | SC-70-6L | 109 | ₹92.97 · 109 in stock | View |
 | SI1406DH-T1-GE3-VB#C20626387VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 70 | ₹55.18 · 70 in stock | View |
 | VBK7322#C42412602VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 10 | ₹46.52 · 10 in stock | View |
 | FDMA430NZ-VB#C20755628VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 9 | ₹82.56 · 9 in stock | View |
