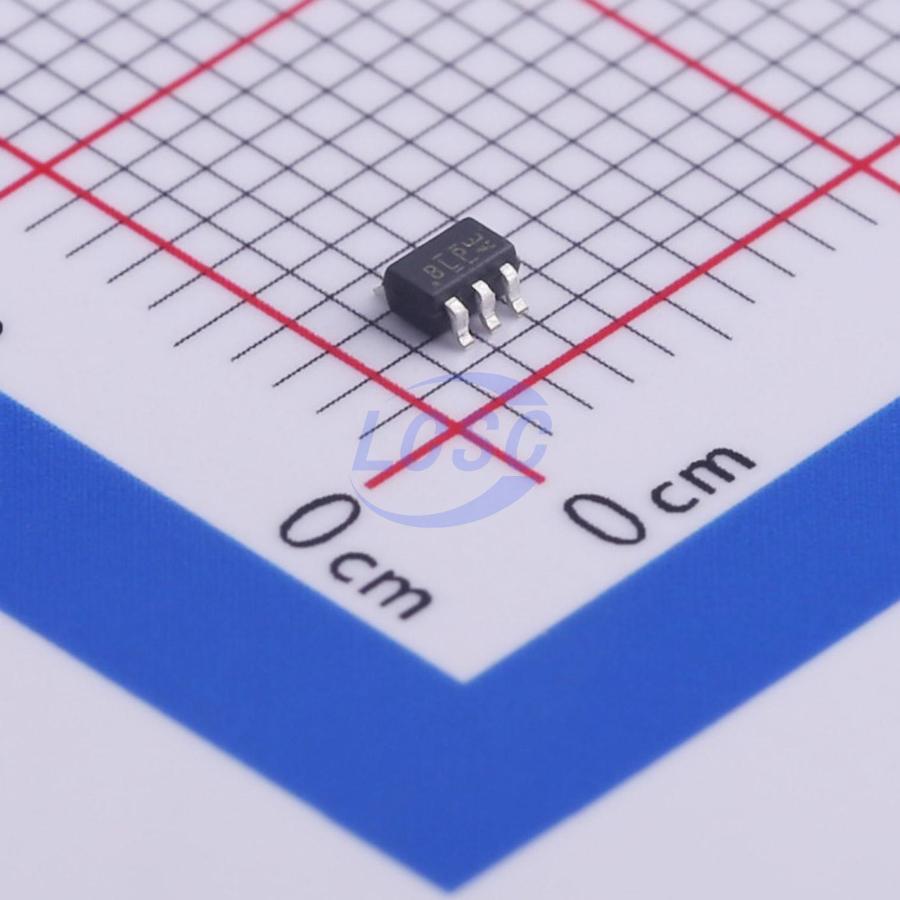

SI1469DH-T1-GE3
P-Channel 20V 2.7A 1.5W Surface Mount SC-70-6(SOT-363)
SC-70-6(SOT-363)ROHS3 CompliantActive
MOSFET P-CH 20V 2.7A SC-70-6(SOT-363)
- Manufacturer
- VISHAY
- Manufacturer part #
- SI1469DH-T1-GE3
- Store part #
- C467893
- Package / case
- SC-70-6(SOT-363)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C467893
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.55 | ₹123.55 |
| 10+ | ₹121.16 | ₹1,211.60 |
| 30+ | ₹119.57 | ₹3,587.10 |
| 100+ | ₹117.77 | ₹11,777.00 |
1 × ₹123.55
₹123.55
excl. GST
₹145.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1469DH-T1-GE3
₹123.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 105pF
- Ciss-Input Capacitance
- 470pF
- Pd - Power Dissipation
- 1.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.7A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 80mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.5nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
The new single 6-pin SC-70 package with a copper leadframe enables improved on-resistance values and enhanced thermal performance as compared to the existing 3-pin and 6-pin packages with Alloy 42 leadframes. These devices are intended for small to medium load applications where a miniaturized package is required. Devices in this package come in a range of on-resistance values, in n-channel and p -channel versions.
Applications
- RoHS COMPLIANT HALOGEN FREE Available
- Load Switch for Portable Devices
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDG328P-TP#C52145979TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 975 | ₹10.69 · 975 in stock | View |
 | FDG332PZ-TP#C52145980TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 1,000 | ₹10.69 · 1,000 in stock | View |
 | FDG330P-TP#C52145981TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 1,000 | ₹10.69 · 1,000 in stock | View |
 | FDG326P-TP#C52145982TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 900 | ₹10.62 · 900 in stock | View |
 | TPSI1469DH-T1-GE3#C52145983TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 1,000 | ₹10.69 · 1,000 in stock | View |
