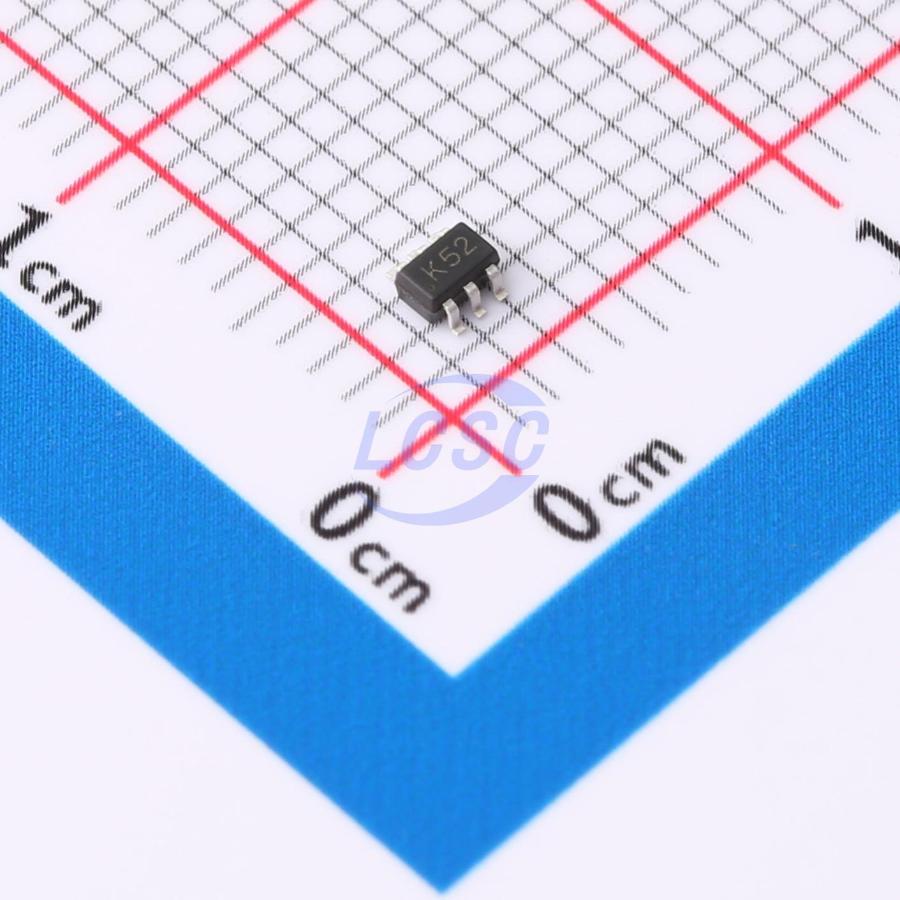

SI1563EDH-T1-GE3-VB
N-Channel+P-Channel 20V 3.28A 1.24W Surface Mount SC-70-6
SC-70-6RoHSActive
MOSFET N-CH+P-CH ARR 20V 3.28A SC-70-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI1563EDH-T1-GE3-VB
- Store part #
- C7463640
- Package / case
- SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7463640
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.79 | ₹143.95 |
| 50+ | ₹22.54 | ₹1,127.00 |
| 150+ | ₹19.87 | ₹2,980.50 |
| 500+ | ₹16.52 | ₹8,260.00 |
| 3,000+ | ₹15.33 | ₹45,990.00 |
| 6,000+ | ₹14.45 | ₹86,700.00 |
5 × ₹28.79
₹143.95
excl. GST
₹169.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1563EDH-T1-GE3-VB
₹143.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.28A;2.8A
- Pd - Power Dissipation
- 1.24W;1.1W
- RDS(on)
- 90mΩ@4.5V;155mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 1.25nC@4.5V;1.2nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 450mV
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
Applications
- Load switch for portable devices
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET: 1.8 V rated, thermally enhanced SC-70 package
- Fast switching
- Compliant with RoHS Directive 2002/95/EC
