TECH PUBLICDatasheet (PDF)

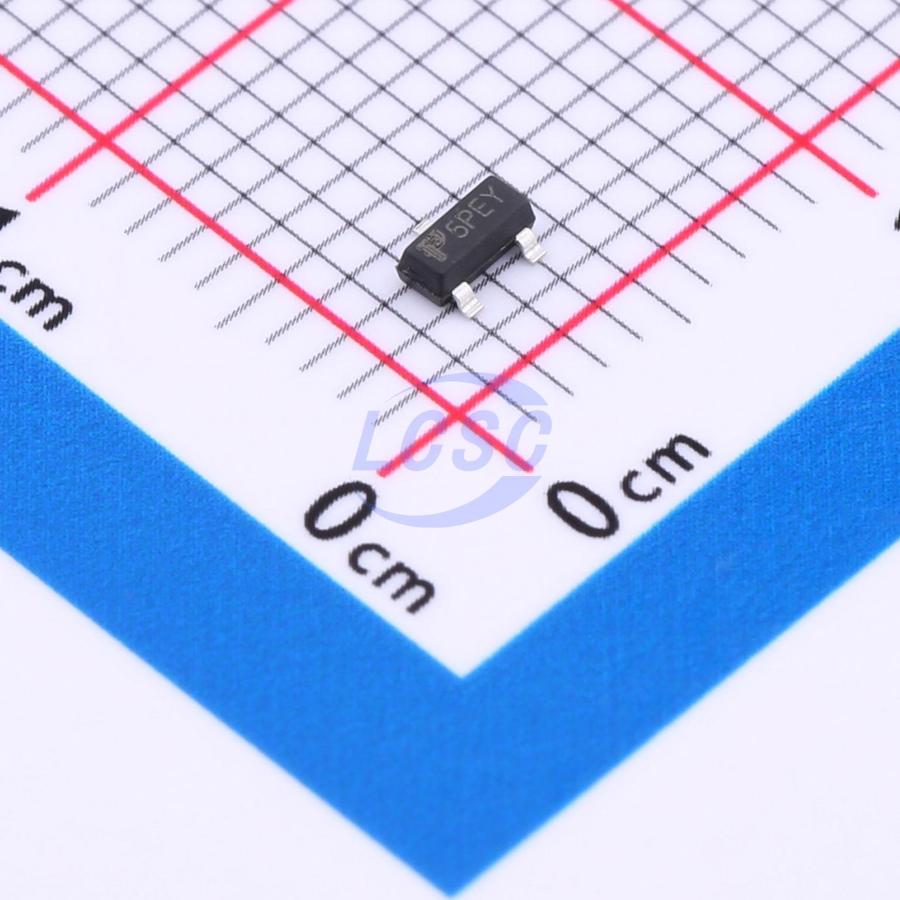

SI2305ADS
20V 4.1A 1.7W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 4.1A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SI2305ADS
- Store part #
- C5182096
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,370 in stock
#C5182096
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.15 | ₹55.75 |
| 50+ | ₹8.85 | ₹442.50 |
| 150+ | ₹7.70 | ₹1,155.00 |
| 500+ | ₹6.84 | ₹3,420.00 |
| 3,000+ | ₹5.86 | ₹17,580.00 |
| 6,000+ | ₹5.52 | ₹33,120.00 |
5 × ₹11.15
₹55.75
excl. GST
₹65.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2305ADS
₹55.75 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 740pF
- Pd - Power Dissipation
- 1.7W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4.1A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 39mΩ@4.5V;58mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.8nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
SVT20240NT(P7)(S) is an N-channel enhancement-mode power MOSFET fabricated using Silan's LVMOST technology. The improved process and cell structure are specially designed to minimize on-resistance while delivering superior switching performance. This device is widely used in power management applications for UPS and inverter systems.
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- Advanced Trench Technology
- Excellent RDs(on) and Low Gate Charge
- Lead free product is acquired
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP2120U#C5122017TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,340 | ₹11.74 · 2,340 in stock | View |
 | TPM9305PS3-3#C5122064TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,000 | ₹6.05 · 1,000 in stock | View |
 | IRLML6402TRPBF-TP#C52205420TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,280 | ₹5.42 · 3,280 in stock | View |
 | TPSTR2P3LLH6#C5246394TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,380 | ₹10.09 · 1,380 in stock | View |
 | SI2323DS#C5182044TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 68,135 | ₹8.44 · 68,135 in stock | View |
