VISHAYDatasheet (PDF)

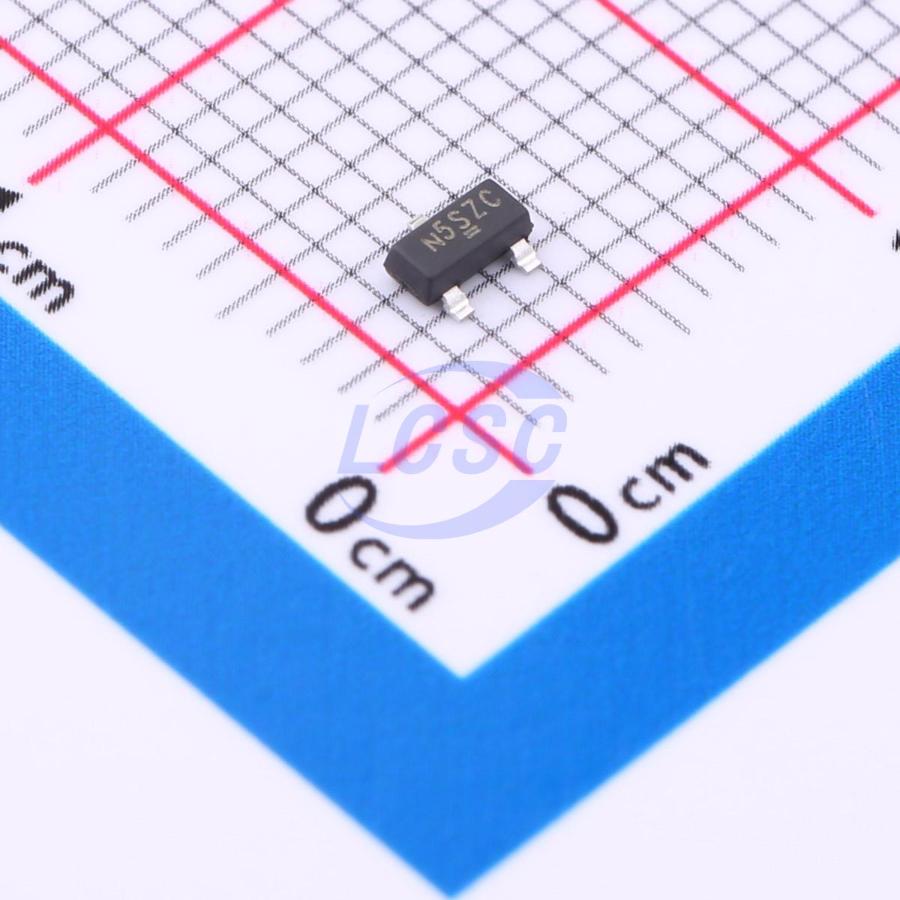

SI2305CDS-T1-GE3
P-Channel 8V 5.8A 1.7W Surface Mount SOT-23-3(TO-236-3)
SOT-23-3(TO-236-3)ROHS CompliantSold out at source
MOSFET P-CH 8V 5.8A SOT-23-3(TO-236-3)
- Manufacturer
- VISHAY
- Manufacturer part #
- SI2305CDS-T1-GE3
- Store part #
- C3290066
- Package / case
- SOT-23-3(TO-236-3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C3290066
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.63 | ₹125.63 |
| 10+ | ₹102.36 | ₹1,023.60 |
| 30+ | ₹90.82 | ₹2,724.60 |
| 100+ | ₹79.30 | ₹7,930.00 |
| 500+ | ₹72.29 | ₹36,145.00 |
| 1,000+ | ₹68.80 | ₹68,800.00 |
1 × ₹125.63
₹125.63
excl. GST
₹148.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2305CDS-T1-GE3
₹125.63 for 1 + GST
Specifications
- Drain to Source Voltage
- 8V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 5.8A
- Ciss-Input Capacitance
- 96pF
- Pd - Power Dissipation
- 1.7W
- Reverse Transfer Capacitance (Crss)
- 300pF
- RDS(on)
- 65mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 30nC@8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Applications
- Load Switch for Portable Devices
- DC/DC Converter
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT
- HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2305CDS-T1-GE3#C37577VISHAY · SOT-23 | VISHAY | SOT-23 | 12,390 | ₹19.25 · 12,390 in stock | View |
 | FSS2305#C2926136FOSAN · SOT-23-3L | FOSAN | SOT-23-3L | 39,500 | ₹3.35 · 39,500 in stock | View |
 | FS2305#C2936838FOSAN · SOT-23-3L | FOSAN | SOT-23-3L | 6,020 | ₹5.33 · 6,020 in stock | View |
 | SI2305CDS#C5182095TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 16,105 | ₹13.55 · 16,105 in stock | View |
 | TPM20P7S3L#C5189719TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,025 | ₹19.81 · 1,025 in stock | View |
