VBsemi ElecDatasheet (PDF)

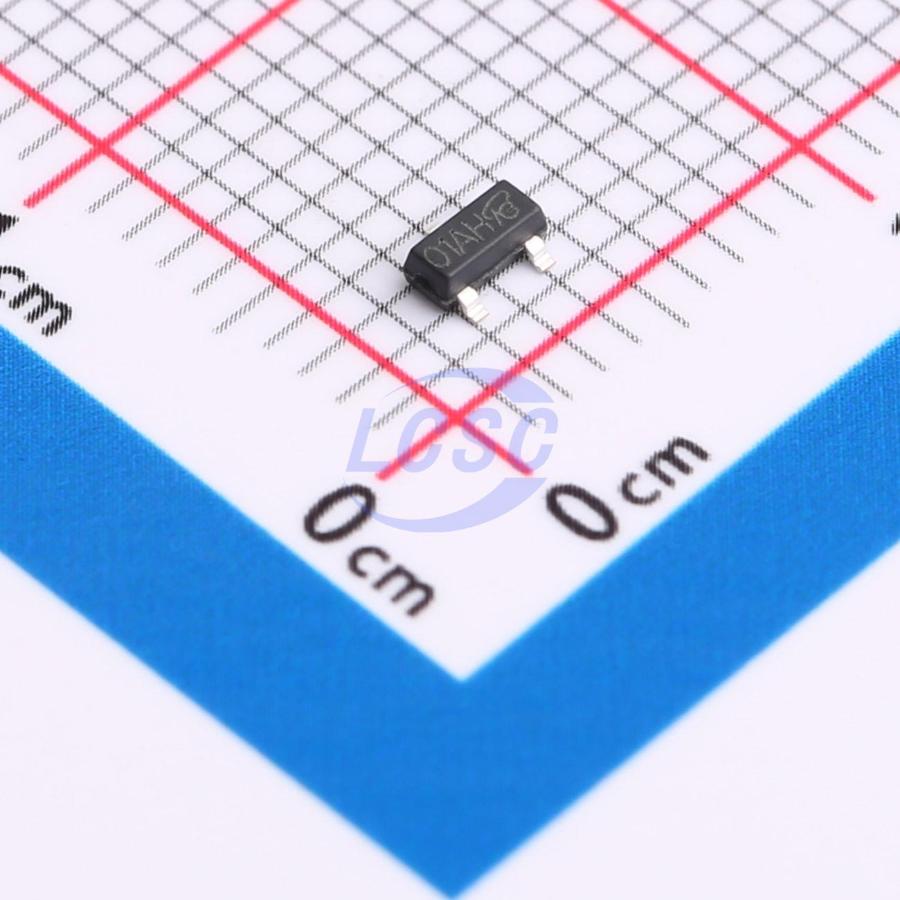

SI2351DS-T1-GE3-VB
P-Channel 20V 4A 2.5W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI2351DS-T1-GE3-VB
- Store part #
- C5456591
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5456591
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.55 | ₹95.50 |
| 100+ | ₹7.69 | ₹769.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹5.68 | ₹17,040.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.55
₹95.50
excl. GST
₹112.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2351DS-T1-GE3-VB
₹95.50 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
Applications
- Load switch
- Power amplifier (PA) switch
- DC/DC converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPP3413S23RG-VB#C18212595VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.10 · 100 in stock | View |
 | AP2301GN-HF-VB#C19632087VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 5 | ₹10.12 · 5 in stock | View |
 | AO3435A-VB#C20417488VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹9.00 · 30 in stock | View |
 | ME2305A-VB#C20417677VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹9.00 · 30 in stock | View |
 | AO3435-VB#C20626275VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹8.64 · 100 in stock | View |
