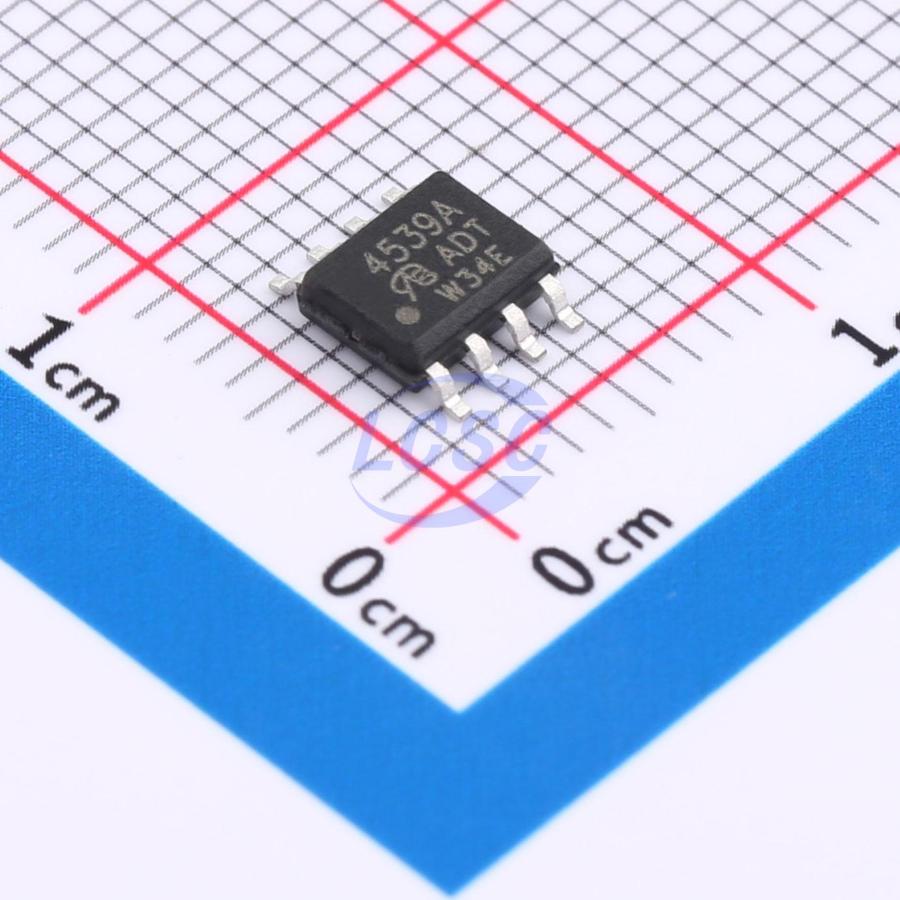

SI4539ADY-T1-GE3-VB
N-Channel+P-Channel Array 30V Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET N-CH+P-CH ARR 30V SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4539ADY-T1-GE3-VB
- Store part #
- C7568767
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C7568767
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.70 | ₹62.70 |
| 10+ | ₹51.39 | ₹513.90 |
| 30+ | ₹46.37 | ₹1,391.10 |
| 100+ | ₹40.50 | ₹4,050.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹62.70
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4539ADY-T1-GE3-VB
₹62.70 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8A
- Output Capacitance(Coss)
- 95pF;115pF
- Ciss-Input Capacitance
- 510pF;620pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 33pF;57pF
- RDS(on)
- 15mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6nC@10V;41.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
Applications
- Motor Drive - Power Bank
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
