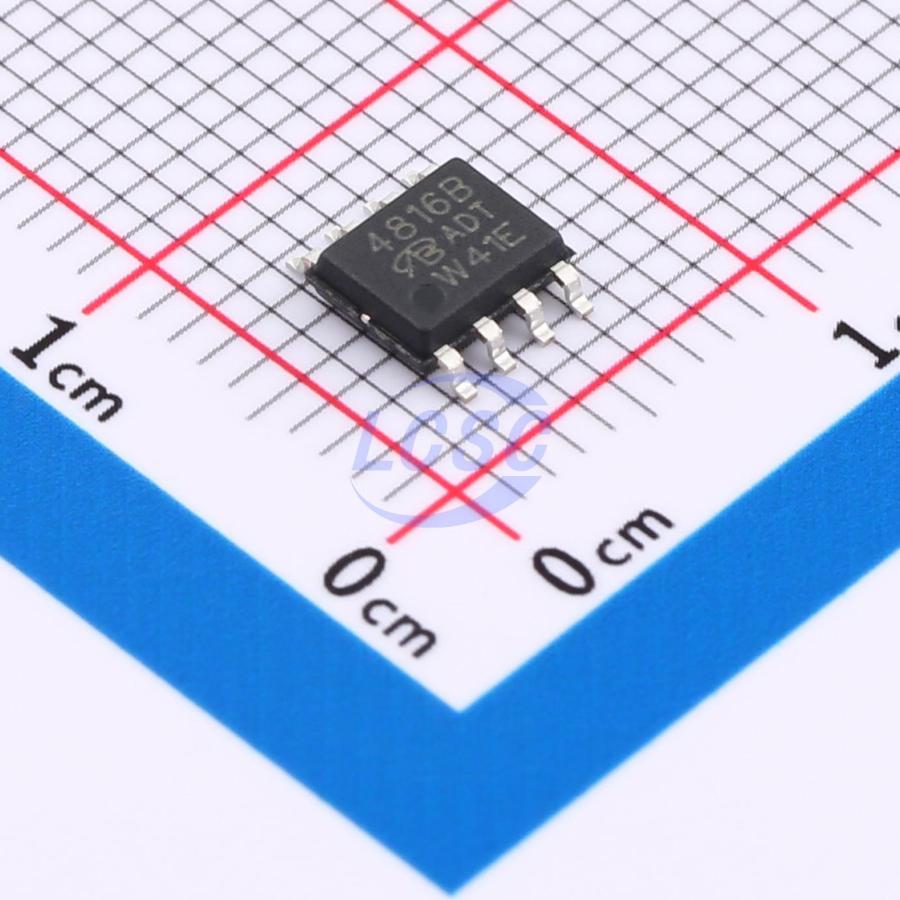

SI4816BDY-T1-GE3-VB
N-Channel Array 30V 15A 1.98W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 30V 15A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4816BDY-T1-GE3-VB
- Store part #
- C41413775
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C41413775
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.88 | ₹76.88 |
| 10+ | ₹61.35 | ₹613.50 |
| 30+ | ₹54.63 | ₹1,638.90 |
| 100+ | ₹46.42 | ₹4,642.00 |
| 500+ | ₹38.23 | ₹19,115.00 |
| 1,000+ | ₹36.13 | ₹36,130.00 |
1 × ₹76.88
₹76.88
excl. GST
₹90.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4816BDY-T1-GE3-VB
₹76.88 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Configuration
- Half-Bridge
- Output Capacitance(Coss)
- 2.29nF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 1.535nF
- Pd - Power Dissipation
- 1.98W
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 21mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 59nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
Applications
- Notebook Logic dc-to-dc
- Low Current dc-to-dc
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HAT2092RJ-VB#C20417665VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹75.62 · 50 in stock | View |
 | SI4618DY-T1-E3-VB#C22388966VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹72.47 · 15 in stock | View |
 | EMB17A03G-VB#C22389282VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹72.47 · 15 in stock | View |
 | FDS6982-NL-VB#C22389289VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 17 | ₹72.47 · 17 in stock | View |
 | SQ4282EY-T1-GE3-VB#C29779042VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 11 | ₹72.47 · 11 in stock | View |
