VBsemi ElecDatasheet (PDF)

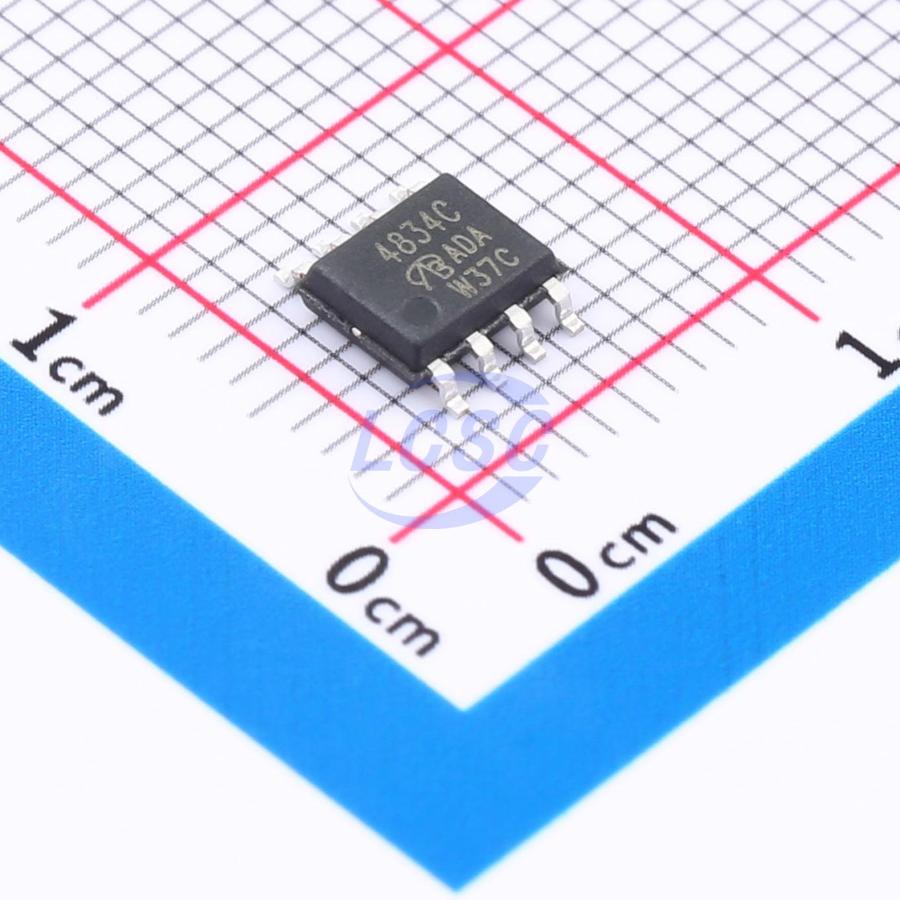

SI4834CDY-T1-GE3-VB
N-Channel Array 30V 8.5A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 30V 8.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4834CDY-T1-GE3-VB
- Store part #
- C19632155
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C19632155
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.93 | ₹52.93 |
| 10+ | ₹42.02 | ₹420.20 |
| 30+ | ₹37.40 | ₹1,122.00 |
| 100+ | ₹31.51 | ₹3,151.00 |
| 500+ | ₹29.00 | ₹14,500.00 |
| 1,000+ | ₹27.32 | ₹27,320.00 |
1 × ₹52.93
₹52.93
excl. GST
₹62.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4834CDY-T1-GE3-VB
₹52.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 8.5A
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 86pF
- RDS(on)
- 16mΩ@10V;20mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 14.5nC@10V;7.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- Notebook system power supply
- Low current DC/DC
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7626TRPBF-VB#C20755669VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹52.93 · 50 in stock | View |
 | FDS6984S-NL-VB#C29778973VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹50.84 · 20 in stock | View |
 | IRF6372TRPBF-VB#C19188090VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹51.89 · 20 in stock | View |
 | AM4910N-T1-PF-VB#C19190098VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹52.93 · 50 in stock | View |
 | 150N03-VB#C20417590VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹50.84 · 50 in stock | View |
