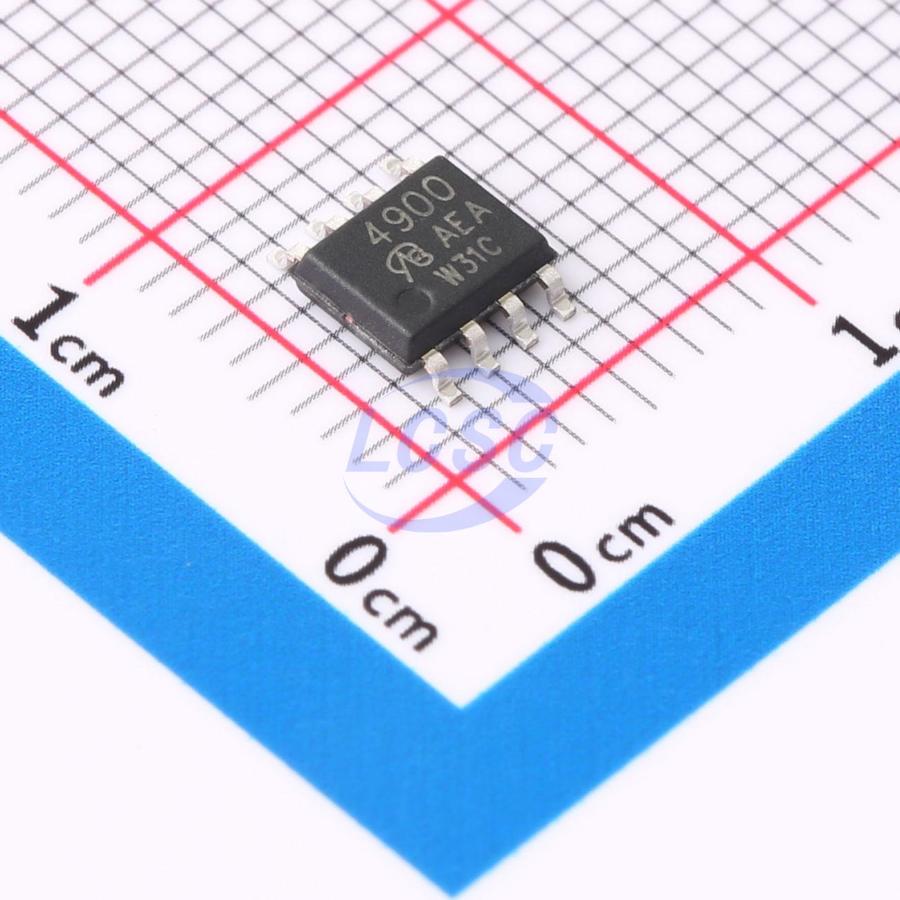

SI4900DY-T1-E3-VB
N-Channel Array 60V 7A Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET N-CH ARR 60V 7A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI4900DY-T1-E3-VB
- Store part #
- C7568914
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43 in stock
#C7568914
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.43 | ₹91.43 |
| 10+ | ₹76.20 | ₹762.00 |
| 30+ | ₹68.58 | ₹2,057.40 |
| 100+ | ₹60.96 | ₹6,096.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹91.43
₹91.43
excl. GST
₹107.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SI4900DY-T1-E3-VB
₹91.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 7A
- Output Capacitance(Coss)
- 110pF
- Ciss-Input Capacitance
- 600pF
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 27mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 11.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
Key features
- Trench Power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
