VISHAYDatasheet (PDF)

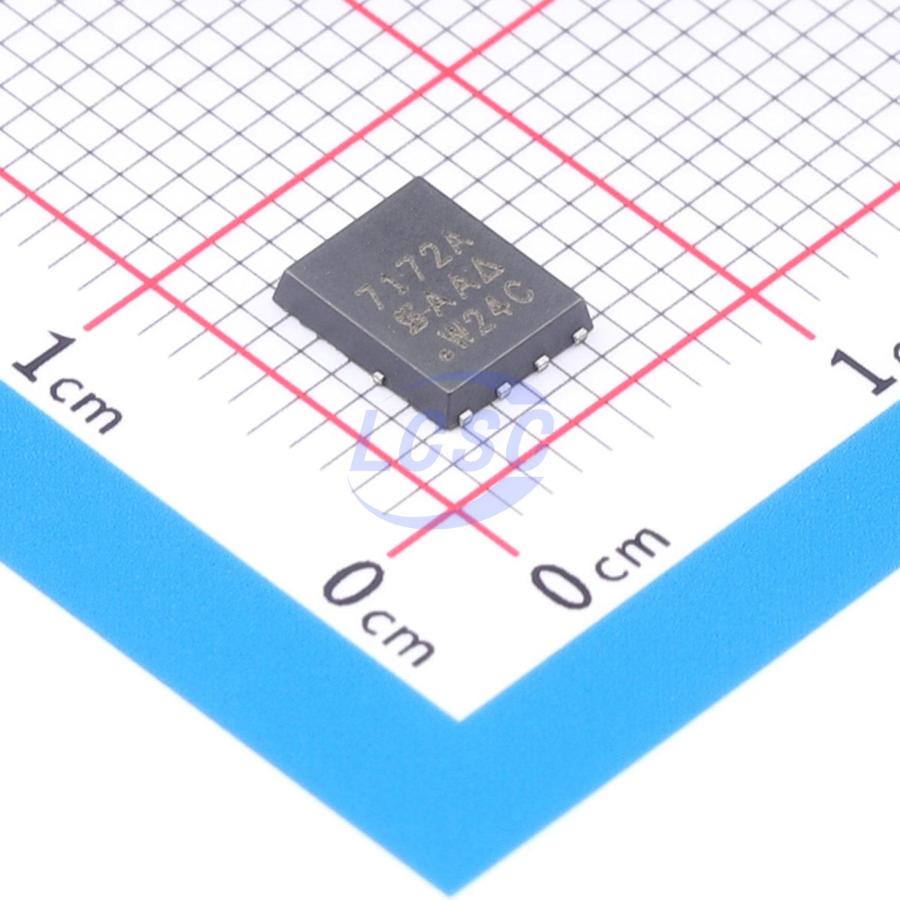

SI7172ADP-T1-RE3
200V 17.2A 80mΩ@7.5V 1 N-channel N-Channel PowerPAK-SO-8 Single FETs, MOSFETs RoHS
PowerPAK-SO-8ROHS3 CompliantActive
N-Channel, Current:17.2A, Voltage:200V
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7172ADP-T1-RE3
- Store part #
- C3289461
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
364 in stock
#C3289461
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹189.61 | ₹189.61 |
| 10+ | ₹159.90 | ₹1,599.00 |
| 30+ | ₹143.62 | ₹4,308.60 |
| 100+ | ₹125.18 | ₹12,518.00 |
| 500+ | ₹117.15 | ₹58,575.00 |
| 1,000+ | ₹113.47 | ₹1,13,470.00 |
1 × ₹189.61
₹189.61
excl. GST
₹223.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7172ADP-T1-RE3
₹189.61 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 100pF
- Current - Continuous Drain(Id)
- 17.2A
- Ciss-Input Capacitance
- 1.11nF
- Reverse Transfer Capacitance (Crss)
- 8.3pF
- RDS(on)
- 80mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.144 g
Overview
Applications
- Fixed Telecommunications
- DC/DC Converters
- Primary and Secondary Side Switching
- Synchronous Rectification
Key features
- ThunderFET technology optimizes the balance of R\textDS(on), Qg, Qsw, and Qoss
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMS2672#C10881onsemi · Power56-8 | onsemi | Power56-8 | 9 | ₹999.09 · 9 in stock | View |
 | BSC320N20NS3G#C501501Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 1,233 | ₹226.56 · 1,233 in stock | View |
 | XRS30N20F#C53454482XNRUSEMI · PDFN-8L(5x6) | XNRUSEMI | PDFN-8L(5x6) | 3,152 | ₹38.90 · 3,152 in stock | View |
 | BSC900N20NS3 G-VB#C20417584VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 27 | ₹311.14 · 27 in stock | View |
 | BSC12DN20NS3 G-VB#C7525059VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 50 | ₹276.04 · 50 in stock | View |
