VISHAYDatasheet (PDF)

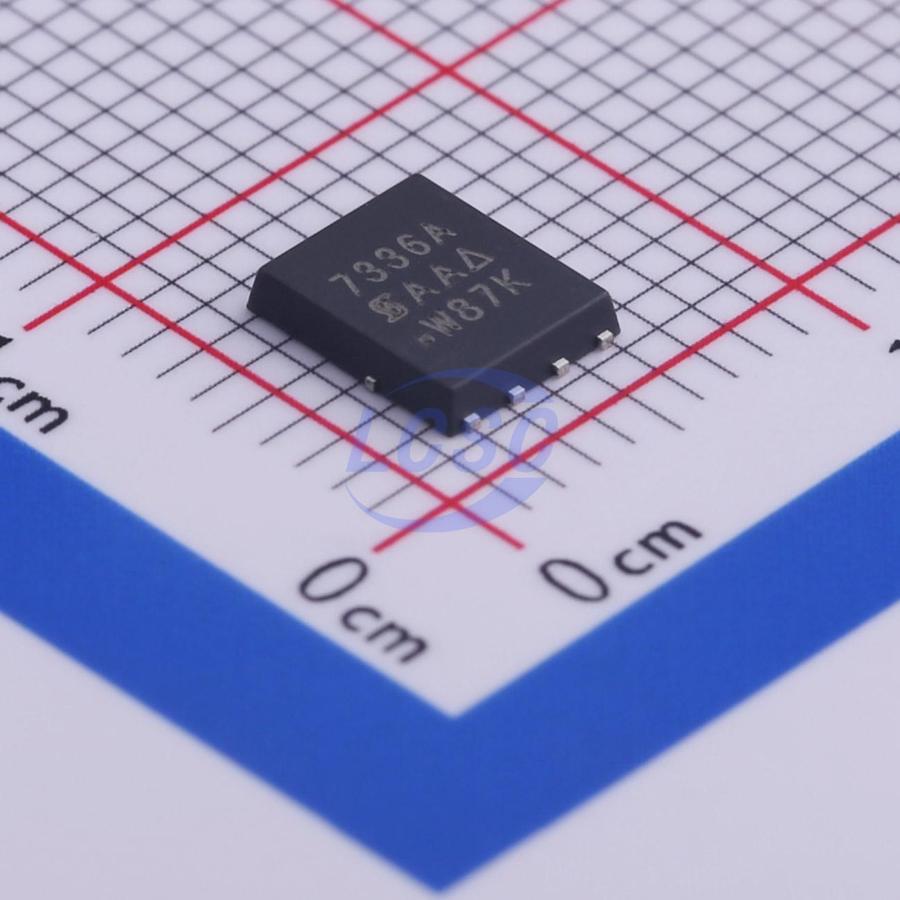

SI7336ADP-T1-E3
N-Channel 30V 30A 5.4W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 30V 30A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7336ADP-T1-E3
- Store part #
- C469326
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C469326
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.27 | ₹157.27 |
| 10+ | ₹130.70 | ₹1,307.00 |
| 30+ | ₹116.04 | ₹3,481.20 |
| 100+ | ₹99.67 | ₹9,967.00 |
| 500+ | ₹92.24 | ₹46,120.00 |
| 1,000+ | ₹88.84 | ₹88,840.00 |
1 × ₹157.27
₹157.27
excl. GST
₹185.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7336ADP-T1-E3
₹157.27 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 860pF
- Ciss-Input Capacitance
- 5.6nF
- Pd - Power Dissipation
- 5.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 415pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@15V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.247 g
Overview
Applications
- Low-Side DC/DC Conversion
- Notebook
- Server
- Workstation
Key features
- Halogen-free available
- Ultra-Low On-Resistance Using High Density TrenchFET Gen II Power MOSFET Technology
- Qg Optimized
- New Low Thermal Resistance PowerPAK Package with Low 1.07 mm Profile
- 100 % Rg Tested
- 100 % UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7880ADP-T1-E3#C469467VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 2 | ₹850.38 · 2 in stock | View |
 | SI7336ADP-T1-GE3#C144968VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 50 | ₹857.05 · 50 in stock | View |
 | CMSA150N03#C5203824Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 11 | ₹53.83 · 11 in stock | View |
 | SIR164DP-T1-GE3#C6816924VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 48 | ₹186.15 · 48 in stock | View |
 | ME7170-G#C709757MATSUKI · DFN-8-EP(6.1x5.2) | MATSUKI | DFN-8-EP(6.1x5.2) | 10 | ₹51.73 · 10 in stock | View |
