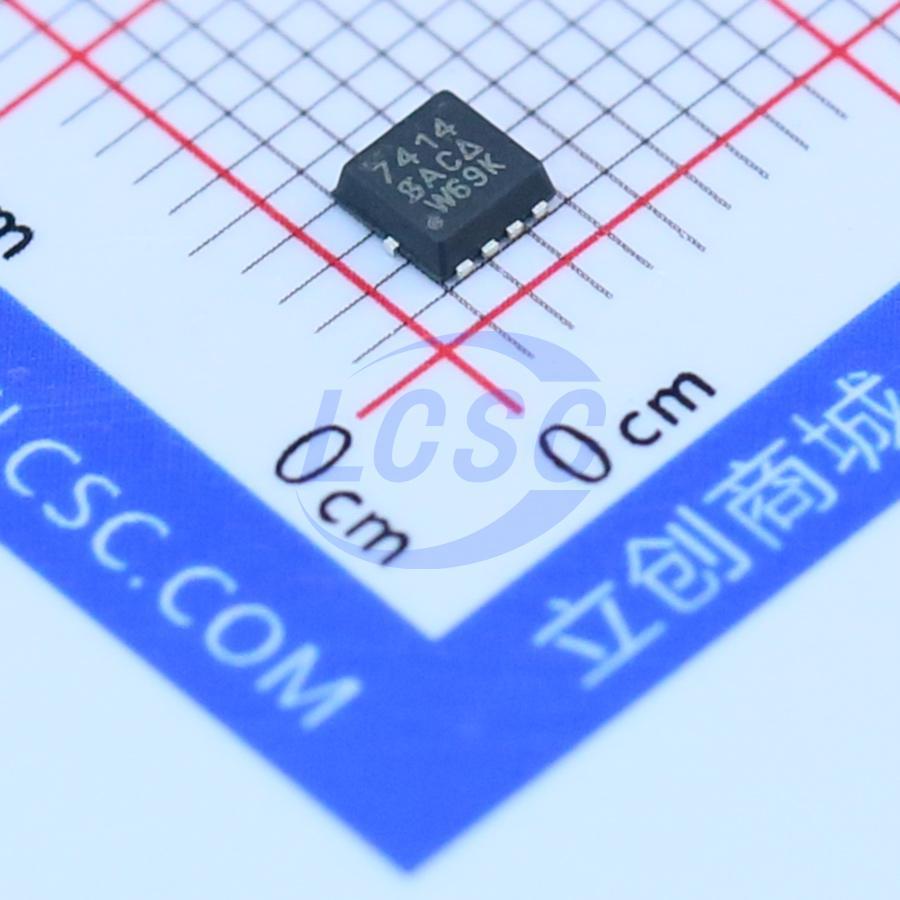

VISHAYDatasheet (PDF)
SI7414DN-T1-E3
N-Channel 60V 8.7A 3.8W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantDiscontinued
MOSFET N-CH 60V 8.7A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7414DN-T1-E3
- Store part #
- C73659
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C73659
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹240.15 | ₹240.15 |
| 10+ | ₹202.50 | ₹2,025.00 |
| 30+ | ₹179.04 | ₹5,371.20 |
| 100+ | ₹155.16 | ₹15,516.00 |
| 500+ | ₹144.18 | ₹72,090.00 |
| 1,000+ | ₹139.44 | ₹1,39,440.00 |
1 × ₹240.15
₹240.15
excl. GST
₹283.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7414DN-T1-E3
₹240.15 for 1 + GST
Specifications
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 3.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 8.7A
- Reverse Transfer Capacitance (Crss)
- 440pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
Overview
Applications
- Primary-side switch
- Synchronous rectifier
- Motor drive
Key features
- Halogen-free per IEC 61249-2-21
- TrenchFET power MOSFET
- Optimized for PWM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7414DN-TP#C49230905TECH PUBLIC · PDFN-8(3x3) | TECH PUBLIC | PDFN-8(3x3) | 215 | ₹32.60 · 215 in stock | View |
 | CMSC130N10#C45385349Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 450 | ₹34.48 · 450 in stock | View |
 | SI7414DN-T1-GE3#C143751VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 61 | ₹213.82 · 61 in stock | View |
 | DMN6069SFG-7#C326514DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 1,041 | ₹61.27 · 1,041 in stock | View |
 | SIS890DN-T1-GE3#C59572VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 95 | ₹308.76 · 95 in stock | View |
