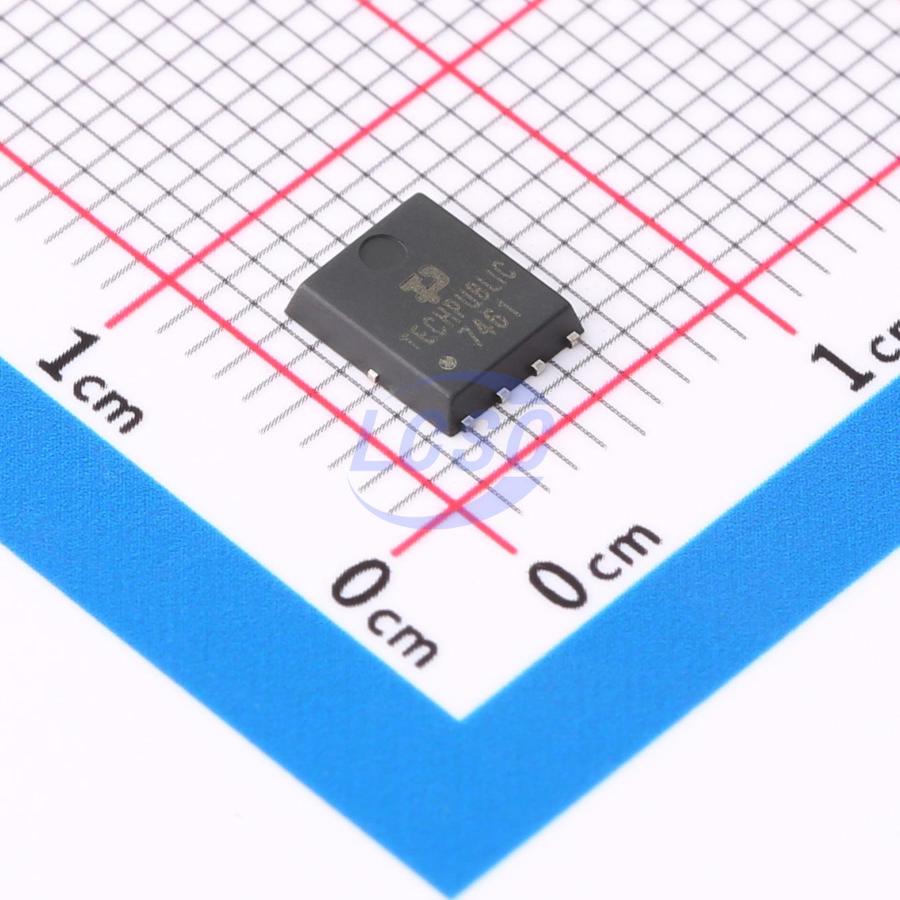

SI7461DP
60V 8.6A 1.8W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8RoHSActive
MOSFET 60V 8.6A PowerPAK-SO-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SI7461DP
- Store part #
- C7472880
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,553 in stock
#C7472880
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.11 | ₹157.11 |
| 10+ | ₹131.22 | ₹1,312.20 |
| 30+ | ₹117.07 | ₹3,512.10 |
| 100+ | ₹100.97 | ₹10,097.00 |
| 500+ | ₹93.79 | ₹46,895.00 |
| 1,000+ | ₹90.52 | ₹90,520.00 |
1 × ₹157.11
₹157.11
excl. GST
₹185.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SI7461DP
₹157.11 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 8.6A
- Ciss-Input Capacitance
- 4.765nF
- Pd - Power Dissipation
- 1.8W
- Reverse Transfer Capacitance (Crss)
- 234pF
- RDS(on)
- 20mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 44.6nC
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
Applications
- Laptop power management
- DC/DC converters
- Load switches
- LCD monitor inverters
Key features
- Ultra-high density cell design for extremely low on-resistance RDS(ON)
- Excellent on-resistance and maximum DC current carrying capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP6050SPS-TP#C48886783TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 395 | ₹30.94 · 395 in stock | View |
 | SI7465DP-TP#C48886796TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 375 | ₹60.39 · 375 in stock | View |
 | TPM6026PD56#C48886835TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 220 | ₹38.39 · 220 in stock | View |
 | TPM6060PD56#C7472879TECH PUBLIC · PDFN5X6-8L | TECH PUBLIC | PDFN5X6-8L | 858 | ₹115.11 · 858 in stock | View |
 | TPSTL42P6LLF6#C7472881TECH PUBLIC · PDFN5X6-8 | TECH PUBLIC | PDFN5X6-8 | 118 | ₹155.88 · 118 in stock | View |
