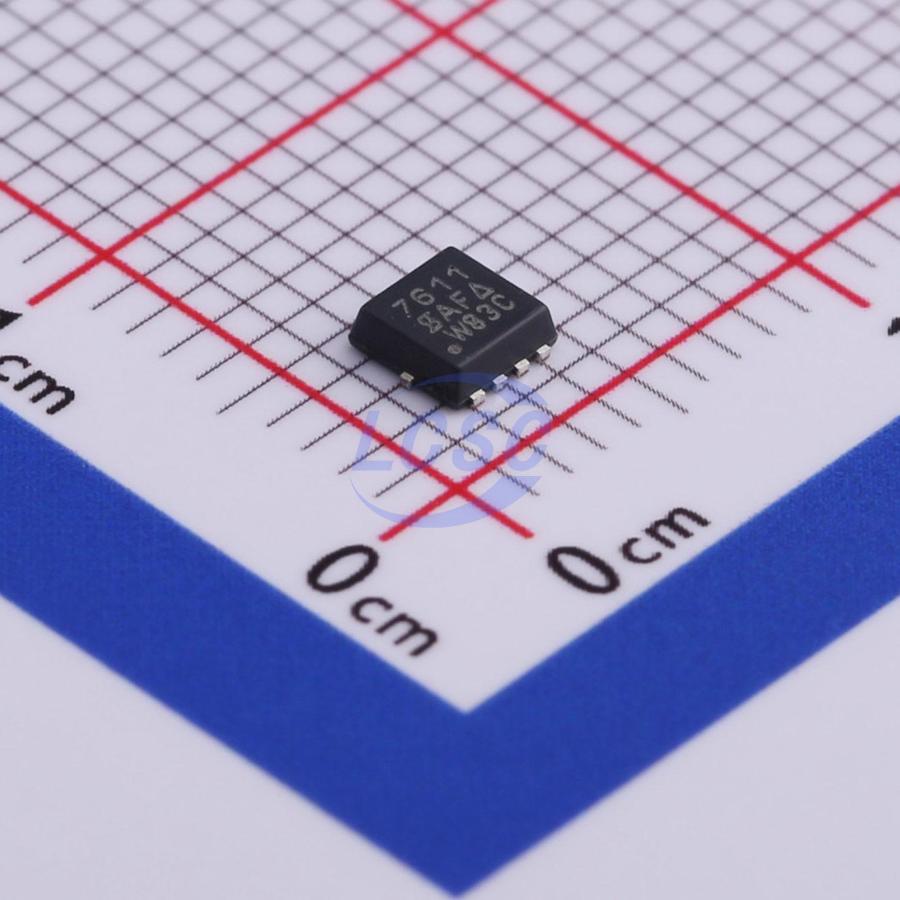

SI7611DN-T1-GE3
3.7W 40V 9.3A 25mΩ@10V 1 P-Channel P-Channel PowerPAK1212-8 Single FETs, MOSFETs RoHS
PowerPAK1212-8ROHS3 CompliantActive
MOSFET P-CH 40V 9.3A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7611DN-T1-GE3
- Store part #
- C506599
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C506599
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹345.62 | ₹345.62 |
| 10+ | ₹305.86 | ₹3,058.60 |
| 30+ | ₹280.93 | ₹8,427.90 |
| 100+ | ₹255.35 | ₹25,535.00 |
| 500+ | ₹243.75 | ₹1,21,875.00 |
| 1,000+ | ₹238.80 | ₹2,38,800.00 |
1 × ₹345.62
₹345.62
excl. GST
₹407.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7611DN-T1-GE3
₹345.62 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 215pF
- Ciss-Input Capacitance
- 1.98nF
- Pd - Power Dissipation
- 3.7W
- Operating Temperature
- -50℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 9.3A
- Reverse Transfer Capacitance (Crss)
- 175pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 41nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
Overview
P-Channel 40 V (D-S) MOSFET, TrenchFET power MOSFET in a low thermal resistance PowerPAK 1212-8 package with a small footprint and low profile of 1.07 mm. The PowerPAK 1212-8 is a derivative of the PowerPAK SO-8, utilizing the same packaging technology to maximize die area. The exposed die attach pad on the bottom provides a direct low-resistance thermal path to the mounting substrate, delivering thermal performance on par with the PowerPAK SO-8. Its footprint is comparable to TSOP-6, more than 40% smaller than standard TSSOP-8, with more than twice the die capacity of standard TSOP-6. Thermal performance is an order of magnitude better than SO-8 and 20× better than TSSOP-8. It can leverage the heat dissipation capability of any PCB and improves die efficiency by approximately 20% compared to TSSOP-8. Single and dual PowerPAK 1212-8 share the same pinout as single and dual PowerPAK SO-8, and the low 1.05 mm profile makes it suitable for space-constrained applications.
Applications
- Load Switch
Key features
- TrenchFET power MOSFET
- Low thermal resistance PowerPAK package, compact size with low profile of 1.07 mm
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LWP4020AD3#C54740937Lewa Micro · PDFN-8L(3.3x3.3) | Lewa Micro | PDFN-8L(3.3x3.3) | 4,945 | ₹30.92 · 4,945 in stock | View |
 | SIS443DN-T1-GE3#C142539VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 8,465 | ₹181.86 · 8,465 in stock | View |
 | CMSC7341#C6939765Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 35 | ₹21.60 · 35 in stock | View |
 | NVTFWS014P04M8LTAG#C900554onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 1 | ₹132.26 · 1 in stock | View |
 | RQ3L070ATTB#C3288442ROHM · HSMT-8(3.2x3) | ROHM | HSMT-8(3.2x3) | 8 | ₹107.11 · 8 in stock | View |
