VISHAYDatasheet (PDF)

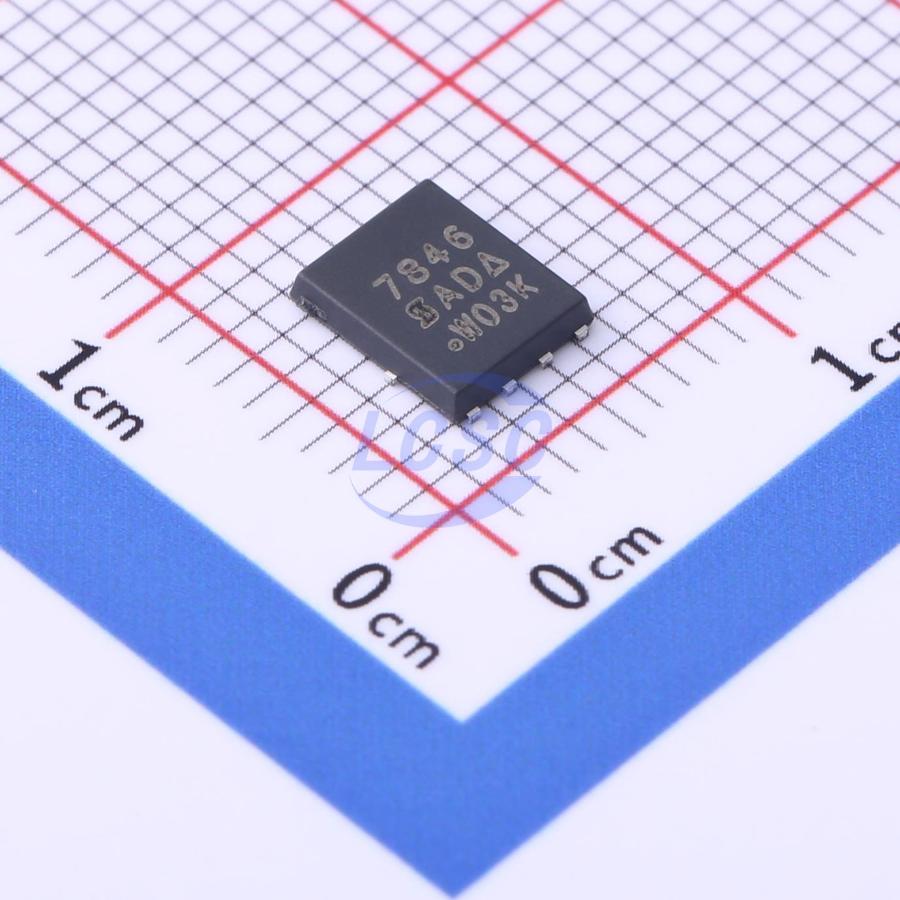

SI7846DP-T1-GE3
N-Channel 150V 6.7A 5.2W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 150V 6.7A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7846DP-T1-GE3
- Store part #
- C2838494
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C2838494
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹505.93 | ₹505.93 |
| 10+ | ₹428.69 | ₹4,286.90 |
| 30+ | ₹382.70 | ₹11,481.00 |
| 100+ | ₹336.49 | ₹33,649.00 |
| 500+ | ₹315.02 | ₹1,57,510.00 |
| 1,000+ | ₹305.26 | ₹3,05,260.00 |
1 × ₹505.93
₹505.93
excl. GST
₹597.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7846DP-T1-GE3
₹505.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 6.7A
- Pd - Power Dissipation
- 5.2W
- RDS(on)
- 50mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.244 g
Overview
WSD20L70DN is a high-performance trench P-channel MOSFET featuring ultra-high cell density, delivering excellent on-resistance (R<sub>DS(ON)</sub>) and gate charge for most synchronous buck converter applications. WSD20L70DN is RoHS-compliant and meets green product requirements, with 100% guaranteed avalanche energy capability (EAS) and full qualification reliability certification.
Applications
- Primary Side Switch for High Density DC/DC
- Telecom/Server 48 V DC/DC
- Industrial and 42 V Automotive
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFETS
- New Low Thermal Resistance PowerPAK Package with Low 1.07 mm Profile
- PWM Optimized for Fast Switching
- 100 % Rg Tested
- RoHS COMPLIANT HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA23N15A#C54842103HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | On request | ₹69.70 · 0 in stock | View |
 | DON30N20T#C48542686DOINGTER · DFN5x6-8 | DOINGTER | DFN5x6-8 | 853 | ₹57.56 · 853 in stock | View |
 | SI7738DP-T1-GE3#C145480VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 10 | ₹586.57 · 10 in stock | View |
 | BSC0402NS#C534331Infineon · TDSON-8-EP(5x6) | Infineon | TDSON-8-EP(5x6) | 50 | ₹311.09 · 50 in stock | View |
 | BSC520N15NS3G#C386368Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 1,199 | ₹128.89 · 1,199 in stock | View |
