VISHAYDatasheet (PDF)

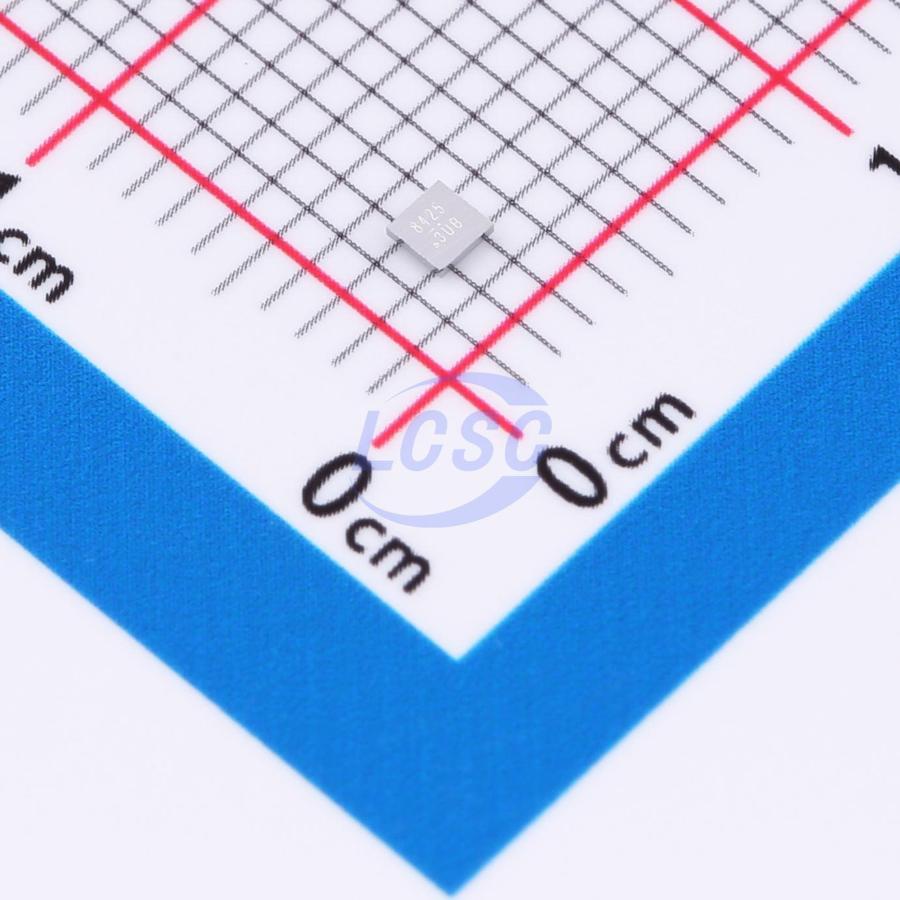

SI8425DB-T1-E1
P-Channel 20V 9.3A 1.1W Surface Mount WLCSP-4(1.6x1.6)
WLCSP-4(1.6x1.6)ROHS3 CompliantActive
MOSFET P-CH 20V 9.3A WLCSP-4(1.6x1.6)
- Manufacturer
- VISHAY
- Manufacturer part #
- SI8425DB-T1-E1
- Store part #
- C727420
- Package / case
- WLCSP-4(1.6x1.6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C727420
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.52 | ₹52.52 |
| 10+ | ₹51.29 | ₹512.90 |
| 30+ | ₹50.47 | ₹1,514.10 |
| 100+ | ₹49.65 | ₹4,965.00 |
1 × ₹52.52
₹52.52
excl. GST
₹61.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI8425DB-T1-E1
₹52.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 370pF
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 1.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 9.3A
- Reverse Transfer Capacitance (Crss)
- 305pF
- RDS(on)
- 23mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 36nC@4.5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 900mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
Overview
Vishay Siliconix’s MICRO FOOT product family is based on a wafer-level chip-scale packaging (WL-CSP) technology that implements a solder bump process to eliminate the need for an outer package to encase the silicon die. MICRO FOOT products include power MOSFETs, analog switches, and power ICs. For battery powered compact devices, this new packaging technology reduces board space requirements, improves thermal performance, and mitigates the parasitic effect typical of leaded packaged products. Vishay Siliconix MICRO FOOT products can be handled with the same process techniques used for high-volume assembly of packaged surface-mount devices. With proper attention to PCB and stencil design, the device will achieve reliable performance without underfill. The advantage of the device’s small footprint and short thermal path make it an ideal option for space-constrained applications in portable devices such as battery packs, PDAs, cellular phones, and notebook computers.
Applications
- Low on-resistance load switch, charger switch and battery switch for portable devices - Low power consumption - Increased battery life
Key features
- TrenchFET Power MOSFET
- Low-on resistance
- Ultra-small 1.6 mm x 1.6 mm maximum outline
- Ultra-thin 0.6 mm maximum height
