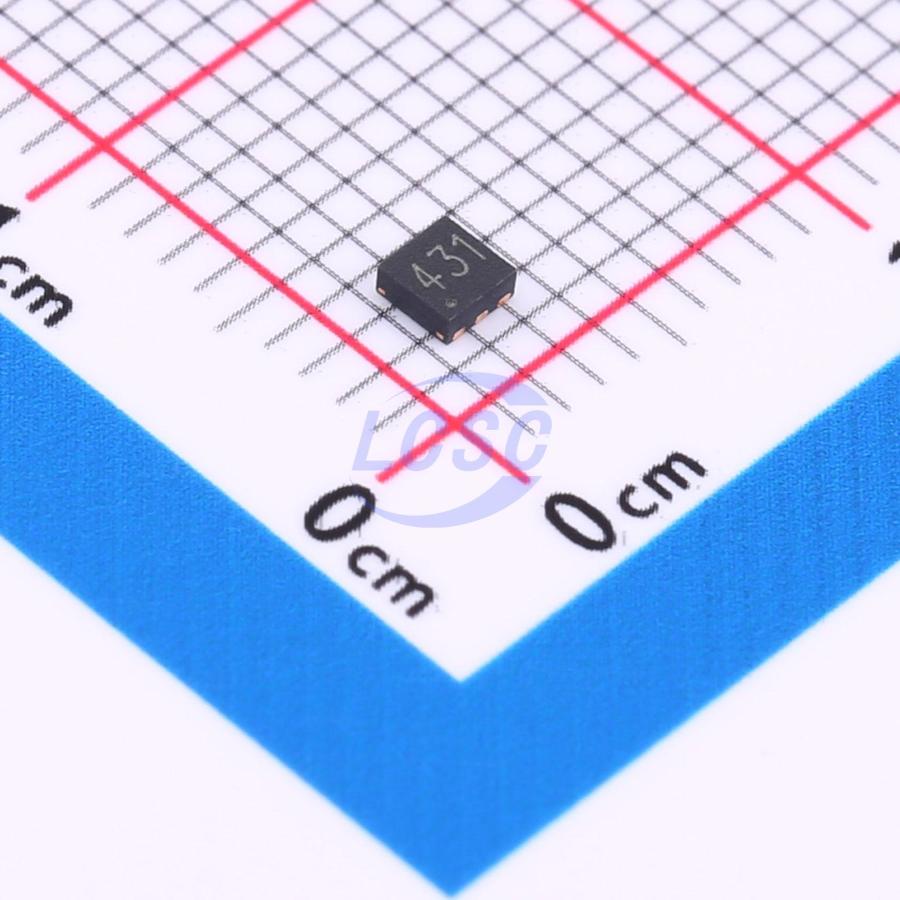

SIA431DJ-T1-GE3-VB
P-Channel 20V 10A 17W Surface Mount QFN-6L(2x2)
QFN-6L(2x2)RoHSActive
MOSFET P-CH 20V 10A QFN-6L(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIA431DJ-T1-GE3-VB
- Store part #
- C19711212
- Package / case
- QFN-6L(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C19711212
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.56 | ₹82.56 |
| 10+ | ₹66.39 | ₹663.90 |
| 30+ | ₹58.40 | ₹1,752.00 |
| 100+ | ₹50.42 | ₹5,042.00 |
| 500+ | ₹45.80 | ₹22,900.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹82.56
₹82.56
excl. GST
₹97.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIA431DJ-T1-GE3-VB
₹82.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 17W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38nC@8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
Applications
- Load switch, power amplifier switch, and battery switch for portable devices
Key features
- Trench power MOSFET
- Thermally enhanced DFN2X2 package
- Small footprint
- Low on-resistance
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIA429DJT-T1-GE3-VB#C19711283VBsemi Elec · QFN-6L(2x2) | VBsemi Elec | QFN-6L(2x2) | 2 | ₹82.56 · 2 in stock | View |
 | AON2409-VB#C709907VBsemi Elec · QFN-6(2x2) | VBsemi Elec | QFN-6(2x2) | 171 | ₹84.24 · 171 in stock | View |
 | SIA449DJ-T1-GE3-VB#C22395998VBsemi Elec · QFN-6(2x2) | VBsemi Elec | QFN-6(2x2) | On request | ₹82.56 · 0 in stock | View |
