VISHAYDatasheet (PDF)

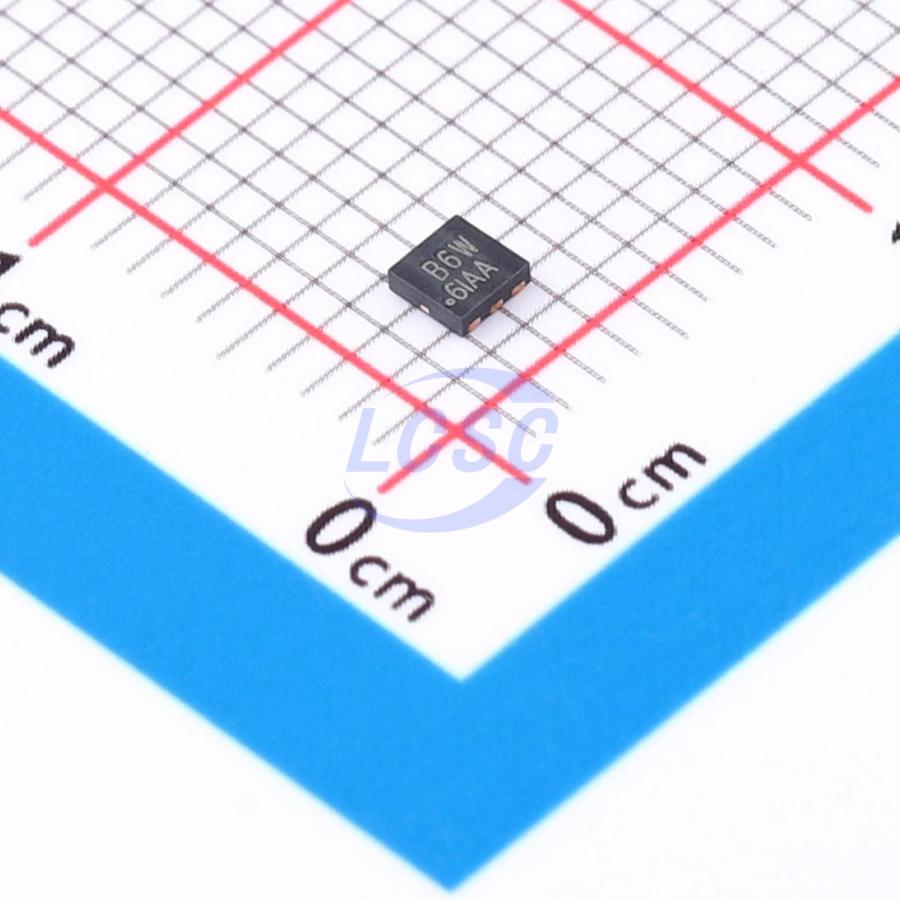

SIA445EDJT-T1-GE3
3.5W 20V 11.8A 16.7mΩ@4.5V 1 P-Channel P-Channel PowerPAK-SC-70-6L Single FETs, MOSFETs
PowerPAK-SC-70-6LRoHSActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SIA445EDJT-T1-GE3
- Store part #
- C727446
- Package / case
- PowerPAK-SC-70-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C727446
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.40 | ₹82.40 |
| 10+ | ₹66.79 | ₹667.90 |
| 30+ | ₹58.98 | ₹1,769.40 |
| 100+ | ₹51.17 | ₹5,117.00 |
| 500+ | ₹46.62 | ₹23,310.00 |
| 1,000+ | ₹44.02 | ₹44,020.00 |
1 × ₹82.40
₹82.40
excl. GST
₹97.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIA445EDJT-T1-GE3
₹82.40 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 275pF
- Ciss-Input Capacitance
- 2.18nF
- Pd - Power Dissipation
- 3.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 11.8A
- Reverse Transfer Capacitance (Crss)
- 261pF
- RDS(on)
- 16.7mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- Smartphones, tablets, mobile computing devices
- Battery switches
- Charger switches
- Load switches
Key features
- TrenchFET power MOSFET
- Thermally enhanced PowerPAK SC-70 package
- Small footprint
- Low on-resistance
- Ultra-thin, 0.6 mm height
- 100% Rg tested
- Integrated Zener diode ESD protection
- Typical ESD performance: 2000 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIA437DJ-T1-GE3#C727462VISHAY · PowerPAK-SC-70-6L | VISHAY | PowerPAK-SC-70-6L | 25 | ₹102.32 · 25 in stock | View |
| SIA449DJ-T1-GE3#C727325VISHAY · PowerPAK-SC-70-6L | VISHAY | PowerPAK-SC-70-6L | 1,785 | ₹49.35 · 1,785 in stock | View | |
| SIA465EDJ-T1-GE3#C727412VISHAY · PowerPAK-SC-70-6L | VISHAY | PowerPAK-SC-70-6L | On request | ₹23.88 · 0 in stock | View | |
